Gel Documentation Systems News

The Syngene InGenius 5 Gel Documentation System is a compact, high-performance imaging platform designed for laboratories requiring precise and reliable DNA, RNA and protein gel imaging. Developed for molecular biology, genomics and proteomics applications, the InGenius 5 combines advanced imaging technology with intuitive software to support accurate documentation and analysis in research, clinical and educational laboratories.
Featuring a sensitive 5MP CMOS camera, flexible lighting options and a compact benchtop footprint, the InGenius 5 provides laboratories with a dependable solution for routine gel documentation and fluorescence imaging workflows.

Features & Benefits
- Users High-resolution 5MP imaging system - Equipped with a sensitive 5MP CMOS camera and F/1.4 zoom lens, delivering clear, detailed images for DNA, RNA and protein gels.
- Flexible imaging compatibility - Supports a wide range of fluorescent dyes and stains, including Ethidium Bromide, SYBR® Safe and Coomassie Blue, making it suitable for diverse molecular biology workflows.
- Compact benchtop design - Offers a generous 20 × 24 cm viewing area within a small laboratory footprint, helping maximise valuable bench space.
- User-friendly image analysis software - Includes intuitive GeneSys image capture software and GeneTools analysis software for rapid image acquisition and quantitative data analysis.
- Optimised for stain-free applications - Designed for extended exposure imaging, making it ideal for stain-free gel workflows and sensitive fluorescence applications.

Introduction
Analytik Jena UVP ChemSolo Auto Gel Documentation System from WolfLabs.
The UVP ChemSolo Auto Imager is a cutting-edge bioimaging system designed for capturing fluorescent DNA and protein gels, chemiluminescent western blots, and colony counting. Integrated with VisionWorks® Software, it offers seamless image acquisition and analysis.

Features & Benefits:
- Epi-White & Epi-Blue LED Lights – Versatile lighting for various applications.
- Wide UV-Protected Front Door – Enhances safety by automatically switching off UV light when opened.
- UVP Elite UV Transilluminator – Provides a large imaging area (16 x 16 cm field of view).
- Modular Design – Supports accessories like the UVP Visi-Blue™ LED Transilluminator.
- VisionWorks® Software – Enables auto-focus, auto-exposure, 1D analysis, and automated colony classification.

Introduction
Analytik Jena UVP Gel Compact gel documentation systems from Wolflabs.
The UVP Gel Compact imager is an autonomous, independent, and smartphone-driven bioimaging system designed for the documentation and analysis for various types of samples which include but are not limited to DNA gels, protein gels, and colony plates, etc. The UVP Gel Compact allows users to capture images and analyse them via their personal mobile device equipped with Analytik Jena's VisionWorks Software App. The new VisionWorks application was generated for easy gel capture and analysis and allows for total control of the UVP Gel Compact darkroom

Features and benefits
- Unique feature of using your own smartphone to take images of your sample
- Overhead white and blue LED light, and UVP UV Transilluminator at 302 nm
- Four position automated emission filter tray with EtBr emission filter included
- Darkroom fully automated and controlled through smartphone via the VisionWorks mobile app
- A phone adapter/holder is included with each unit allowing for a range of phone sizes that work seamlessly with the UVP Gel Compact

Introduction
Analytik Jena UVP BioSpectrum Advanced gel documentation systems from Wolflabs.
The UVP BioSpectrum Advanced is an all in-one BioImaging system with in vivo imaging capabilities for sample documentation and analysis, including in vivo animal imaging, plant imaging, chemiluminescence, NIR, and fluorescence. This all-in-one system is perfect for any lab within research institutions, medical facilities, academic research institutions, pharmaceutical companies, amongst others.

Features and benefits
- Includes a 6.1MP fluorescence-focused sensor and a 1.05 MP fluorescence/ bioluminescence-focused sensor
- Fully loaded with overhead laser bars in blue, green, red, NIR, and violet (405 nm)
- 6-position automated filter wheel on a convenient slide-out tray; RFID-tagged filters for automatic software detection
- Powerful VisionWorks software allows flexibility of creating custom one-touch workflows or using preinstalled one-touch application templates

Introduction

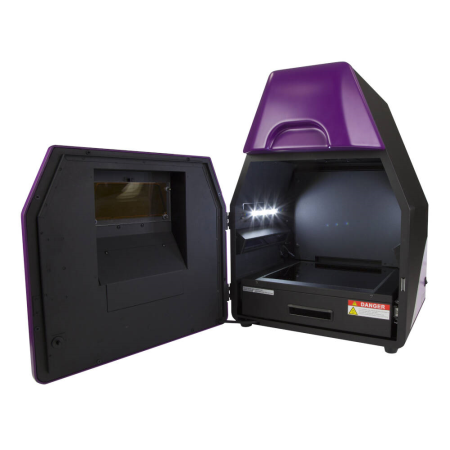

Cleaver Scientific omniDOC gel documentation system from Wolflabs.

Features and benefits
- Pre-focused 5 mega pixel monochrome camera and Slide-out 312nm transilluminator
- Interchangeable 4 position filter wheel with 620nm as standard
- Viewing pane with universal amber filter
- Simple image acquisition and analysis software guides the user through every step of the gel documentation process
- omniDOCs are constructed from corrosion resistant ABS for superior durability

Introduction
UVP/Analytik Jena UVP ChemStudio PLUS and UVP ChemStudio PLUS touch gel documentation systems from Wolflabs.

Features and benefits
- Numerous features for image enhancement and data analysis
- A large wide illuminated imaging area for simultaneous imaging of multiple gels and blots
- Images of the highest quality, with an 8 MP camera, deep cooling, and efficient photon-to-signal conversion
- Small footprint to maximize the use of laboratory bench space
- Integrated pull-down UV protection shield protects those doing prep work over the transilluminator

Wolflabs UVP :: Gel Documentation Systems – large update

We have added a large selection of Gel Documentations systems to the website, including DigiDoc-It, BioDoc-It, MultiDoc-It and more. There is a large selection for all your needs.

Wolflabs UVP :: Printer thermal digital Sony UP-D897 230V for Europe. Free of charge when purchased with a selected gel documentation system. OFFER ENDS - 2012-12-24

Thanks David,

Wolf’s bid was the best overall value for money for the quality of product we require – I found the quote extremely thorough with all the information clearly stated and of course the customer service and response to queries was great.

I very much appreciate you sending the appropriate packaging – this will ensure that we package the unit safely and correctly.

Best,

Customer

"My colleague recently placed an order with you for a gel documentation system, you’ll be pleased to know that this arrived on site safely this week and we are looking forward to installing in January and getting rid of the antique we have been using for the past decade.

All in all, excellent customer and technical support from Wolf labs as usual!

Merry Christmas to all"

Hi Nicola,

Re feedback on the equipment purchased from you,

5* for the product quality, it does everything we need. Has been totally reliable despite heavy usage.

5* for customer service. From the enquiry through to post delivery customer care Wolf have been excellent.

Merry Christmas,

Discounts of around 25% on the UVP range - http://www.wolflabs.co.uk/laboratory-equipment/gel-documentation-systems

New BioDoc-It2, ChemiDoc-It TS3 and GelDoc-It TS3 series gel documentation systems from UVP have been added.

Introduction
The GelDoc-Ite Imaging System is designed for easy, efficient and economical gel documentation! VisionWorks software loads on your computer and is easy to operate with straightforward image capture and quantitative analysis capabilities. High quality images are quickly captured with the scientific-grade CCD camera. The new, compact system reduces lab bench space requirements and is plug-and-play for quick set up and operation.

Features and benefits
- Illuminate the gels: Stained gels illuminate clearly on the UV transilluminator which is easily accessible via the darkroom's wide access front door and two easy-access side doors.
- View and capture the gels: Gels can be viewed through the unique viewing window and captured with the click of a button from the easy-to-use VisionWorks® software interface.
- Analyze the gels: Quantitative 1D analysis is easily generated with VisionWorks software's integrated image analysis tools.
- Compact design: The compact darkroom and integrated UV transilluminator create a simple, space-saving package.
- Move or cut gels: Side doors enable access for excision or repositioning of gels.
- Emission Filter: A broadband emission filter (included) achieves enhanced signal detection. The slide-out filter tray is conveniently located under the camera for placement of filters. Easily exchange filters to support numerous applications. UVP?offers a wide range of filter choices; contact UVP?for further information.
- Transilluminator: The transilluminator features a large 21x26cm filter area; single or multiple UV wavelengths are available.

Introduction
UVP PhotoDoc-It gel documentation system from Wolflabs. Compact system combines a digital colour camera, hood, transilluminator and a colour printer for low cost prints. The optional LCD monitor mounts to the front of the hood for preview and capture of gels.

Features and benefits
- Illuminate stained gels with UV fluorescence of benchtop transilluminator
- Capture brilliant colour images with the megapixel resolution digital camera
- Save images to the memory card for transfer to a computer (USB connection) for viewing or documentation
- Instantly print images on the lab quality color photo printer (included)

Introduction
UVP ChemiDoc-It2 gel documentation systems from Wolflabs. The ChemiDoc-It2 Imaging System provides a dynamic instrument for capturing picture-perfect chemiluminescent blot and fluorescent gel images. High-resolution and sensitive imaging of chemiluminescent blots and fluorescent gels. No film is required for imaging. Select from several cameras that utilize cooling in the detection of chemiluminescence Western blot and other imaging samples requiring high sensitivity and camera cooling.

Features and benefits
- Upgradeable to support RGB, Near IR and other multiplex applications using the BioLite MultiSpectral Light Source.
- Choice of two deeply cooled (-57°C) cameras for low noise in low light applications. Overhead white lighting is included, with optional UV and blue light.
- UV transillumination is included with the option for 1 UV (302nm) or 3™UV (254, 302, and 365nm) wavelengths and sizes ranging from 21x26cm to 25x26cm.
- Wide imaging area (field-of-view) for gels and blots of various sizes (up to 25 x 26 cm). Field-of-view, depends on camera and lens selected.
- Four-position manual filter wheel (Ethidium bromide filter included).
- The full package VisionWorks analysis software is included for use on an external computer. Analysis functions include, 1D lane and band analysis, histograms, lane profile graphs, total area density, Western blot densitometry and data reporting. Support for 21 CFR Part 11 compliance is available.
- External computer is sold separately and software is compatible with Windows 7 and later versions.

Introduction
UVP / Analytik Jena DigiDoc-It gel documentation system from Wolflabs. The DigiDoc-It system connects to the user’s computer and is economically designed for image capture and documentation of gels and plates. UVP’s exclusive software controls the camera functions and offers many image enhancement and reporting features. Maintain laboratory records with the image history tracking capabilities. The system combines with a High Performance UV Transilluminator.

Features and benefits
- High resolution digital color camera captures brilliant color images.
- See gels through the UV?blocking viewport window.
- Lightweight door opens for access to the transilluminator filter surface.
- Exclusive software controls the camera and enables image capture, enhancement, annotation and archiving.
- Quickly see live preview of gel images on the computer monitor.

Introduction
UVP / Analytik Jena ChromaDoc-It gel documentation system from Wolflabs. The ChromaDoc-It System connects to your computer for acquisition and documentation of thin layer chromatography (TLC) images. The high resolution Digi camera is controlled by UVP's exclusive capture software.

Features and benefits
- DigiCam 130 digital color camera with 17.9 megapixel resolution
- Low profile Chromato-Vue UV viewing cabinet includes overhead UV
- Capture software enables live preview of images and image enhancement
- Thin Layer Chromatography (TLC) gel imaging with overhead UV lamps
- Exclusive software controls the camera functions, image capture and image enhancement
- Live preview of images
- Allows selection of user-defined, default settings and templates
- Image enhancement enables annotation, use of filters
- Report generation
- UVP’s software requires Microsoft Windows 8, Windows 7 or Vista (32-bit or 64-bit).
- Lightweight Cabinet
- 15-watt 254nm and 365nm UV positioned on two sides of the cabinet for uniform UV illumination
- Interior white light
- Curtain blocks ambient light

Introduction

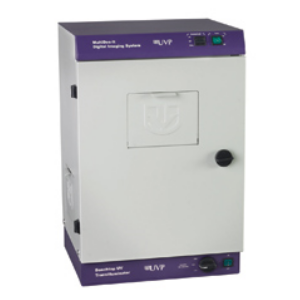

UVP / Analytik Jena MultiDoc-It gel documentation systems from Wolflabs. The MultiDoc-It System connects to your computer for easy gel documentation. The high resolution Digi camera is controlled by UVP's exclusive capture software. Add overhead UV lamps with this unique modular design.

Features and benefits
- DigiCam 130 digital color camera with 17.9 megapixel resolution
- Sturdy darkroom construction
- Capture software
- Modular for adding optional overhead UV lamps
- Select models include side access doors for cutting or moving gels without opening the front door
- Exclusive software controls the camera functions, image capture and image enhancement
- Live preview of images
- Allows selection of user-defined, default settings and templates
- Image enhancement enables annotation, use of filters
- Report generation

Introduction

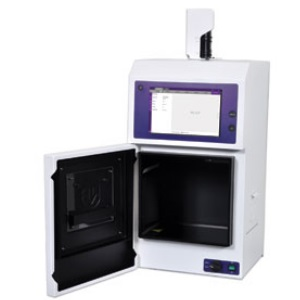

UVP / Analytik Jena BioDoc-It 2 gel documentation system from Wolflabs. The UVP BioDoc-It 2 is designed for imaging of stained gels that are illuminated on the UV transilluminator which is included with the system.

Features and benefits
- High resolution 5.0 MP camera
- Lens is easily accessible for adjustment of aperture, zoom and focus
- Two-position filter tray with Ethidium Bromide filter; additional filters are available
- Large 10” touch screen with userfriendly software optimizes image capture
- Easy access data storage for saving images on the USB drive, to the system or network computer
- Unique viewing window allows UV-safe viewing of gels without opening the door
- Wide front door; safety switch turns the UV light off when the door is open
- Side access doors for gel repositioning and cutting while viewing the gel on the screen
- Compact design maximizes laboratory bench space
- Choice of UV Transilluminator - single UV, 2UV or 3UV models

Introduction
UVP / Analytik Jena GelTower (GelMax 130 Imager) gel documentation system from Wolflabs. Simplify precast and mini gel imaging with the UVP GelTower. This small imager is perfect for small gels - image any precast or mini gels up to 11.5 x 16cm. Simply place the gel on the transillumination plate and capture brilliant colour images. The streamlined software interface guides you through the image capture process with automated pre-set capture buttons. Or, have the option to define settings for quick, personalized image capture. Gel analysis is made easy with the user-friendly software. This small imager is truly plug and play, requiring no training.

Features and benefits
- Capture brilliant publication-quality images of precast and mini gels with the high resolution colour camera
- Illuminate gels with midrange UV or optional interchangeable transillumination sources: white, blue or longwave UV
- Generate quantitative analysis results with a simple workflow-based software interface
- Reduce lab bench space requirements with the compact design

Introduction

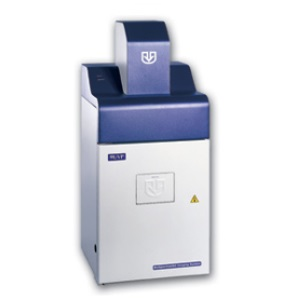

UVP / Analytik Jena BioSpectrum gel documentation systems from Wolflabs. The BioSpectrum Imaging System enables multiple applications including imaging of chemiluminescent (Westerns, Northerns and Southerns), fluorescent, bioluminescent and colorimetric samples.

Features and benefits
- Choice of CCD cameras for high resolution, high quality images. Select a camera based on the imaging applications.
- Automated control of the lens for quick image acquisition and rapid processing.
- Height adjustable platform moves to any position in a 10 inch range for optimized image capture. Platform is easily controlled via the software interface.
- Extremely high uniformity for minimal image enhancement.
- View the sample through the UV safe window without opening the darkroom door.
- Light, tight darkroom creates optimum conditions for imaging gels and blots.
- Place and capture bioluminescent or chemiluminescent samples.
- Built in illumination sources for positioning and exciting samples from above.
- Access ports connect numerous external sources to enhance imaging techniques and acquisition.
- Motorized filter wheel simplify imaging by controlling the filter wheel through a software button. Programmable filter wheel enables automatic selection of the appropriate filter for a specific application.

Introduction

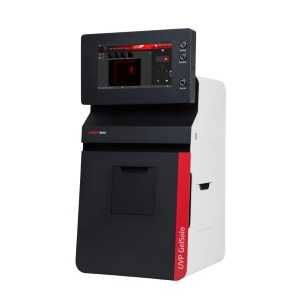

New GelSolo gel documentation systems from UVP / Analytik Jena have been added. The UVP GelSolo is a compact, easyto-use, stand-alone system for gel documentation. It is designed to acquire gel images easily and without any need for training. Thus, it is ideal for multi-user laboratories and practical trainings.

Features and benefits
- High resolution 5.0 MP camera.
- Lens is easily accessible for adjustment of aperture, zoom and focus.
- Large 11.6” touch screen with user-friendly software optimizes image capture and analysis.
- Easy access data storage for saving images on the USB drive, to the system or network computer.
- Unique viewing window allows UV-safe viewing of gels without opening the door.

Introduction

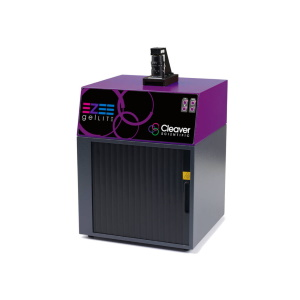

New gelLITE gel documentation systems from Cleaver Scientific have been added. The gelLITE range of gel and chemiluminescence documentation systems have an economical and effective solution for agarose gel imaging. The manually controlled camera zoom and focus gives users complete control of their imaging, and intuitive genePIX acquisition software enable a fast and efficient workflow.

Features and benefits
- White light and blue light options.
- Engineered and manufactured in the UK.
- Full manual control of camera focus and zoom.

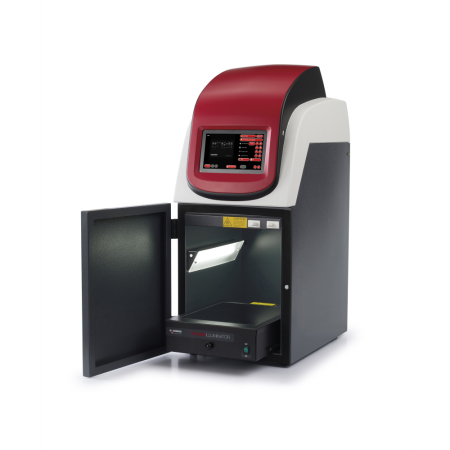

New gel documentation systems from Syngene have been added.
