Microtome vs Cryostat: Which Sectioning Solution Is Right for Your Laboratory?
Understanding the Key Differences Before You Invest
When it comes to tissue sectioning, few purchasing decisions have a greater impact on laboratory workflow, diagnostic quality, and research outcomes than choosing the right instrument. Two of the most commonly considered options are the microtome and the cryostat.
At first glance, both instruments perform a similar task: producing thin sections of biological specimens for microscopic examination. However, the way they prepare samples, the applications they support, and the environments in which they operate are very different.
If you're planning to invest in new histology or pathology equipment, understanding the differences between a microtome and a cryostat can help ensure you select the most suitable solution for your laboratory's needs.
What Is a Microtome?
A microtome is a precision instrument designed to cut extremely thin sections from specimens that have typically been fixed, processed and embedded in paraffin wax. These sections are then mounted onto slides for staining and microscopic analysis.
Microtomes are widely used in:
- Histopathology laboratories
- Clinical diagnostics
- Academic research
- Pharmaceutical development
- Quality control laboratories
The primary advantage of a microtome is its ability to consistently produce high-quality sections from preserved tissue samples. Because specimens have already undergone processing and embedding, laboratories can achieve excellent structural detail and repeatable results.
For routine histology work, a microtome is often considered the foundation of the laboratory sectioning workflow.
What Is a Cryostat?
A cryostat combines a microtome with a refrigerated chamber, allowing tissues to be frozen and sectioned at sub-zero temperatures.
Unlike paraffin processing, cryosectioning enables laboratories to prepare tissue samples rapidly without lengthy fixation and embedding procedures. The specimen remains frozen throughout the cutting process, helping preserve certain biological and molecular characteristics.
Cryostats are commonly used for:
- Frozen section diagnosis during surgery
- Immunohistochemistry
- Molecular biology research
- Neuroscience studies
- Pharmaceutical and biomedical research

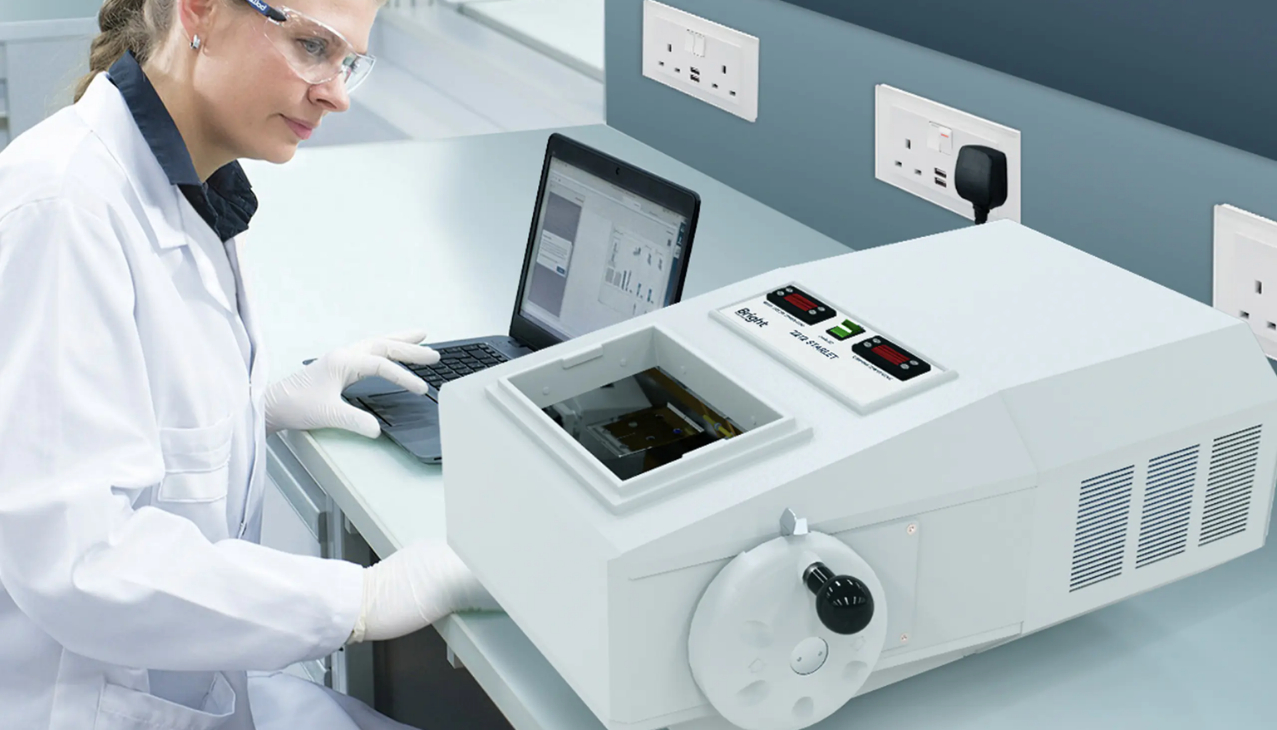

Modern cryostats maintain highly controlled temperatures throughout the sectioning process, ensuring sample integrity and reliable section quality. Systems such as the Bright Instruments OTF7000 Cryostat provide precise temperature control, adjustable cooling systems and advanced safety features designed for both clinical and research environments.
Microtome vs Cryostat: The Main Differences
Sample Preparation
The biggest distinction lies in how specimens are prepared.
A microtome is used with paraffin-embedded samples that have undergone fixation and processing. This creates highly stable specimens suitable for routine histological examination.
A cryostat works with frozen tissue, allowing much faster preparation and analysis while preserving temperature-sensitive biological structures.
Speed of Results
If rapid diagnosis is essential, a cryostat offers a significant advantage.
In surgical pathology, frozen sections can be prepared and examined within minutes, helping clinicians make time-critical decisions during procedures.
Microtome workflows generally require longer preparation times due to tissue fixation, processing and embedding.
Section Quality
For routine diagnostic histology, paraffin sections produced by a microtome often deliver exceptional structural detail and consistency.
Cryostats can also produce excellent sections, particularly when equipped with advanced temperature management and precision engineering, but success often depends on optimising tissue freezing and cutting conditions.
Operating Environment
Microtomes operate in standard laboratory conditions.
Cryostats require temperature-controlled chambers that typically maintain conditions between 0°C and -35°C or lower depending on application requirements.
Which Laboratories Typically Choose a Microtome?
A microtome is often the preferred choice when laboratories:
- Primarily process fixed tissue samples
- Require high-throughput routine histology
- Focus on diagnostic pathology
- Need long-term sample archiving
- Want a cost-effective solution for standard sectioning
For many NHS, university and commercial pathology laboratories, a microtome remains the most heavily utilised sectioning instrument.
Which Laboratories Benefit Most from a Cryostat?
A cryostat is typically the better choice when laboratories:
- Perform intraoperative frozen section analysis
- Conduct immunofluorescence studies
- Work with fresh tissue samples
- Carry out neuroscience research
- Need to preserve molecular and cellular integrity
Research-focused facilities often rely on cryostats because freezing helps maintain biological structures that may be altered during conventional processing. Bright Instruments has developed specialist cryostat systems capable of handling everything from routine pathology samples to whole organs and small animal specimens for advanced research applications.
Questions to Ask Before Purchasing
Before deciding between a microtome and cryostat, laboratory managers should consider:
What type of specimens do we process most frequently?
Routine paraffin-embedded tissue generally points towards a microtome.
Fresh, frozen or molecularly sensitive specimens may require a cryostat.
How quickly are results needed?
If rapid diagnosis is critical, a cryostat can dramatically reduce turnaround times.
What are our future research plans?
Many laboratories purchase equipment based on current requirements only to discover new research opportunities later. Considering future applications can help avoid costly upgrades.
Do we need one instrument or both?
In larger pathology and research facilities, microtomes and cryostats often complement each other rather than compete. Each fulfils a different role within the overall workflow.
Why Bright Instruments Remains a Popular Choice
When evaluating sectioning equipment, reliability and long-term support are just as important as technical specifications.
Bright Instruments has built a reputation for designing and manufacturing specialist microtomes and cryostats for clinical, research and industrial laboratories. Their portfolio includes routine sectioning solutions as well as highly specialised systems for neuroscience, whole-organ and whole-animal cryosectioning applications.
For laboratories seeking precision, durability and expert support, Bright Instruments products remain a strong option worth considering during the purchasing process.
Final Thoughts
Choosing between a microtome and a cryostat is not simply a question of which instrument is better. The real question is which instrument best supports your laboratory's objectives.
If your workflow centres on routine histology and paraffin-embedded tissue, a microtome is likely the most practical and economical solution.
If your laboratory requires rapid diagnosis, frozen section analysis or advanced molecular research capabilities, a cryostat may be the more valuable investment.
By carefully assessing your specimens, workflow requirements and future growth plans, you can make a purchasing decision that delivers long-term value while supporting the highest standards of scientific and diagnostic excellence.
