08/07/2021

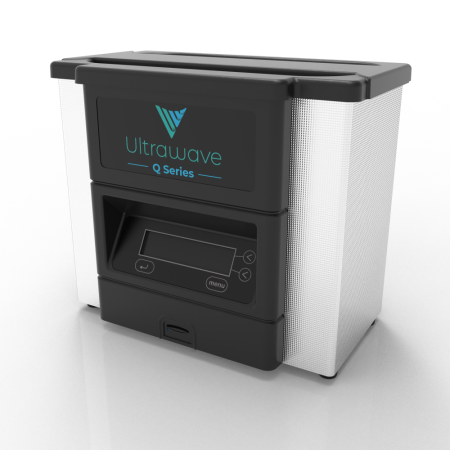

Ultrawave sonicating water bath from Wolflabs

Product Update

Introduction
Ultrawave QS5 sonicating water bath from Wolflabs.

Features and benefits
- Digital LCD control.
- Timer 0 to 99 minutes.
- Power adjust mode.
- Drain outlet allows easy tank drainage.
- Stainless steel basket.
- ABS plastic lid supplied with every machine.
- Memory card datalogger.



Product Category: Water Baths - Sonicating

Manufacturer: Ultrawave

16/06/2021

New Ultrawave sonicating water bath from Wolflabs

Product Update

Introduction

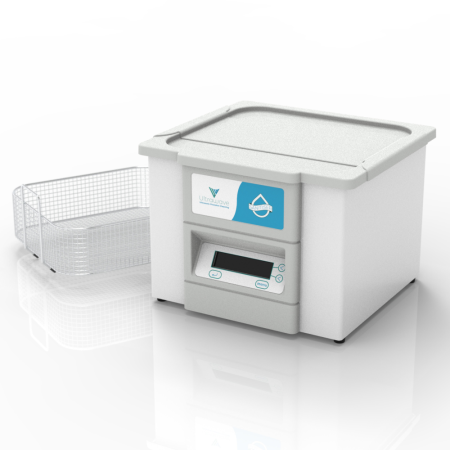

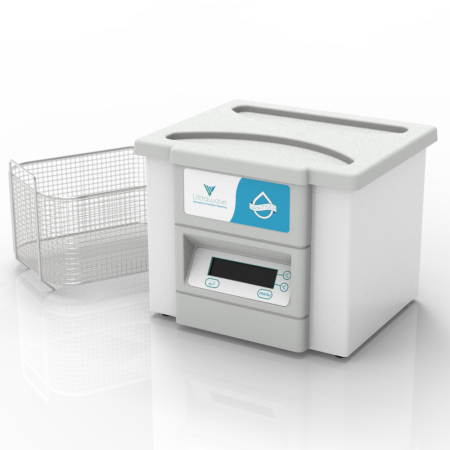

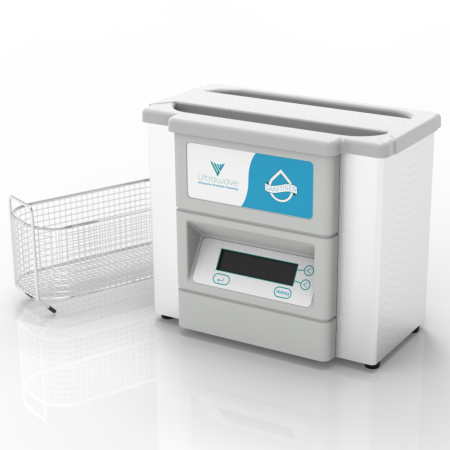

New Sanitiser range of sonicating water baths from Ultrawave have been added.

Features and benefits
- Designed in response to the Covid-19 pandemic.
- Facilitates the cleaning of multiple items in one cycle.
- Easy operation.
- Reaches into even tiny nooks and crannies for a superior clean.
- Available in 3 sizes with basket and tray options.

Product Category: Water Baths - Sonicating

Manufacturer: Ultrawave

27/08/2020

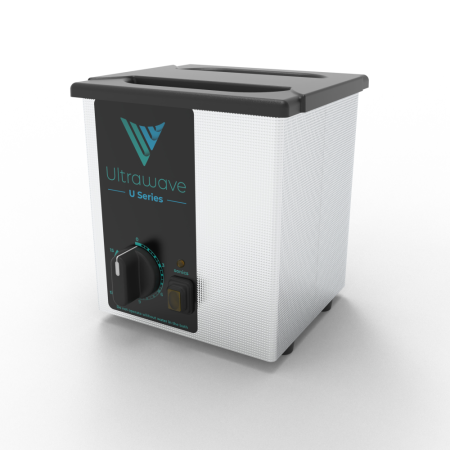

Ultrawave sonicating water bath from Wolflabs

Product Update

Introduction
Ultrawave U100 sonicating water bath from Wolflabs.The U100 is compact and user friendly, offering effective cleaning and processing of small items in both professional and domestic applications.

Features and benefits
- Timer control of up to 15 minutes.
- User friendly.
- Compact.
- Supplied complete with a stainless steel basket and ABS plastic lid.

Product Category: Water Baths - Sonicating

Manufacturer: Ultrawave

18/09/2019

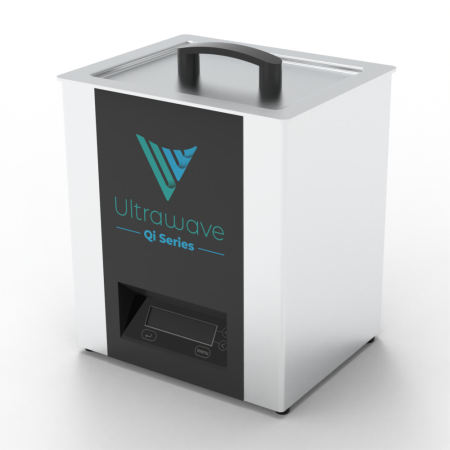

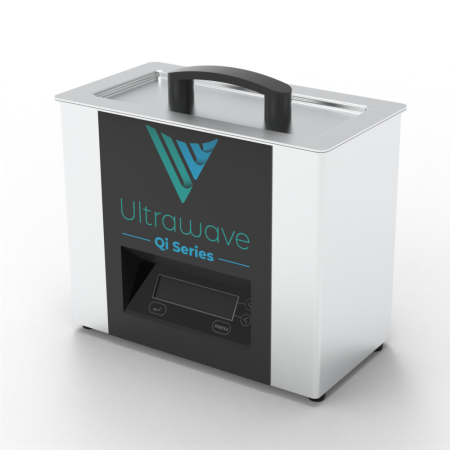

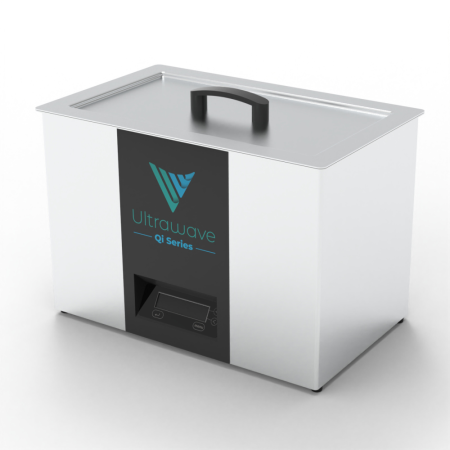

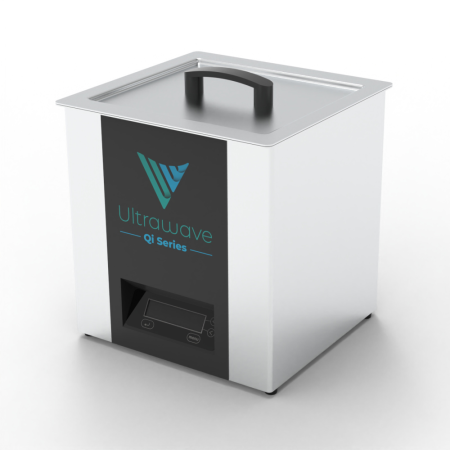

Ultrawave Qi-300 sonicating water bath from Wolflabs

Product Update

Introduction
Ultrawave Qi-300 sonicating water bath from Wolflabs. This water bath is robust and reliable, delivering outstanding cleaning performance in a wide range of industries. From precision, pharmaceutical and medical device manufacturing to heavy duty cleaning in automotive and engineering processing.

Features and benefits
- LCD control panel.
- Precise and accurate processing.
- Reliable and durable.

Product Category: Water Baths - Sonicating

Manufacturer: Ultrawave

10/05/2018

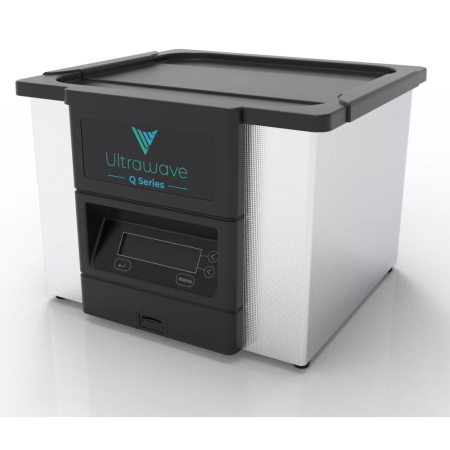

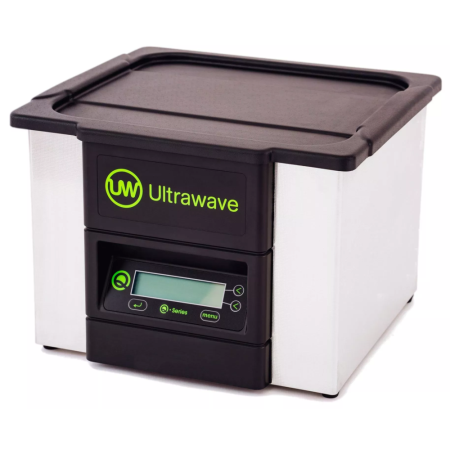

Ultrawave sonicating water baths from Wolflabs

Product Update

Introduction
Ultrawave Q-Series of sonicating water baths from Wolflabs. Ultrawave’s Q-Series is operated with an easy to use digital panel for accurate cycle parameter control and effective cleaning performance for all applications.

Features and benefits
- Digital LCD control
- Timer 0 to 99 minutes
- Temperature up to 70ºC
- Degas mode
- Power adjust mode
- Homogenous & consistent ultrasonic activity
- Drain outlet allows easy tank drainage
- Fluid level sensor protects the ultrasonic transducers
- Digital cycle validation

Product Category: Water Baths - Sonicating

Manufacturer: Ultrawave

Ultrawave Ultrasonic Baths - Ultrasonic Activity Meter



In order to ensure your ultrasonic bath is working at maximum efficiency it is important to carry out regular checks. These checks are required regardless of the application as an ultrasonic bath which is not working at full power will lead to increased cleaning times and will impair your cleaning process.

Ultrawave have recognised the need to have a rapid means of testing the ultrasonic activity within a bath and have developed an ultrasonic activity meter.

This easy to use probe measures ultrasonic power and frequency in a matter of seconds to give an instant record of operating efficiency.

  • Frequency range: 5-50KHz in 5KHz steps
  • Ultrasonic power 10-100% in 10% steps
  • Power stabilisation to ensure accuracy even with low battery power



Ultrawave Ultrasonic Bath SUB5050



The Ultrawave SUB5050 submersible transducer is for use in industrial applications where cleaning performance and reliability is vital. This stainless steel box contains 30 transducers and can be retro-fitted into existing tanks for use with an Ultrawave generator. This provides excellent ultrasonic cleaning performance without the cost of a whole new system.

Specifications

  • Dimensions: 350x350x90
  • Power: 1.5 KVA
  • Number of Transducers: 30

Ultrawave Ultrasonic Baths - Lids, Baskets & Beakers



Lids, baskets, beakers and beaker holders can all be purchased separately from Ultrawave. Whatever your requirement we aim to provide the items you need to produce the best cleaning results for your application.

Lids are available for every ultrasonic cleaning bath from Ultrawave. The use of a lid provides a more efficient cleaning performance and also reduces the risk of microbial aerosols produced when cleaning contaminated instruments.

Baskets for every Ultrawave benchtop and industrial ultrasonic cleaner can also be purchased separately. Baskets must be used when cleaning items in an ultrasonic bath. Placing the instruments directly onto the bottom of the ultrasonic tank can damage the bath and invalidate your warranty.

In addition to lids and baskets, Ultrawave offer a range of beakers and beaker holders for use in the ultrasonic bath. Pyrex standard beakers and holders are available in 400ml, 600ml and 1 litre sizes.

For more information on Ultrawave accessories for your ultrasonic bath, please contact our sales team who will advise on the correct item to maximise your cleaning operations.

Ultrawave Ultrasonic Bath SUB6535



The Ultrawave SUB6535 submersible transducer is for use in industrial applications where cleaning performance and reliability is vital. This stainless steel box contains 24 transducers and can be retro-fitted into existing tanks for use with an Ultrawave generator. This provides excellent ultrasonic cleaning performance without the cost of a whole new system.

Specifications

  • Dimensions: 650x350x90
  • Power: 1.5 KVA
  • Number of Transducers: 24



Ultrawave Ultrasonic Bath SUB6020



The Ultrawave SUB6020 submersible transducer is for use in industrial applications where cleaning performance and reliability is vital. This stainless steel box contains 10 transducers and can be retro-fitted into existing tanks for use with an Ultrawave generator. This provides excellent ultrasonic cleaning performance without the cost of a whole new system.

Specifications

  • Dimensions: 350x350x90
  • Power: 2 KVA
  • Number of Transducers: 10



Ultrawave Ultrasonic Bath SUB3535



The Ultrawave SUB3535 submersible transducer is for use in industrial applications where cleaning performance and reliability is vital. This stainless steel box contains 12 transducers and can be retro-fitted into existing tanks for use with an Ultrawave generator. This provides excellent ultrasonic cleaning performance without the cost of a whole new system.

Specifications

  • Dimensions: 350x350x90
  • Power: 1 KVA
  • Number of Transducers: 12

Ultrawave Standard Generator Gen 2000

The Ultrawave Gen 2000 is a 2KW digitally controller power source which sends current to the submersible transducers. This state of the art generator is designed to operate at the optimal activity level for the load being cleaned, thus achieving optimum ultrasonic cleaning performance.

Specifications

  • Dimensions: 380x435x145
  • Power: 1 KW

Ultrawave Standard Generator Gen 1500

The Ultrawave Gen 1500 is a 1.5KW digitally controller power source which sends current to the submersible transducers. This state of the art generator is designed to operate at the optimal activity level for the load being cleaned, thus achieving optimum ultrasonic cleaning performance.

Specifications

  • Dimensions: 380x435x145
  • Power: 1.5 KW



Ultrawave Standard Generator Gen 1000

The Ultrawave Gen 1000 is a 1KW digitally controller power source which sends current to the submersible transducers. This state of the art generator is designed to operate at the optimal activity level for the load being cleaned, thus achieving optimum ultrasonic cleaning performance.

Specifications

  • Dimensions: 380x435x145
  • Power: 1 KW

Ultrawave Ultrasonic Bath IND 7800

The Ultrawave IND7800 Ultrasonic Cleaning Tank is our largest standard industrial ultrasonic cleaner. Should our standard range not meet your requirements, please contact us to find out more about our bespoke units.

Specifications

  • Capacity: 80L
  • Controls: Analogue or Digital
  • Temperature: Heated
  • Tank Dimensions: 600x500x300
  • Overall Dimensions: 750x650x400
  • Power: 800 Watts



Ultrawave Ultrasonic Bath IND6427



The Ultrawave IND6427 Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries. It is available with the Ultrawave validation printer which allows printed results of every cleaning cycle to be produced.

Specifications

  • Capacity: 32L
  • Controls: Analogue or Digital
  • Temperature: Heated
  • Tank Dimensions: 320x270x200
  • Overall Dimensions: 750x410x350
  • Power: 600 Watts

Available Options

  • Ultrawave IND6427
  • Ultrawave IND6427complete with validation printer (see below)

Ultrawave Ultrasonic Bath IND6045



The Ultrawave IND6045 Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries.

Specifications

  • Capacity: 90L
  • Controls: Analogue or Digital
  • Temperature: Heated
  • Tank Dimensions: 600x450x400
  • Overall Dimensions: 750x600x550
  • Power: 1200 Watts

Ultrawave Ultrasonic Bath IND5800

The Ultrawave IND5800 Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries.

Specifications

  • Capacity: 60L
  • Controls: Analogue or Digital
  • Temperature: Heated
  • Tank Dimensions: 600x500x250
  • Overall Dimensions: 750x650x350
  • Power: 600 Watts

Ultrawave Ultrasonic Bath IND5040

The Ultrawave IND5040 Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries.

Specifications

  • Capacity: 65L
  • Controls: Analogue or Digital
  • Temperature: Heated
  • Tank Dimensions: 500x400x400
  • Overall Dimensions: 650x550x500
  • Power: 900 Watts

Ultrawave Ultrasonic Bath IND4530

The Ultrawave IND4530 Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries.

Specifications

  • Capacity: 45L
  • Controls: Analogue or Digital
  • Temperature: Heated
  • Tank Dimensions: 450x300x350
  • Overall Dimensions: 650x550x500
  • Power: 600 Watts

Ultrawave Ultrasonic Bath IND3530

The Ultrawave IND3530 Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries.

Specifications

  • Capacity: 25L
  • Controls: Analogue or Digital
  • Temperature: Heated
  • Tank Dimensions: 350x300x300
  • Overall Dimensions: 500x450x400
  • Power: 400 Watts



Ultrawave Ultrasonic Bath IND2850

The Ultrawave IND2850 Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries.

Specifications

  • Capacity: 30L
  • Controls: Digital
  • Temperature: Heated
  • Tank Dimensions: 500x300x300
  • Overall Dimensions: 520x330x330
  • Power: 500 Watts

Ultrawave Ultrasonic Bath IND1750D



The Ultrawave IND1750D Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries.

Specifications

  • Capacity: 17L
  • Controls: Digital
  • Temperature: Heated
  • Tank Dimensions: 330x300x200
  • Overall Dimensions: 340x310x330
  • Power: 300 Watts



Ultrawave Ultrasonic Bath IND1250D



The Ultrawave IND1250D Ultrasonic cleaner provides fast, powerful ultrasonic cleaning for use in a wide range of applications and industries.

Specifications

  • Capacity: 12L
  • Controls: Digital
  • Temperature: Heated
  • Tank Dimensions: 300x250x200
  • Overall Dimensions: 330x280x250
  • Power: 250 Watts

Ultrawave Ultrasonic Bath IND500D



The Ultrawave IND500D Ultrasonic Cleaning Tank is our smallest industrial ultrasonic cleaner. Should our standard range not meet your requirements, please contact us to find out more about our bespoke units.

Specifications

  • Capacity: 4.5L
  • Controls: Digital
  • Temperature: Heated
  • Tank Dimensions: 300x150x150
  • Overall Dimensions: 330x180x285
  • Power: 100 Watts

Ultrawave Ultrasonic Baths Hygea 5000



The Hygea 5000 has been designed to clean hollow lumen instruments and rigid scopes used during operating theatre procedures, and combines Ultrawave power and reliability with full process validation, allowing for easy traceability, an area which is now vital in instrument reprocessing.


The Hygea 5000 also has the capability to clean any surgical instrument which has been used for a surgical procedure. The instruments can be placed into the basket and will undergo the same rigorous cleaning action, ensuring serrated edges and hinge joints are completely decontaminated.

Process Validation
The integrated process validation and printout provide a permanent record for every aspect of the cleaning cycle including:

Date and Time Validation

  • Operator
  • Location
  • Unique Cycle number

The unit also validates each stage of the cleaning process including:



Spray Cycle Validation

  • Flush Cycle
  • Cleaning Cycle
  • Rinse Cycle
  • Temperature
  • Detergent Dosing

Ultrawave also offer a full service contract for the unit. This includes quarterly validation checks and a full service and tune in order to ensure it remains working at optimum efficiency throughout its life.

Ultrawave Ultrasonic Baths Hygea 1250



The benchtop Hygea 1250 is for use in healthcare sites such as Dental Surgeries, Doctors Surgeries and Chiropodist’s where small surgical instruments are used. They are also suitable for use in hospitals as part of the surgical instrument decontamination process of items such as surgical forceps and scalpels. The ultrasonic power of the Hygea means that even the heaviest contaminants, such as dental cement, are removed.

Once the parameters are set and the detergent has been added the Hygea 1250 takes just three button presses to begin each cycle.

The Hygea 1250 benefits from:

  • Fully HTM2030 compliant
  • Full in-built validation as standard
  • Advanced single touch digital controls for ease of use
  • Fully automated cleaning procedure
  • Completely programmable user interface which incorporates operator, location, date, time cycle number and water temperature
  • Lock out lid for tamperproof cleaning cycles
  • Fluid Level Sensors
  • Administrator rights for parameter setting
  • Over temperature cut off
  • Software controlled thermal control
  • Electronic thermal protection on heater
  • Fused live and neutral
  • Back lit LCD display

The Hygea 1250 also uses Ultrawave’s unique detergent system, SSD (single shot dosing). A single sachet of detergent added to the tank will create the optimal cleaning solution for carrying out instrument decontamination.

Design Registered under UK Registration No. 000385190





Water Baths - Sonicating - Ultrawave






Cleaning Process Control

Understanding the operator’s need to trace cleaning processes, each Q-Series cleaner is fitted with an integral SD card slot which allows digital validation of every cleaning cycle.

Rather than traditional hard copy validation provided by printers, the Q-Series allows digital traceability of every cleaning cycle. When an SD card is plugged into the Q-Series, the cleaning cycle parameters are immediately saved on the card for easy transfer to a PC. Each cleaning cycle parameter is recorded meaning that operators have a traceable record which can be easily saved and the cleaning cycle repeated. If a hard copy is required, it can be easily printed from the PC.

• SD port allows easy validation tracking between Q-Series and PC
• Improved software memory logs cleaning parameters allowing easy cycle repeatability
• Easy traceability of cycle number, time, temperature and sonics validation
• No need to store hard copy records of each cleaning cycle.


Technical Information

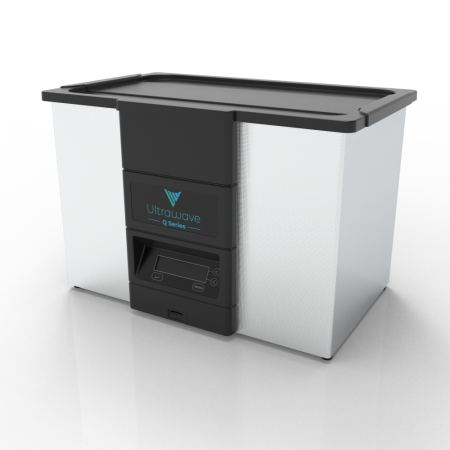

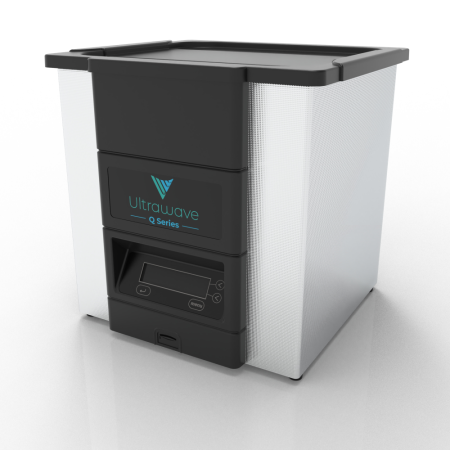

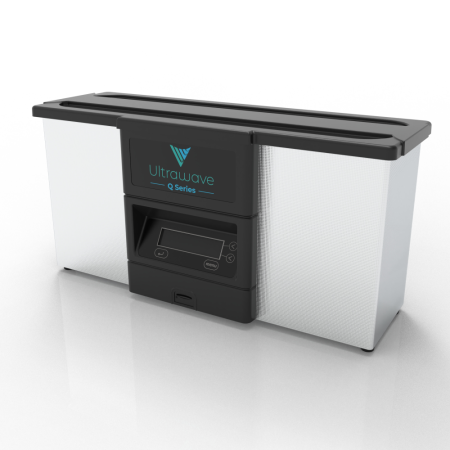

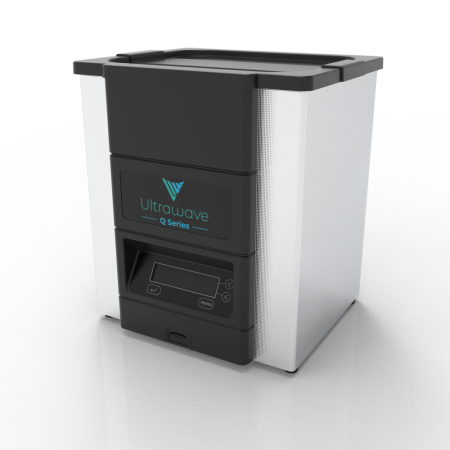

Model QS3 QS4 QS5 QS10 QS12 QS18 QS25
Working capacity: 2.5 litres 3.75 litres 4.5 litres 9.5 litres 12.5 litres 17.5 litres 25 litres
Max. capacity: 2.75 litres 4.0 litres 5.0 litres 10.5 litres 14.0 litres 18.5 litres 28 litres
External dimensions: 285x184x267mm 285x184x267mm 345x200x267mm 550x183x267mm 345x288x366mm 374x347x366mm 551x347x366mm
Tank dimensions: 240x140x100mm 240x140x150mm 300x150x150mm 500x140x150mm 295x245x200mm 330x300x200mm 500x300x200mm
Basket dimensions: 220x125x40mm 215x120x90mm 273x125x90mm 460x110x90mm 265x215x140mm 285x260x140mm 470x270x140mm


Water Baths - Sonicating - Ultrawave

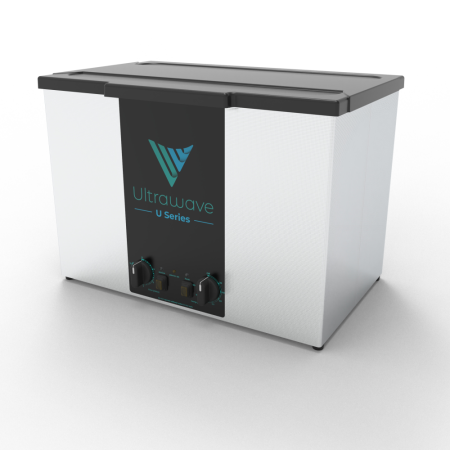

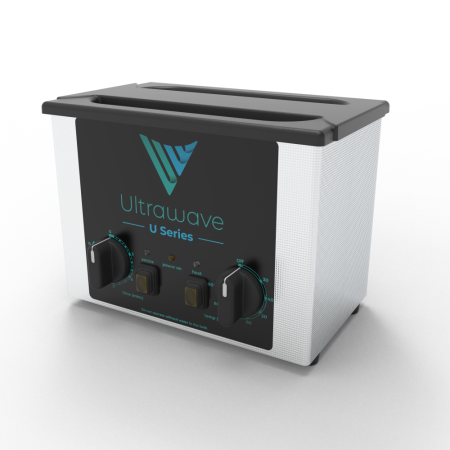

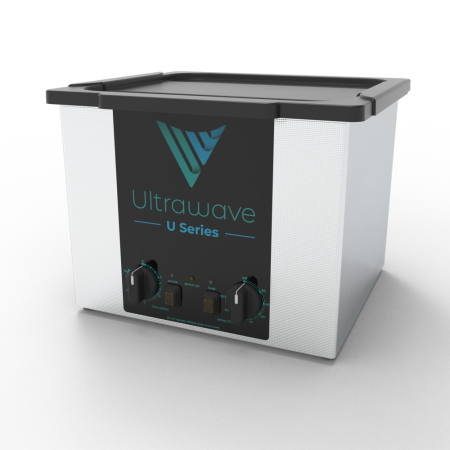

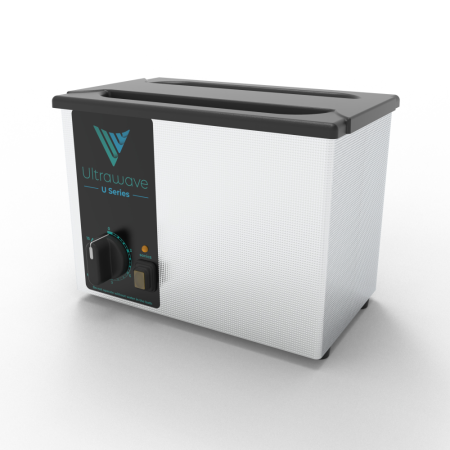

The Ultrawave range of analogue controlled ultrasonic baths can be used in many different applications. With sizes ranging from 0.5 to 4.5 litres in capacity, these compact ultrasonic baths are used in a diverse range of environments from medical and healthcare surgeries, to jewellers, tattooists, chiropodists and in the home.
Each Ultra Analogue Benchtop is supplied complete with stainless steel basket and ABS plastic lid.


Technical Information

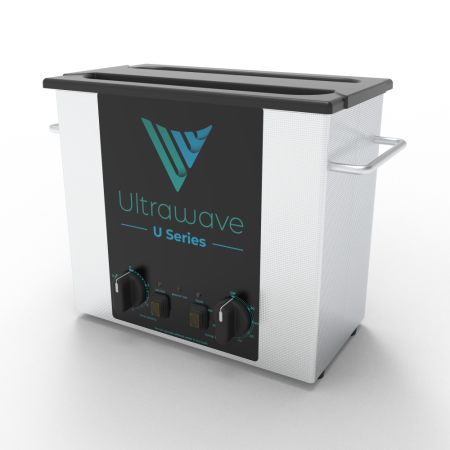

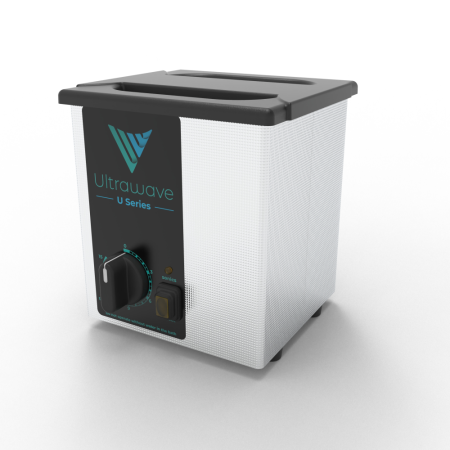

Model U50 U100 U100H U95 U300 U300H U500H
Capacity: 0.5L 1.5L 1.5L 1.95L 2.5L 2.5L 4.5L
Controls: Analogue Analogue Analogue Analogue Analogue Analogue Analogue
Temperature: Unheated Unheated Heated 0-70ºC Unheated Unheated Heated 0-70ºC Heated 0-70ºC
Tank Dimensions: 150x85x65mm 150x140x100mm 150x140x100mm 200x150x75mm 240x140x100mm 240x140x100mm 300x150x150mm
Overall Dimensions: 160x95x160mm 180x160x190mm 180x160x190mm 210x165x160mm 270x170x210mm 270x170x210mm 330x180x275mm
Internal basket dimensions:* 120x60x25mm 120x95x55mm 120x95x55mm 180x135x45 220x125x40mm 220x125x40mm 270x125x90mm
*Rounded figures



Ultrawave Benchtop Ultrasonic Bath U2800D



The Ultrawave U2800D Ultrasonic Bath is our largest ultrasonic benchtop unit for use in medical, healthcare, veterinary, dental and many other applications.

Specifications

  • Capacity: 25L
  • Controls: Digital
  • Temperature: Heated
  • Tank Dimensions: 500x300x200mm
  • Overall Dimensions: 520x330x330mm
  • Power: 400 Watts
  • Internal Basket Dimensions: 450x260x144mm

Ultrawave Benchtop Ultrasonic Bath U1750D



The Ultrawave U1750D Ultrasonic Bath is a benchtop ultrasonic cleaner for use in medical, healthcare, veterinary, dental and many other applications.

Specifications

  • Capacity: 17.5L
  • Controls: Digital
  • Temperature: Heated
  • Tank Dimensions: 330x300x200mm
  • Overall Dimensions: 350x330x320mm
  • Power: 300 Watts
  • Internal Basket Dimensions: 261x232x143mm

Ultrawave Benchtop Ultrasonic Bath U1250D



The Ultrawave U1250D Ultrasonic Bath is a benchtop ultrasonic cleaner for use in medical, healthcare, veterinary, dental and many other applications.

Specifications

  • Capacity: 12.5L
  • Controls: Digital
  • Temperature: Heated
  • Tank Dimensions: 295x245x200mm
  • Overall Dimensions: 315x245x200mm
  • Power: 200 Watts
  • Internal Basket Dimensions: 240x195x150mm



Ultrawave Benchtop Ultrasonic Bath



The Ultrawave U1100D Ultrasonic Bath is designed specifically for ultrasonic cleaning of long medical instruments.

Specifications

  • Capacity: 9.5L
  • Controls: Digital
  • Temperature: Heated
  • Tank Dimensions: 500x140x150mm
  • Overall Dimensions: 520x160x300mm
  • Power: 200 Watts
  • Internal Basket Dimensions: 434x98x107mm

Ultrawave Benchtop Ultrasonic Bath U500



The Ultrawave U500 Ultrasonic Bath is a benchtop ultrasonic cleaner for use in medical, healthcare, veterinary, dental and many other applications.

Specifications

  • Capacity: 4.5L
  • Controls: Analogue (U500) or Digital (U500D)
  • Temperature: Heated
  • Tank Dimensions: 300x150x150mm
  • Overall Dimensions: 330x180x275mm
  • Power: 100 Watts
  • Internal Basket Dimensions: 255x107x110mm



Ultrawave Benchtop Ultrasonic Bath U400



The Ultrawave U400 Ultrasonic Cleaning Bath is a benchtop ultrasonic cleaner for use in medical, healthcare, veterinary, dental, tattooist and many other applications.

Specifications

  • Capacity: 3.75L
  • Controls: Analogue (U400) or Digital (U400D)
  • Temperature: Heated
  • Tank Dimensions: 240x140x150mm
  • Overall Dimensions: 260x160x240mm
  • Power: 70 Watts
  • Internal Basket Dimensions: 195x100x105mm

Ultrawave Benchtop Ultrasonic Bath U300



The Ultrawave U300 Ultrasonic Cleaner is an ultrasonic benchtop unit which provides excellent instrument contamination removal in a wide range of applications.

Specifications

  • Capacity: 2.5L
  • Controls: Analogue (U300 or U300H) or digital (U300HD)
  • Temperature: Heated or Un-Heated
  • Tank Dimensions: 240x140x100mm
  • Overall Dimensions: 270x170x210mm
  • Power: 70 Watts
  • Internal Basket Dimensions: 200x108x55mm

Ultrawave Benchtop Ultrasonic Bath U100



The Ultrawave U100 Ultrasonic Bath is a benchtop ultrasonic cleaner for use in medical, healthcare, veterinary, dental and many other applications.

Specifications

  • Capacity: 1.5L
  • Controls: Analogue
  • Temperature: Heated (U100H) or Un-Heated (U100)
  • Tank Dimensions: 150x140x100mm
  • Overall Dimensions: 180x160x190mm
  • Power: 35 Watts
  • Internal Basket Dimensions: 120x96x56mm



Ultrawave Benchtop Ultrasonic Bath U95



The Ultrawave U95 Ultrasonic bath provides excellent cleaning in dentistry, chiropody and other healthcare and laboratory applications.

Specifications

  • Capacity: 1.95L
  • Controls: Analogue
  • Temperature: Un-heated
  • Tank Dimensions: 200x150x75mm
  • Overall Dimensions: 210x165x160mm
  • Power: 35 Watts
  • Internal Basket Dimensions: 175x136x43mm

Ultrawave Benchtop Ultrasonic Bath U50

The Ultrawave U50 Ultrasonic Cleaning Bath is our smallest benchtop ultrasonic cleaner and is ideal for cleaning small instruments in healthcare and laboratory applications.

Specifications

  • Capacity: 0.5L
  • Controls: Analogue
  • Temperature: Un-heated
  • Tank Dimensions: 150x85x65mm
  • Overall Dimensions: 160x95x160mm
  • Power: 35 Watts
  • Internal basket dimensions: 121x62x24m
