The company that reinvented ice. Scotsman is the world’s leading ice machine manufacturer for one basic reason. We understand, better than any other company, the critical importance of ice to any number of businesses. From hotels, restaurants, bars, supermarkets and fast-food outlets, to hospitals, laboratories, fisheries and food processing facilities, Scotsman machines play a crucial role in the success of each operation. With a reliable supply of cubes, flake, superflake, scale, nugget, and gourmet ice, in quantities that range from one cube at a time to 10 tons of ice a day, Scotsman is clearly the Ice The World Demands™.

Products from this manufacturer Number of products

Ice Makers

17 products >
AF80  AF80
AF103  AF103
AF124  AF124

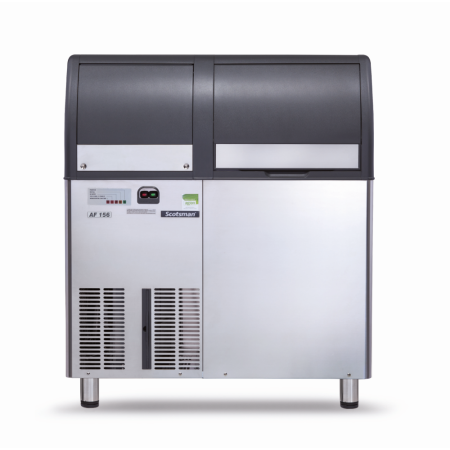

AF156  AF156
AF206  AF206
AFC134  AFC134
AFC80  AFC80
EFC134  EFC134
EF103  EF103
EF124  EF124

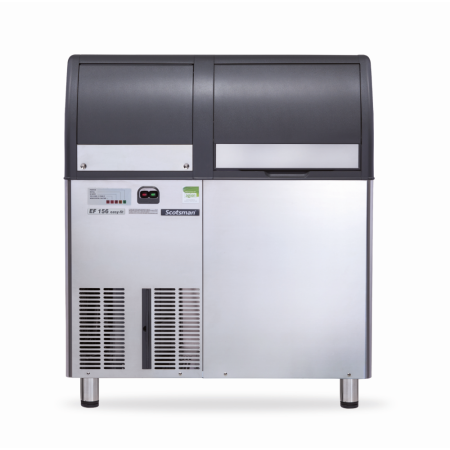

EF156  EF156
EF206  EF206
TCS180AS  TCS180 AS
TCS180ASM  TCS180 ASM
TCS180EVO  TCS180 EVO
TCL180AS  TCL180 AS
TCL180ASM  TCL180 ASM

Other laboratory products -

99 products >
ACM56  Scotsman Self Contained Ice Cu ber Stainless Steel Finish
EC56  Scotsman Self Contained Ice Cu ber complete with waste drain
EC176  Scotsman Self Contained Ice Cu ber complete with waste drain

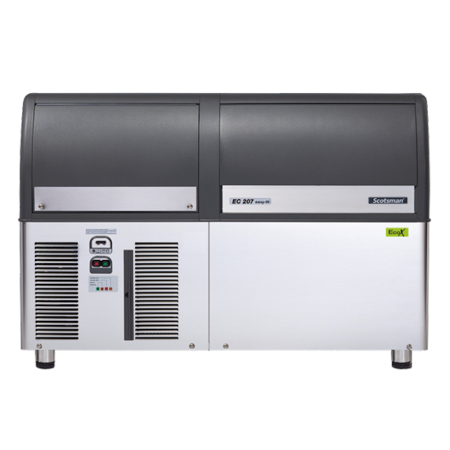

EC206  Scotsman Self Contained Ice Cu ber complete with waste drain
ACM46  Scotsman Self Contained Ice Cu ber Stainless Steel Finish
ACM206  Scotsman Self Contained Ice Cu ber Stainless Steel Finish
ACM86  Scotsman Self Contained Ice Cu ber Stainless Steel Finish
EC226  Scotsman Self Contained Ice Cu ber complete with waste drain
EC126  Scotsman Self Contained Ice Cu ber complete with waste drain

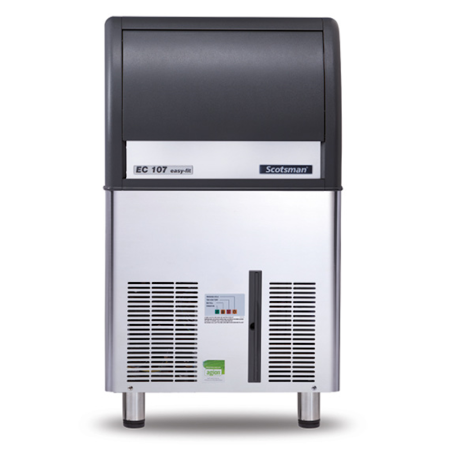

EC106  Scotsman Self Contained Ice Cu ber complete with waste drain

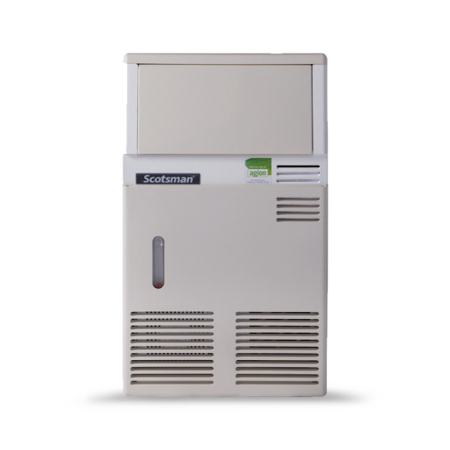

ACM25  Ice cuber Scotsman ACM25 self contained
ACM226  Scotsman Self Contained Ice Cu ber Stainless Steel Finish

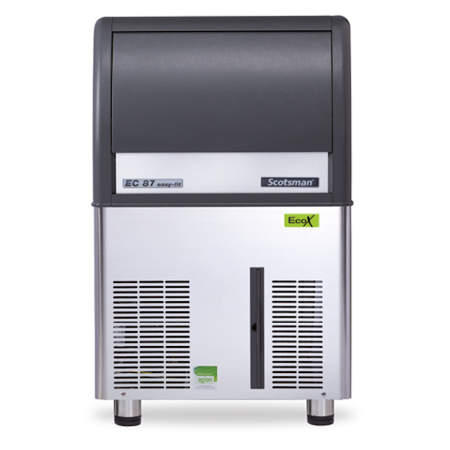

EC86  Scotsman Self Contained Ice Cu ber complete with waste drain
ACM106  Scotsman Self Contained Ice Cu ber Stainless Steel Finish
ACM176  Scotsman Self Contained Ice Cu ber Stainless Steel Finish

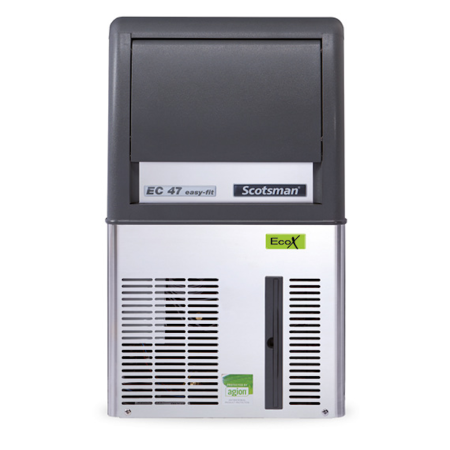

EC46  Scotsman Self Contained Ice Cu ber complete with waste drain
ACM126  Scotsman Self Contained Ice Cu ber Stainless Steel Finish
MF26/SB193  Ice Maker Scotsman MF26/SB193 output 120kg, bin capacity 100kg
MF36/SB193  Ice Maker Scotsman MF36/SB193, 200kgs production in 24 hours, 129Kgs storage
CU0415  Scotsman Self Contained Super Dice
CU0715  Scotsman Self Contained Super Dice
CU0920  Scotsman Self Contained Super Dice
CU2026  Scotsman Self Contained Super Dice
CU3030  Scotsman Self Contained Super Dice
C0322/SB193  Scotsman Modular Ice Cuber c/w Storage Bin
C0522/SB193  Scotsman Modular Ice Cuber c/w Storage Bin
C0530/SB393  Scotsman Modular Ice Cuber c/w Storage Bin
C0630/SB393  Scotsman Modular Ice Cuber c/w Storage Bin
C0830/SB393  Scotsman Modular Ice Cuber c/w Storage Bin
CH1157917  Replacement cartridges Scotsman water filter for HF20S
HGR-0001  TC180 Long handle drainage brush
XP194  WRAS 1.5m Food Grade Water Inlet Hose with NRV
ICE0109  EN1717 Tundish Adaptor Kit
SAF-T-SCOOP  Hygienic Guardian Ice Scoop System
AQU-ACIKHUBB  Ultra Claris 2000 Filtration System
RMTCND164656  Remote Condenser c/w pre charged lines
SB193S  Ice Storage Bin
FOL-300-22  Follett ice storage bin
SB322S  Ice Storage Bin
SB530S  Ice Storage Bin
SB393S  Ice Storage Bin
FOL-425-30  Follett ice storage bin
NU100  Self Contained Dice Ice
FOL-600-42  Follett ice storage bin
NU150  Self Contained Dice Ice
FOL-650-44  Follett ice storage bin
NU220  Self Contained Dice Ice
FOL-950-48  Follett ice storage bin
NU300  Self Contained Dice Ice
FOL-1025-52  Follett ice storage bin
DXG35  Hands Free Ice Dispenser
MXG328/SB193  Modular Ice Cuber c/w Storage Bin
NW458/SB393  Modular Ice Cuber c/w Storage Bin
UBH1100S  Ice Storage Bin
MXG428/SB322  Modular Ice Cuber c/w Storage Bin
MXG438/SB393  Modular Ice Cuber c/w Storage Bin
MXG468PROPANE/SB393  Modular Ice Cuber Propane refrigerant c/w Storage Bin
NW608/FOL600  Modular Ice Cuber c/w Storage Bin
UBH1600S  Ice Storage Bin
MXG638/FOL600  Modular Ice Cuber c/w Storage Bin
MXG938/FOL600  Modular Ice Cuber c/w Storage Bin
MF46/FOL600  Modular Ice Flaker c/w Storage Bin
MF47R290/FOL600  Modular Ice Flaker - R290 Refrigerant c/w Storage Bin
UBH2250S  Ice Storage Bin
NW1008/FOL600  Modular Ice Cuber c/w Storage Bin
MFNS46/FOL600  Modular Nugget Maker c/w Storage Bin
C1030/FOL600  Modular Ice Cuber c/w Storage Bin
N0622/SB322  Modular Nugget Maker c/w Storage Bin
MF58SPLIT/FOL1025  Modular Ice Flaker c/w Storage Bin (RCU not included)
MFNS56/FOL600  Modular Nugget Maker c/w Storage Bin
MF56/FOL1025  Modular Ice Flaker Scotsman MF56 with FOL1025 storage Bin (464 kg), max. production/24hrs: 600 kg.
MF59CO2/FOL1025  Modular Ice Flaker c/w Storage Bin (RCU not included)
C1448/FOL1025  Modular Ice Cuber c/w Storage Bin
N0922/FOL600  Modular Nugget Maker c/w Storage Bin
C1848/FOL1025  Modular Ice Cuber c/w Storage Bin
C2148R/FOL1025  Modular Ice Cuber c/w Storage Bin -Remote option only
MF68SPLIT/UBH1600  Modular Ice Flaker c/w Storage Bin (RCU not included)
MF69CO2/UBH1600  Modular Ice Flaker c/w Storage Bin (RCU not included)
MF66/UBH1600  Modular Ice Flaker c/w Storage Bin
MF88SPLIT/UBH2250  Modular Ice Flaker c/w Storage Bin (RCU not included)
MFNS88SPLIT/UBH2250  Modular Nugget Maker c/w Storage Bin (RCU not included)
MF86/UBH2250  Modular Ice Flaker c/w Storage Bin
MFNS86/UBH2250  Modular Nugget Maker c/w Storage Bin
SW12S  Water Cooler
SCW14FP-EVO  Water Cooler
SW12USPH  Water Cooler
NW308/SB193  Modular Ice Cuber c/w Storage Bin
NW508/SB322  Modular Ice Cuber c/w Storage Bin
MV426/SB322  Modular Ice Cuber c/w Storage Bin
MV430R290/SB322  Modular Ice Cuber - R290 Refrigerant c/w Storage Bin
MV460R290/SB393  Modular Ice Cuber - R290 Refrigerant c/w Storage Bin
C0722/SB322  Modular Ice Cuber c/w Storage Bin
MCM46ARC/FOL600  Modular Ice Cuber c/w Storage Bin
MV806/FOL600  Modular Ice Cuber c/w Storage Bin
MCM46/FOL600  Modular Ice Cuber c/w Storage Bin
MCXL46/FOL600  Modular Ice Cuber - Extra Large Cube c/w Storage Bin
MC1210/UBH2250  Modular Ice Cuber c/w Storage Bin
EST010  Ice maker frame Scotsman EST010
HUB001-CARR01  Carriage code Scotsman

  • Product update

    Introduction

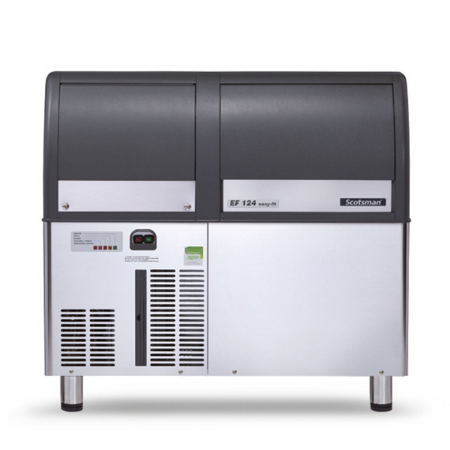

    Scotsman EF124 ice maker from Wolflabs. Self contained ice machine up to 120Kg.

    Features and benefits
    - Produces granular shape ice flakes, 80% hardness
    - Up to 120 kg (264,5 lbs) daily production
    - Up to 40 kg (88 lbs) ice storage capacity
    - Ice scoop holder safely positioned in ice-storage bin
    - Resistant stainless steel exterior
    - Advanced diagnostics computerized control
    - Front panel in & out airflow (air-cooled model only) for built-in installation
    - Front access condenser air filter, removable and washable (air cooled version only)
    - Easily accessible, front panel mount, ON-OFF Switch
    - Easy, front panel access to technical / service area of the machine
    - Routine Maintenance visible alarm light on front panel
    - Ergonomically designed ice storage access, with disappearing door
    - Door-closing movement dampening system
    - Vapor-based microbial control system pouch in ice storage area
    - PWD System for remote water drain (easy-fit installation)
    - AgION antimicrobial agent embedded in molded plastics parts
    - CFC-free R-404A Refrigerant
    - 2 years manufacturer warranty on defective components

    Product category Manufacturer Wolf Staff Date
    Ice Makers Scotsman David Suddaby 01-Dec-2017

  • Product update

    Introduction
    Scotsmas EF103 ice maker from Wolflabs has been added. Self contained ice machine up to 108Kg.

    Features and benefits
    - Up to 108 kg (238 lbs.) of flake ice production per day
    - Up to 30 kg (66 lbs.) built-in ice storage
    - Electronically controlled operation, with self-diagnostic functions with external alarm lights providing operational information for early alert and fast diagnosis of operating issues
    - External Components constructed from corrosion-resistant stainless steel crafted for optimal aesthetic appeal through superior fit and finish
    - Ergonomically convenient, slanted & disappearing storage bin door
    - Front Access for Easier Maintenance
    - Front-in, front-out airflow allows for built-in installations
    - CFC Free R-404A Refrigerant
    - 120 mm (4 12/16”) legs included, extensions available as option
    - Two years manufacturer warranty
    - PWD System for remote water drain (Easy-fit installation)

    Product category Manufacturer Wolf Staff Date
    Ice Makers Scotsman David Suddaby 01-Sep-2017

  • Product update

    Introduction
    Scotsman AF103 ice maker from Wolflabs. Self Contained Ice Machine up to 108 Kg.

    Features and benefits
    - Up to 108 kg (238 lbs.) of flake ice production per day
    - Up to 30 kg (66 lbs.) built-in ice storage
    - Electronically controlled operation, with self-diagnostic functions with external alarm lights providing operational information for early alert and fast diagnosis of operating issues
    - External Components constructed from corrosion-resistant stainless steel crafted for optimal aesthetic appeal through superior fit and finish
    - Ergonomically convenient, slanted & disappearing storage bin door
    - Front Access for Easier Maintenance
    - Front-in, front-out airflow allows for built-in installations
    - CFC Free R-404A Refrigerant
    - 120 mm (4 12/16”) legs included, extensions available as option
    - Two years manufacturer warranty

    Product category Manufacturer Wolf Staff Date
    Ice Makers Scotsman David Suddaby 22-Jul-2017

  • Product update

    Introduction
    New AFC80 ice maker from Scotsman has been added. Cubelet ice machine up to 85kg.

    Features and benefits
    - Produces “Cubelet” ice (compressed ice flakes)
    - Up to 85 kg (187 lb) daily ice cubelets production
    - Up to 25 kg (55 lb) ice storage capacity
    - Resistant stainless steel exterior
    - Reliable electronic controls
    - Front panel in & out airflow (air-cooled model only) for built-in installation
    - Routine Maintenance visible alarm light on front panel
    - Ergonomically designed ice-storage access, with disappearing door
    - Ice scoop holder located within ice-storage bin
    - AgION antimicrobial agent embedded in molded plastics parts
    - CFC-free R-404A Refrigerant

    Product category Manufacturer Wolf Staff Date
    Ice Makers Scotsman David Suddaby 25-Jun-2017

  • Product update

    Introduction
    Scotsman AF80 ice maker from Wolflabs. Self contained ice machine up to 70 Kg.

    Features and benefits
    - Up to 70 kg (154 lbs.) of flake ice production per day
    - Up to 25 kg (55 lbs.) built-in ice storage
    - Electronically controlled operation, with self-diagnostic functions with external alarm lights providing operational information for early alert and fast diagnosis of operating issues
    - Pressure-based water level monitoring system may work with demineralised water as well as with standard water
    - Plug-n-play configuration right out of the box – just connect incoming water line and water discharge. 16 amps plug already installed.
    - External Components constructed from corrosion-resistant stainless steel crafted for optimal aesthetic appeal through superior fit and finish
    - Ergonomically convenient, slanted & disappearing storage bin door
    - Front Access for Easier Maintenance
    - Filter-free air cooled condenser, designed to operate without the need of air filters
    - Front-in, front-out airflow allows for built-in installations
    - CFC Free R-134 Refrigerant
    - 120 mm (4 12/16”) legs included, extensions available as option
    - Two years manufacturer warranty

    Product category Manufacturer Wolf Staff Date
    Ice Makers Scotsman David Suddaby 24-May-2017

Archived product specifications

The following information relates to archived product specifications. To see current content and products from this manufacturer, please look in the Products from this manufacturer tab.

Ice Makers - Scotsman

Scotsman’s range of flake ice makers offers machines of different capacities, both as self-contained (AF range, where the ice storage bin is in-built into the chassis of the unit) and modular version (MF range where the ice machine head needs pairing with an external storage bin). The main factor in the sizing of a flake ice machine is as always the pattern of ice demand throughout the day - particular attention should be paid to the selection of the external ice bin for modular units. The storage bin should be sized to meet peak requirements in terms of capacity, and the ice machine output should be enough to refill the bin before the next ice-demand peak starts. Flake ice is available in two different options, standard “Flake” with a higher water content, the best choice in terms of heat exchange, and “Supeflake” ice, dryer and with a more defined shape. Superflake ice melts more slowly than traditional flakes.

Technical Information

Model Af80 AF100 AF200 AF20 AF30
Dimentions H x W x D mm: 813 X 535 X 626 1006 X 592 X 622 1006 X 592 X 622 1006 X 977 X 622 1006 x 977 x 622
Max. Production/24hrs: 70kG 85kG 120kG 120kG 200Kg
Bin Capacity: 25kG 32Kg 32kG 70kG 70Kg
Weight: 51kG 63kG 65kG 88kG 82Kg
Water Consumption: 64 Litres (AS) @15°C
384 Litres (WS) @15°C
75 Litres (AS) @15°C 110 Litres (AS) @15°C
792 Litres (WS) @15°C
110 Litres (AS) @15°C
792 Litres (WS) @15°C
182 Litres (AS) @15°C
2472 Litres (WS) @15°C
Water Filter: AP3S AP3S HF20-S HF20-S HF20-S
Electricity Consumption: 7.5 kwh 9 kwh 12 kwh 12 kwh 17 kwh
Circuit Rating: 13 Amps 13 Amps 13 Amps 13 Amps 13 Amps
Voltage: 230/50/1 230/50/1 230/50/1 230/50/1 230/50/1
