Rodwell Engineering Group is a family business founded in 1945. Over the years it has expanded to a multi-faceted engineering company though natural growth, acquisition and shrewd investment. Some of Rodwell’s acquisitions have a history spanning back nearly 100 years! The company also has extensive property and business interests which ensure financial stability even throughout the most turbulent times. This broad nature of Rodwell Engineering Group’s activities plus sound financial foundations ensure that your Rodwell Autoclave is manufactured to the highest engineering standards and can be supported throughout its lifetime.

Authorised dealer for:

UK only

22/05/2020

Rodwell autoclave from Wolflabs

Product Update

Introduction
Rodwell Ensign 100DS autoclave from Wolflabs. The Ensign 100DS is a robust and reliable autoclave, ideal for any mid-sized laboratory that needs a configurable workhorse they can rely on for smooth operation.

Features and benefits
- Robust space-saving design.
- Automatic fill.
- Automatic drain and re-fill.
- Scale prevention systems.
- Waste discard system.
- High speed fan accelerated cooling.
- Vacuum air removal system.

Product Category: Autoclaves

Manufacturer: Rodwell

28/04/2020

Rodwell autoclave from Wolflabs

Product Update

Introduction

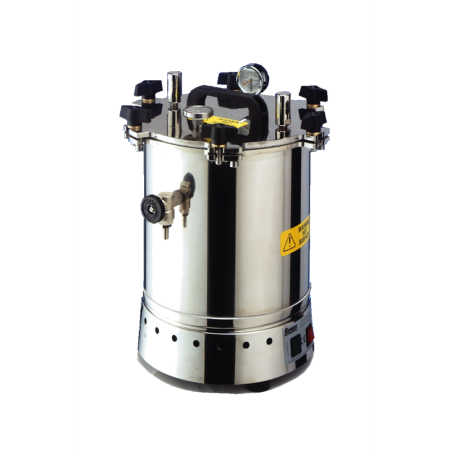

Rodwell Portaclave 22E  autoclave from Wolflabs.

Features and benefits
- Compact.
- Fully portable.
- Robust.
- Minimal maintenance.


Product Category: Autoclaves

Manufacturer: Rodwell

11/09/2019

Rodwell autoclave from Wolflabs

Product Update

Introduction
Rodwell Monarch 50 autoclave from Wolflabs.

Features and benefits
- Robust space saving design.
- Exceptionally low loading height.
- Angled control panel.
- Counterbalanced lid for easy opening.

Product Category: Autoclaves

Manufacturer: Rodwell

17/06/2019

New Rodwell autoclaves from Wolflabs

Product Update

New Portaclave 50E and Portaclave 50V from Rodwell have been added.

Features and benefits
- Robust space saving design.
- Compact and fully portable.
- No plumbing needed.
- Minimal maintenance.

Product Category: Autoclaves

Manufacturer: Rodwell

05/08/2018

New Rodwell autoclaves from Wolflabs

Product Update

Introduction
New Portaclave autoclaves from Rodwell have been added.

Features and benefits
- 15, 22 or 30 litres
- Manual or Vario digital controller
- Robust space saving design
- Single phase “plug & play”
- Compact and fully portable
- No plumbing needed
- Minimal Maintenance
- Grade 316 stainless steel chamber
- Suitable for culture media

Product Category: Autoclaves

Manufacturer: Rodwell

Autoclaves - Bench-top - Rodwell

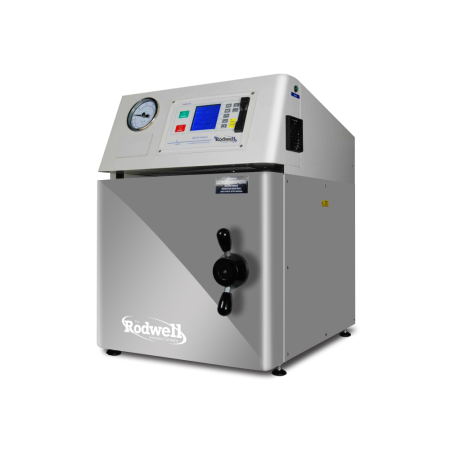

The Phoenix is the ideal compact autoclave for any small scale operation that needs reliable functionality without losing valuable Space.

Design Features
• 40 or 60 litres
• MP25 Controller
• Robust space-saving design
• Single Phase 'Plug & Play’
• Capacity of up to 13 x 1 litre bottles
• Phoenix 40 fits on standard bench
• Integral drip tray
• Grade 316 stainless steel chamber
• Anti door bolt over tight mechanism
• Complete versatility for almost any application

Optional Accessories
• Loading Baskets
• Waste Discard System
• Fan Assisted High Speed Cooling
• Condense Collector, which eliminates a drain requirement.
• Air removal HEPA filter
• Data Printers & Chart Recorders
• Vacuum & Drying options
• Anti Lime scale system

.

Technical Information

Model: Phoenix 40 Phoenix 60
Autoclave Weight 108 kg 115 kg
Export Case Size 720w x 860h x 850d 720w x 860h x 1030d
Overall Dimensions 550w x 790h x 710d 550w x 790h x 860d
Chamber Dimensions 350 Ø x 460d 350 Ø x 600d
Water requirement 4.55 litres 6.80 litres
Max working temperature 138° C 138° C
Min working temperature 7° C 7° C
Min ambient temperature 11° C 11° C
Max ambient temperature 28° C 28° C
Max hydraulic pressure 4.41 Bar 4.41 Bar
Max working pressure 2.62 Bar 2.62 Bar
Max working vacuum Minus 1 Bar Minus 1 Bar
Electrical site requirement: 1 RCD 13amp Socket outlet
Voltage 230 Volts 230 Volts
Phase requirement 1ph/N 50/60 hz 1ph/N 50/60 hz
Power consumption  3kw 3kw
Fuse rating 13amp 13amp




Autoclaves - Floor Standing - Rodwell

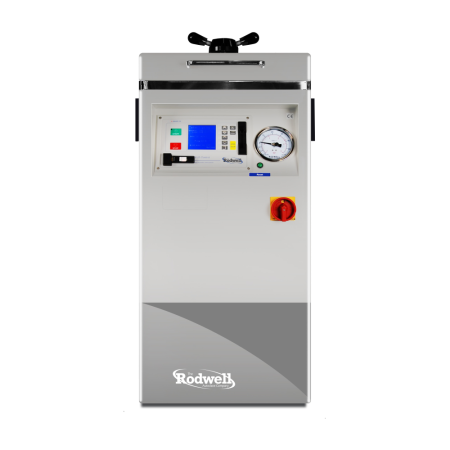

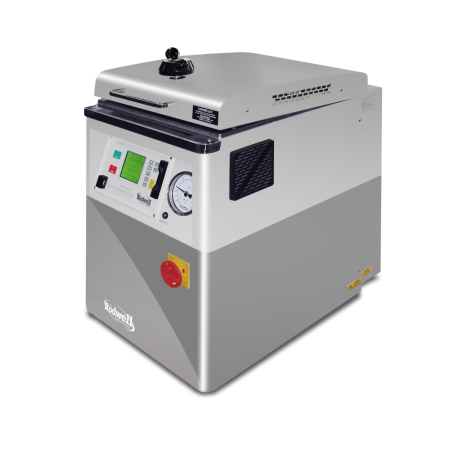

The Monarch 50 is ideal as an underbench solution, and the Monarch 75 is perfect for large vessels such as fermentors.


Design Features
• 50 or 75 litres
• MP25 Controller
• Monarch 50 fits underneath a standard laboratory bench
• Angled control panel
• Robust space saving design
• Single phase “Plug & play”
• Exceptionally low loading height
• Excellent loading capacity for up to 3 baskets.
• Counterbalanced lid for easy opening

Optional Accessories
• Additional loading baskets
• Waste Discard system
• Fan Assisted Cooling
• Condense collector which eliminates a drain requirement.
• HEPA filter
• Data logging options (paper & paperless)
• 4kw high speed heating (MON75)
• 3kw heater for portability (MON50).

Technical Information

Model: Monarch 50 Monarch 75
Autoclave Weight 120 kg 160 kg
Export Case Size 630w x 1110h x 890d 630w x 1330h x 890d
Overall Dimensions 500w x 785h x 607d 500w x 1095h x 607d
Chamber Dimensions 350 Ø x 520d 350 Ø x 780d
Loading Height 640mm 950mm
Useable chamber capacity 50 litres 75 litres
Water requirement 8 litres 8 litres
Max working temperature 138° C 138° C
Min working temperature 7° C 7° C
Min ambient temperature 11° C 11° C
Max ambient temperature 28° C 28° C
Max hydraulic pressure 4.41 Bar 4.41 Bar
Max working pressure 2.62 Bar 2.62 Bar
Max working vacuum Minus 1 Bar Minus 1 Bar
Electrical site requirement: Switched RCD : 13amp (Mon50) 20amp (Mon75).
Voltage 230 Volts 230 Volts
Phase requirement 1ph/N 50/60 hz 1ph/N 50/60 hz
Power consumption 3kw 4kw
Fuse rating 13amp 20amp




Autoclaves - Floor Standing - Rodwell

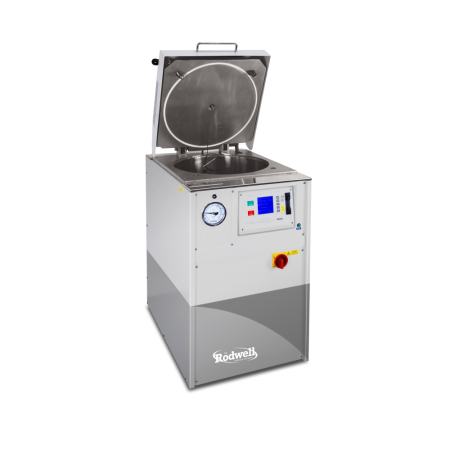

The Ensign is a robust and reliable autoclave, ideal for any mid-sized laboratory that needs a configurable workhorse they can rely on for smooth operation.

Design Features
• 100 or 125 litre
• MP 25 Control
• Robust space-saving design

Optional Accessories
• Additional loading baskets
• Automatic Fill
• Automatic drain and re-fill
• Waste discard system
• High speed fan accelerated cooling
• Loading step for 125 litre variant
• Range of loading hoists
• Vacuum air removal systems
• Range of cycle recording systems
• Air removal hepa filter
• Scale prevention systems.

Technical Information

Model: Ensign 100 Ensign 125
Autoclave Weight 320 kg 335 kg
Export Case Size 740w x 1370h x 990d 740w x 1530h x 990d
Overall Dimensions 580w x 1100h x 830d 580w x 1260h x 830d
Chamber Dimensions 460 Ø x 610 deep 460 Ø x 870 deep
Useable chamber capacity 98.75 litres 124.45 litres
Max working temperature 138° C 138° C
Min working temperature 7° C 7° C
Min ambient temperature 11º C 11º C
Max ambient temperature 28º C 28º C
Max hydraulic pressure 4.14 Bar 4.14 Bar
Max working pressure 2.26 Bar 2.26 Bar
Max working vacuum Minus 1 Bar Minus 1 Bar
Electrical site requirement: Switched RCD Required
Mains steam supply 35lb p/h @ 2.67bar 35lb p/h @ 2.67bar
Drain requirement 150º 35mm copper pipe 150º 35mm copper pipe
Voltage 230 Volts 230 Volts
Phase requirement 1ph/N 50/60hz 1ph/N 50/60hz
Power consumption 0.5kw. 0.5kw.
Fuse rating 2amp 2amp




Autoclaves - Floor Standing - Rodwell

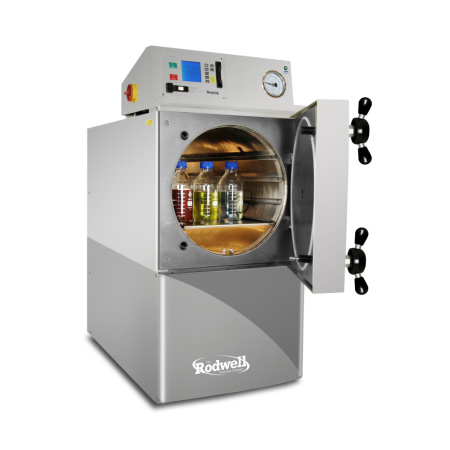

The Ambassador is a heavy duty autoclave that is designed to meet the needs of any busy laboratory. With nine different variants to suit all your needs.


Ambassador DS

Design Features
• 100,125 &158 litre options
• MP25 Control
• Robust space-saving design

Optional Accessories
• Back up integrated emergency boiler
• Air ballasting
• High speed fan accelerated cooling
• Range of cycle recording systems
• Air removal hepa filter
• Loading Trolley
• Additional Baskets and trays
• Drain line condenser for plastic drains
• Vacuum air removal system

Ambassador E

Design Features
• 100,125 &158 litre options
• MP25 Control
• Single or 3 phase option for 100 litre model.
• Robust space-saving design

Optional Accessories
• Automatic fill
• Automatic drain and re-fill
• Scale prevention systems
• Waste discard system
• High speed fan accelerated cooling
• Range of cycle recording systems
• Vacuum air removal
• Integrated steam generator
• Loading Trolley
• Additional Baskets and trays.

Technical Information

Model: Ambassador 100E Ambassador 125E Ambassador 125DS Ambassador 158E Ambassador 158DS
Autoclave Weight 200 kg 205 kg 205 kg 210 kg 210 kg
Export Case Size 760w x 1590h x 1410d 760w x 1590h x 1410d 760w x 1590h x 1410d 760w x 1590h x1410d 760w x 1590h x1410d
Overall Dimensions 650w x 1240h x 1160d 650w x 1240h x 1160d 650w x 1240h x 1160d 650w x 1240h x1310d 650w x 1240h x1310d
Chamber Dimensions 460 Ø x 610d 460 Ø x 760d 460 Ø x 760d 460 Ø x 960d 460 Ø x 960d
Useable chamber capacity 82 litres 107 litres 107 litres 135 litres 135 litres
Water requirement 18 litres 18 litres - 23 litres -
Max working temperature 138° C 138° C 138° C 138° C 138° C
Min working temperature 7° C 7° C 7° C 7° C 7° C
Min ambient temperature 11° C 11° C 11° C 11° C 11° C
Max ambient temperature 28° C 28° C 28° C 28° C 28° C
Max hydraulic pressure 4.14 Bar 4.14 Bar 4.14 Bar 4.14 Bar 4.14 Bar
Max working pressure 2.62 Bar 2.62 Bar 2.62 Bar 2.62 Bar 2.62 Bar
Max working vacuum Minus 1 Bar Minus 1 Bar Minus 1 Bar Minus 1 Bar Minus 1 Bar
Electrical site requirement: 16AMP switched RCD Required Switched RCD required 16AMP switched RCD Required Switched RCD required
Mains steam supply - - 35lb p/h @ 2.67bar - 35lb p/h @ 2.67bar
Drain requirement 150°C 35mmØ copper 150°C 35mmØ copper 150°C 35mmØ copper 150°C 35mmØ copper 150°C 35mmØ copper
Voltage 230/415 Volts 415 Volts 230 Volts 415 Volts 230 Volts
Phase requirement 1ph/3ph/N 50/60 hz 3ph/N 50/60 hz 1ph/N 50/60 hz 3ph/N 50/60 hz 1ph/N 50/60 hz
Power consumption 6kw/9kw 9kw 1kw 9kw 1kw
Fuse rating 16amp 16amp 5amp 16amp 5amp
