Quantum Production Portable Oxygen Deficiency Monitor QTS32I
The QTS32I monitors the oxygen concentration in the air surrounding its oxygen sensor. This concentration is displayed on a liquid crystal display. The oxygen sensor is fitted with a 5 metre long lead to allow it to be lowered into confined spaces, ideal to fit into a glove box to monitor for oxygen deficient atmospheres.
Specifications
Enclosure:
Material - Polycarbonate
Dimensions - 170 (high) x 80 (wide) x 80 (deep)
Weight - Less than 1Kg
Mounting - Suitable for belt fixing and supplied with shoulder strap
Protection - Designed to be water and dust proof to IP65
Indications - Digital liquid crystal display
Oxygen concentration - 0 - 25%
Alarm 1 - Red high brightness l.e.d.
Alarm 2 - Red high brightness l.e.d.
Audible alarm - Pulsed, 3.5 kHz 80 - 90 dBA. Audible alarm can operate with either or both alarms.
ON/OFF switch - Waterproofed rocker switch
Battery - 9V. alkaline PP3(MN1604). Unit operates typically for 300 hours continuously in the absence of alarms.
Sensor - Advanced long-life oxygen sensor with a 12 month life under normal conditions.
Sensor lead - Standard length 5 metres. (lengths up to 100 metres available on request)
Sensor dimensions - Length 70mm, diameter 35mm.
Sensor connection - Waterproofed twist-on connector
Monitors - Oxygen Deficiency - Quantum
|
|

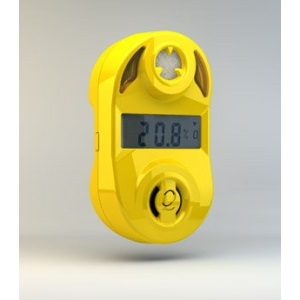

A personal, compact and extremely robust personal oxygen monitor, with two year long life sensor and large clear LCD display, for continuous monitoring of oxygen concentrations in surrounding air. The GasPod offers dual protection for the user from the potential hazard of oxygen deficiency in the presence of nitrogen, argon and helium together with monitoring of oxygen enrichment.
Applications
The GasPod personal oxygen monitor provides four alarm settings for both oxygen deficiency and enrichment monitoring. The monitor continuously checks the concentration of oxygen in the surrounding air and provides both visual and audible alarms should the detected concentration of oxygen fall below the pre-set low alarms or above the pre-set high alarm levels. The monitor contains a long life two year oxygen sensor and battery pack that provide a continuous two year operation.
NB Oxygen deficiency monitors must not be used for the detection of carbon dioxide gas.
Key features
• Confidence heartbeat & service indication on LCD display with large clear indication for maximum user visibility
• Simple automated push button calibration in fresh air
• Different audible, visual and vibration indications for two primary warning alarms and two critical alarm settings
• Rugged highly visible enclosure and durable clip to allow user to attach the GasPod securely to garments
• Loud audible alarm for maximum volume
• No requirement for charging. Two year sensor/battery pack which cannot be switched off protecting the user at all times
• Live readings with no sample interval for rapid alarm response times
• Oxygen concentration reading suppressed in alarm condition to avoid user interpretation of safe levels (continuous reading available upon request)
|
Quantum Production Personal Oxygen Deficiency Monitor PM3200
Personal pocket sized oxygen deficiency monitor with LCD Display.
Cannot be switched off and provides up to two years of continuous operation after which the sensor and battery
can be replaced by returning in the post.
TECHNICAL SPECIFICATION
Dimensions 125mm (L) x 65mm (W) X 23mm (H)- fits into pocket
Weight 200gms approx
Fixings Clip for pocket or belt mounting
Alarms HIGH ALARM - flashing red l.e.d. and audible bleeper
(normally set at 22%)
LOW ALARM - flashing red l.e.d. and audible bleeper
(normally set at 19%)
Other alarm settings available
Read-out LCD display to 0.01
Calibration Test By simple adjustment in fresh air using LCD as reference point
Quantum Production Repeater Modules for QFM330 Oxygen Monitor
Easy to install wall mounted range of repeater modules which connect to the QFM330 Wall Mounted Oxygen Monitor to provide warning to the user regarding the safety of the monitored area with visual and audible alarms when oxygen concentrations in the air surrounding the monitor fall outside pre-set levels
Applications
Quantum repeater modules allow customisation of each system to suit every application. The range offers a QRD330 battery powered repeater with LCD display to show oxygen concentrations and provide warning alarms in a safe location away from danger. The QBA330 gives a highly visual Red/Amber Green traffic light warning of the safety of the monitored area. CryoPanel extends gas monitoring at a single panel to include many other types of cryogenic equipment including freezer alarms, fan interfaces, safety valves and lone worker alarms. CryoMimic provides a fully customised graphic representation of the monitored area with built in visual alarms of gas & temperature alarms
Features
QRD330
-
Large, clear easy to read, battery powered repeater with LCD display for safe readings of oxygen concentrations away from the monitored point
-
Built in visual and audible alarms with separate low and critical alarm states
QBA330
CRYOPANEL
CRYOMIMIC
Monitors - Oxygen Deficiency - Quantum
|
|
Easy-to-install, wall-mounted, modular oxygen deficiency or enrichment monitor and warning alarm system, providing continuous monitoring of oxygen concentration in the surrounding air and both visual and audible alarms when these fall outside pre-set levels.
Applications
The QFM330 Oxygen Monitor may be used as a stand-alone device with its own audible and visual alarms, or linked to other repeater modules to mimic the condition of the monitor. Repeater modules can
be connected to the QFM330 and located outside the monitored area to warn users at the point of entry. The system can be fully customised to allow multiple location monitoring and further modules can be easily added at a later date to expand the scope of the system.
NB Oxygen deficiency monitors must not be used for the detection of carbon dioxide gas.
Key features
• Oxygen monitor unit operates continuously for two years and cannot be switched off, giving maximum user protection
• Built-in visual and audible alarms with separate ‘low’ and ‘critical’ alarm states
• Internal Audible alarm is 85dBA at 30cm
• Long life oxygen sensors provide 24 months operation in normal use
• Audible/visual alarms at the monitoring point not only at a remote location
• Oxygen enrichment, deficiency and high/low monitoring options
• Simple & secure connections to repeater modules using a pre-wired plug in connector (up to a maximum of 100m)
• Modular system which allows the user to completely design and customise the system to suit his exact requirements
• Suitable for use in high magnetic fields
Technical Information
|
Model
|
QFM330 |
| Dimensions |
H150 x W90 x D55 mm |
| Weight |
550g |
| L.E.D.'s |
Low alarm, critical low alarm, battery
warning, calibration |
| Typical Alarm Levels |
19% 02, 18% 02*- 85dBA at 30cm |
* Alarm levels are factory pre-set and may be varied according to industry best practice levels.
|
|
Monitors - Carbon Dioxide - Quantum
|
|
Personal Carbon Dioxide Monitor and Alarm
A personal compact carbon dioxide monitor with LCD display, for continuous monitoring of carbon dioxide concentrations in surrounding air.
Key Features
• Long life rechargeable battery
• Small compact size
• Easily calibrated by user without using calibration gases
• No sensors or consumables to replace
• Rugged, durable, weather and dust resistant
• Extremely simple to operate
• 16 hour life of continuous operation
• Latest in infra-red technology
• Lightweight and easy to use
• LCD display and visual warnings on top for optimal viewing by user and operational confirmation of continuous operation.
• Alarm LED for gas and low battery (service)
• Alarm sited along side LCD display for optimal visibility.
• Operates continuously for sixteen hours typically under normal ambient conditions after full charge
• Compact, lightweight unit – 230g approx
• Belt clip and battery charger provided. Car charger leads also available.
• Unit represents the latest in infra-red technology for carbon dioxide personal gas monitoring.
• The unit can be charged using a car or mains charger for maximum convenience.
• Provides different visual and audible alarms should the detected concentration of carbon dioxide rise above the pre - set low alarm ' WARNING' level or above the pre - set high alarm ' DANGER' level.
• Concentrations of up to 5% are shown on the LCD display.
• Unit can be calibrated in fresh air with an auto-calibration adjustment without needing gas.
• If the battery runs low, then audible and visual warnings are supplied
Technical Information
| Alarms |
Two tamperproof adjustable alarm thresholds – factory set at
1.5% and 3% with different audible responses at each level. |
| Response Speed |
10 seconds typical |
| Readout |
display 3 digit LCD |
| Detection Principle |
Infra Red absorption |
| Calibration Adjust |
Adjustment on side of unit in fresh air |
| Fixings |
Belt clip |
| Dimensions |
125 x 33 x 68mm |
| Weight |
230gm approx
|
|
