LEEC

Laboratory products from this manufacturer

We believe that the key elements essential in achieving our objectives are the provision of highly skilled personnel, the right materials, equipment, clearly defined methods of working and continual communication and the promotion of quality throughout the company. We at LEEC are committed to this policy and are convinced it will lead to pride in workmanship, pride in the company and pride in our accomplishments.

Products from this manufacturer Number of products

Incubators

4 products >

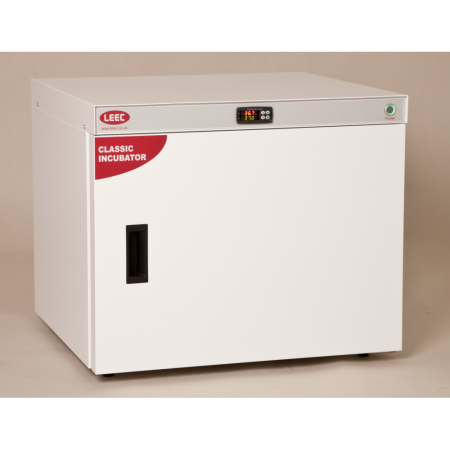

C100  C100

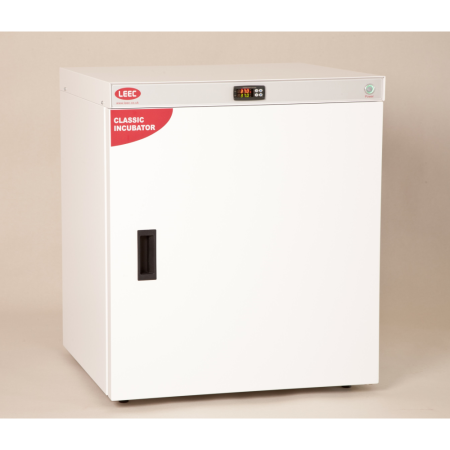

C157  C157

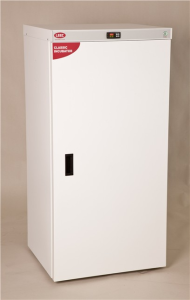

C330  C330

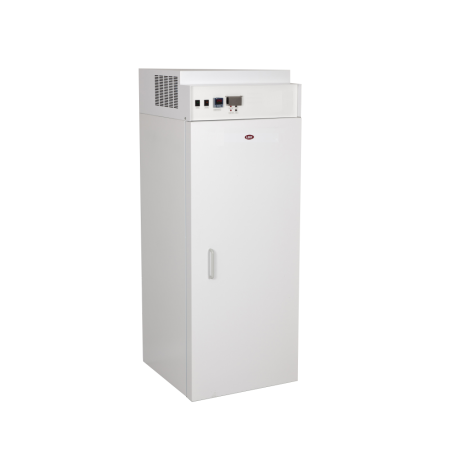

P33  P33

Incubators - CO2 And Multigas

13 products >

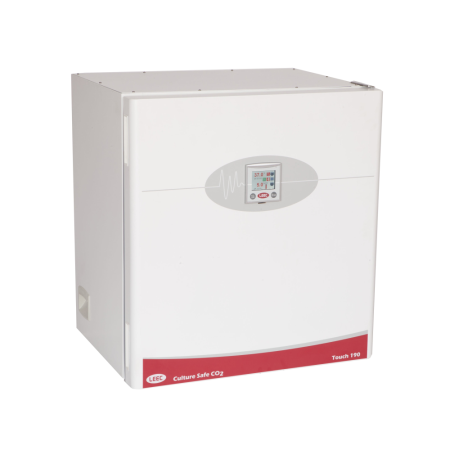

T190  CultureSafe T190

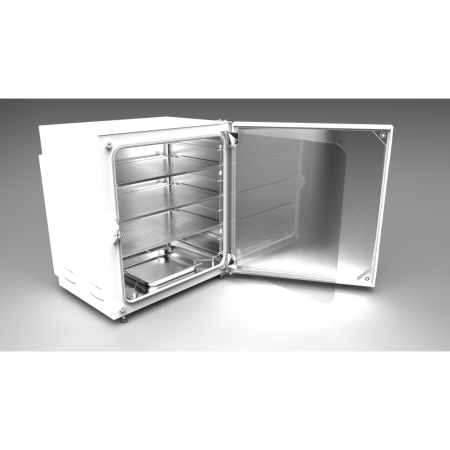

T190S  CultureSafe T190S

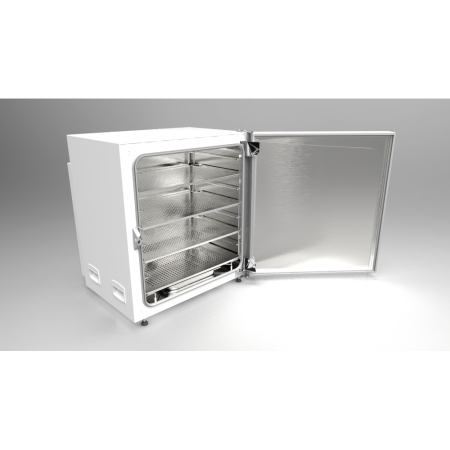

P190  CultureSafe Precision P190

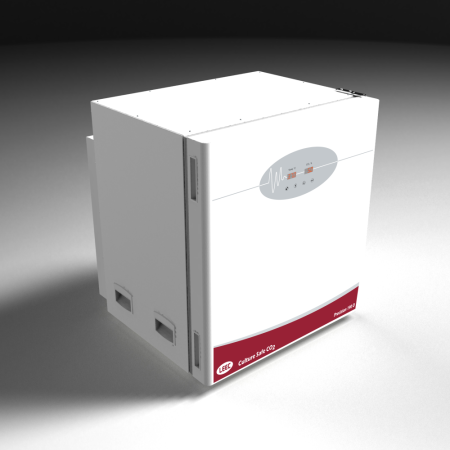

P190D  CultureSafe Precision P190D
GA2000-C3  GA2000-C3
GA3000-C3  GA3000-C3

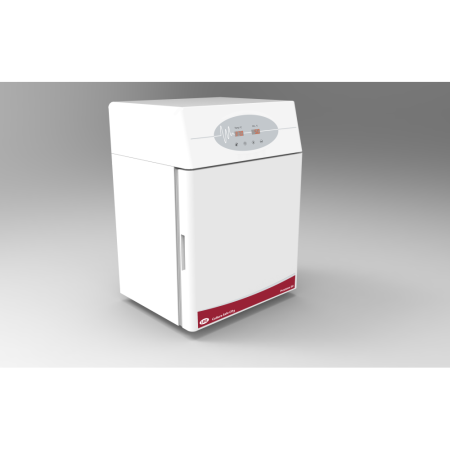

P50  Mini CultureSafe P50

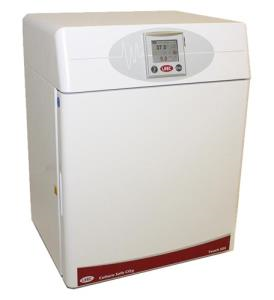

T50S  Mini CultureSafe T50S

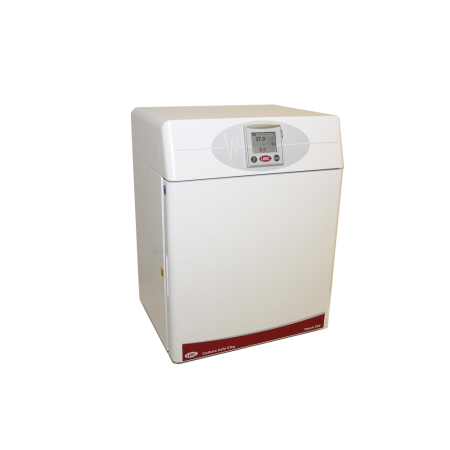

T50  Mini CultureSafe T50
GA2010  GA2010
GA2000  GA2000
GA3010  GA3010
GA3000  GA3000

Incubators - Cooled

3 products >

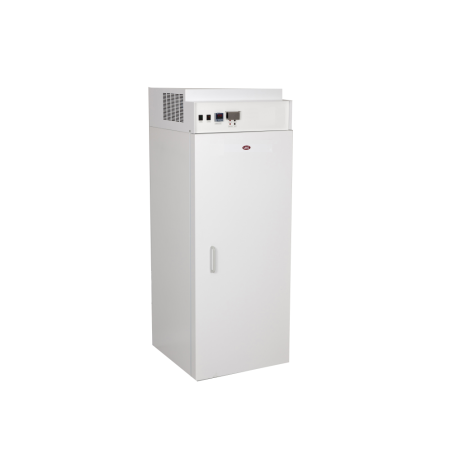

P33C  P33C

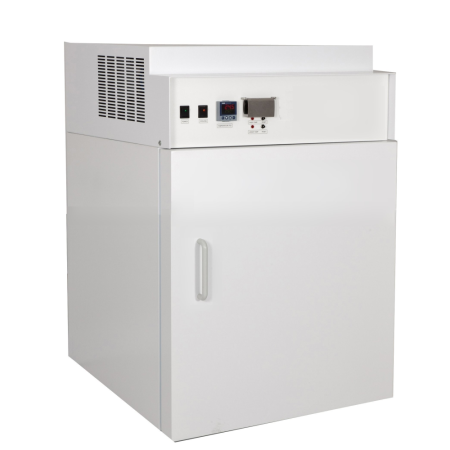

P2C  P2C
P3C  P3C

Incubators - Cooled for Drosophila/Fruit Fly Research

5 products >
PL2-FFM  PL2 with fruit fly modification
PL3-FFM  PL3 with fruit fly modification

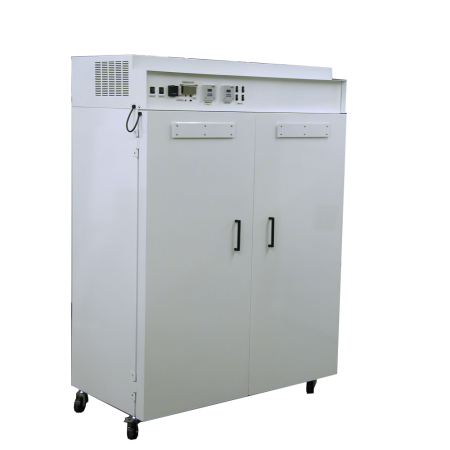

PL33-FFM  PL33 with fruit fly modification

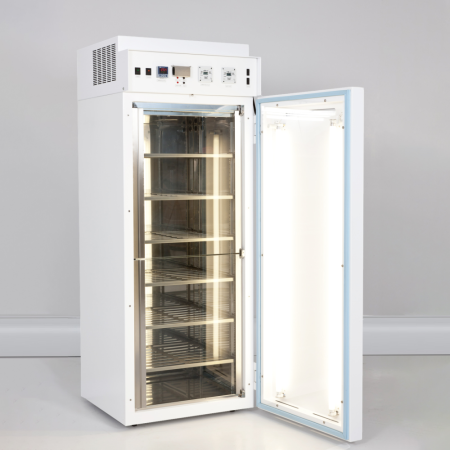

SL2-FFM  SL2 with fruit fly modification

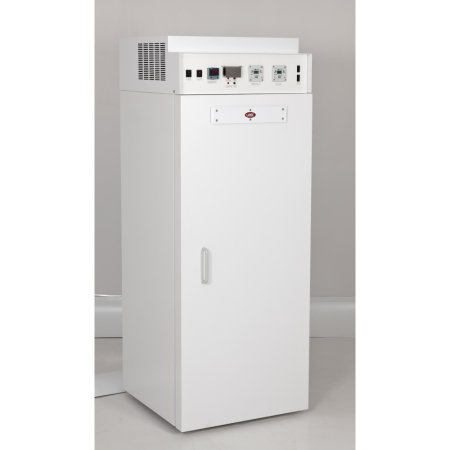

SL3-FFM  SL3 with fruit fly modification

Incubators - Plant Growth Cabinets

5 products >
SL3  SL3

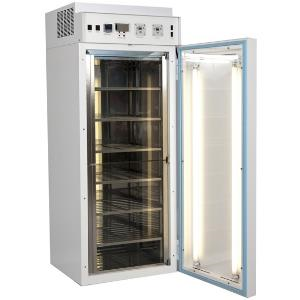

PL2  PL2
PL33  PL33
SL2  SL2
PL3  PL3

Incubators - Stability Chambers

6 products >
SFC2C  SFC2C

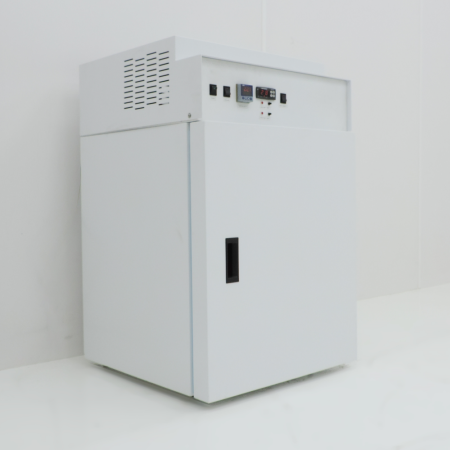

SFC2  SFC2
SFC3C  SFC3C

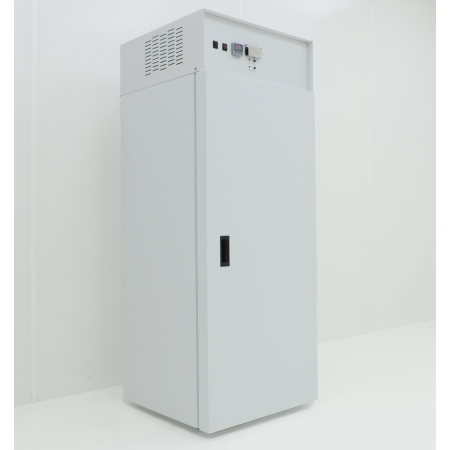

SFC3  SFC3
SFC3C/RH  SFC3C/RH
SFC2C/RH  SFC2C/RH

Incubators - Warming Cabinets

3 products >

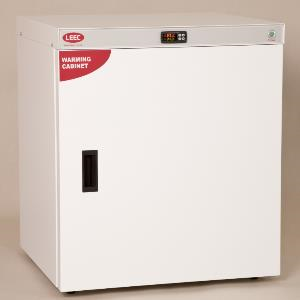

W157  W157

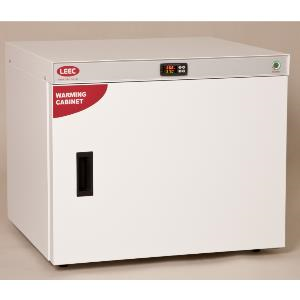

W100  W100

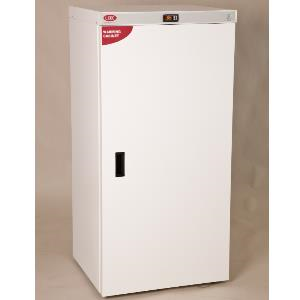

W330  W330

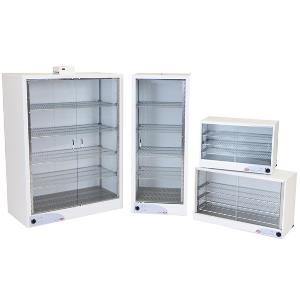

Ovens - Drying/Warming

15 products >
BX1  BX1

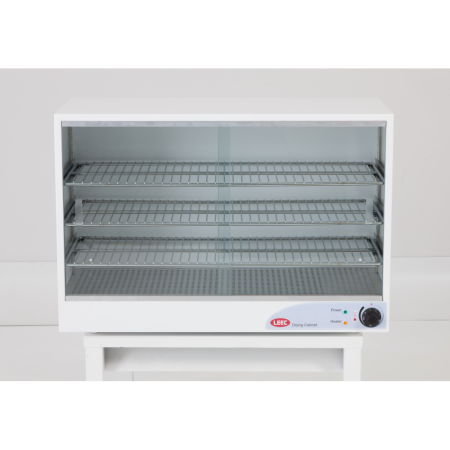

SS  SS

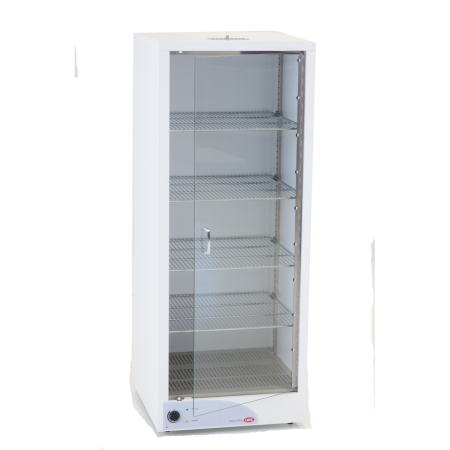

F2  F2

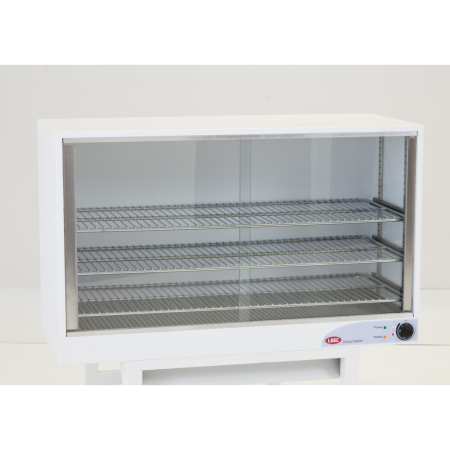

LS  LS
BC2  BC2
B2  B2
FX1  FX1
BC1  BC1
F1  F1

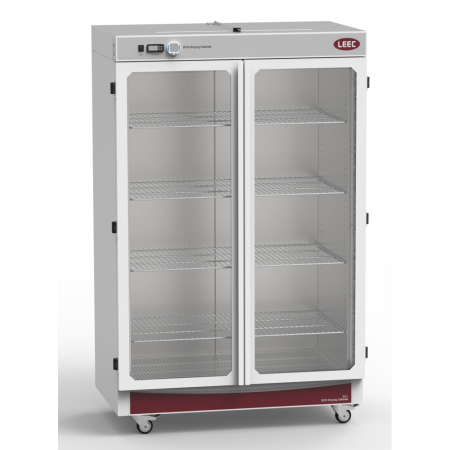

FC1  FC1

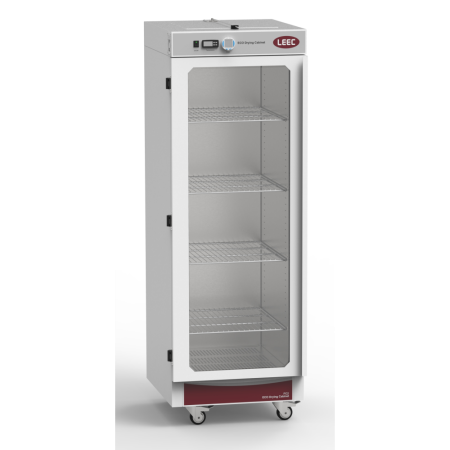

FC2  FC2
B1  B1
FCX1  FCX1
FX2  FX2
BX2  BX2

Other laboratory products -

67 products >
DA  Hand held digital anemometer model LCA301
SHW  Spare stainless steel shelf and runners for W100 W157 or W3
DTC  Automatic dual temperature cycling (24 hour or 7 day) factor
SD4  Solid aluminium door for 255 litre drying cabinet
ADF  Automatic defrost (PxxC models only) factory fitted
L13  Spare mesh shelf and brackets for F2 FX2 B2 and BX2 models
R06  Valve LEEC in line CO2 reducing with pressure gauge 2 to 30 p.s.
8ID  Door LEEC 8 inner option available on all 190L models
PRV2  Valve LEEC two-stage CO2 cylinder pressure reducing with gauges
SD3  Pair of solid aluminium doors for 480 litre drying cabinet
PP  Internal power point factory fitted (13 Amp UK type)
WST7  Stacking kit for Classic Incubators
SFC3C/HH  320 litre cooled humidity cabinet +5°C to +60°C 0% to 98%R
L12  Spare mesh shelf and brackets for FC1 FCX1 and BC1 models
L1  Shelf LEEC spare and runners for any GA model, P2C or P3C
L11  Spare mesh shelf and brackets for F1 FX1 B1 and BX1 models
WST6  Stand with shelf for C100 or C157 (950mm high)
PRVN  Valve LEEC N2 cylinder pressure reducing with gauges
WST9  Stainless steel wall mounting system for C100 or W100
L16  Spare mesh shelf and brackets for model SS
/RH  Humidity control system LEEC ultrasonic, 40%RH to 95%RH, factory fitted. Can only be added to models beginning with SL2 or SL3.
PTSK  Stacking kit LEEC for stacking 2 x T190 or P190
SD1  Pair of solid aluminium doors for 1000 litre drying cabinet
WL4E  1 metre wide. Digital control system. Fan speed controller.
L23  Spare stainless steel shelf and runners for any SF model
AP12  12mm access port (factory fitted option)
C3  LEEC C3 Self Contained Recirculating Cooler Units1/4 h.p. capacity complete with insulated hoses
WL4ES  1.5 metres wide. Digital control system. Fan speed controlle
AP40  40mm access port (factory fitted option)
SD2  Solid aluminium door for 540 litre drying cabinet
ST5  910mm high metal stand with adjustable feet for model WL4E.
RTX  4-20mA analogue output
L3  Spare shelf and runners for P33
OXY 1-19  1-19% Oxygen Control LEEC (available on Touch 190S and Touch 50S models)
L14  Spare mesh shelf and brackets for FC2 and BC2 models
6ID  Door LEEC 6 inner option available on all 50L models
MAP2  Temperature and humidity mapping NAMAS traceable (prior to
RHDISP  Display LEEC %RH available on all touch screen models
HE2  Boost heating element and switch for FC2 and FX2
HD  Heated outer door for any SF model
L8  Shelf and runners LEEC mesh, stainless steel, spare for PL2, SL2, PL3 and SL3
PTST1  Platform trolley LEEC wheeled with 4 x castors
L17  Shelf and runners LEEC mesh, stainless steel, spare for PL33
C4  1/3 h.p. capacity complete with insulated hoses
PRV  Valve LEEC single-stage CO2 cylinder pressure reducing with gauge
HE3  Boost heating element and switch for BC1 and BX1
SHC  Spare stainless steel shelf and runners for C100 C157 or C3
SD5  Pair of solid aluminium doors LS or SS drying cabinet
HE4  Boost heating element and switch for BC2 and BX2
3ID  3 inner door LEEC option available on all 50L models
PNEU  Automatic change over unit LEEC for two cylinders CO2 or N2
MAP1  Temperature or humidity mapping NAMAS traceable (prior to d
SFC2C/HH  150 litre cooled humidity cabinet +5°C to +60°C 0% to 98%R
WST1  Wheeled platform for Classic Incubators
HE1  Boost heating element and switch for FC1 FX1 and FCX1
ETH  Ethernet Communication Port
RETX  4-20mA retransmit
PTSH  Stainless steel shelf for 190 litre Culture Safe models
PTSK3  Wheeled stacking frame for 2 x P50 or 2 x T50 or 2 x T50S
TUBE1  CO2 tubing, 8mm internal / 13mm external (per metre)
TUBE2  CO2 tubing, 4mm internal / 6mm external (per metre)
LEE001-CARR01  Carriage cost LEEC to goods in only. (Delivery to point of use is available on request but the price may be higher.)
DDR  Digital Data Recorder, temperature and humidity (factory fitted)
L15  Spare mesh shelf and brackets for model LS
ST1  Platform LEEC wheeled for one incubator
ST2  Stand LEEC for stacking two incubators
ST3  Stand LEEC with locking wheels for stacking two incubators

Archived product specifications

The following information relates to archived product specifications. To see current content and products from this manufacturer, please look in the Products from this manufacturer tab.

Incubators - Genlab



CONSTRUCTION

The new LEEC Classic Range of incubators have fully sealed chambers manufactured from polished stainless steel with rounded corners for easy cleaning. The outer cabinet is manufactured from stainless steel, and has a tough powder coat paint finish. This gives the incubator exceptional corrosion resistance. An inner glass viewing door closes positively onto a silicone gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A rear access port allows temperature monitoring probes to be inserted safely into the incubator chamber.

HEATING

New profiled resistive wire heating elements and high performance insulation ensure optimum temperature control. All models have gentle fan assisted air circulation. This ensures even temperature distribution throughout the chamber. Fast temperature recovery keeps heat loss to a minimum after door opening.

TEMPERATURE CONTROL

The latest in microprocessor temperature controller technology gives this incubator range excellent temperature stability to within 0.1°C. Fuzzy Logic and Auto Tune features allow the controller to adapt to each chamber size, optimising their performance and accuracy. The controller is simple to use, with target and actual temperatures being displayed in real time on a two-colour digital display.

SAFETY

Over and under temperature alarm thresholds can be programmed into the controller. An independent safety cut out disconnects the heating elements should an over temperature condition occur. The controller can be password protected too, stopping any unauthorised adjustments to the Set Point and alarm thresholds.

WARRANTY

LEEC Classic Incubators are covered by a 1 year warranty.

Technical Specifications

SPECIFICATION

  C100 C157 C330
External Dimensions

(H x W x D mm)

582 x 684 x 620 790 x 684 x 620  1417 x 684 x 620
Internal Dimensions

(H x W x D mm)

 365 x 550 x 500

573 x 550 x 500

1200 x 550 x 500

Chamber Capacity

(Litres)

100 157 330
Shelves Included 2 4 6
Power Rating

(watts)

240 (max) 280 (max) 440 (max)
Temperature Range At least 5°C

above ambient to +60°C

At least 5°C

above ambient to +60°C

At least 5°C

above ambient to +60°C

Temperature Control Typically +/-0.1°C at 37°C

Typically +/-0.1°C at 37°C Typically +/-0.1°C at 37°C
Temperature Variation Typically better than +/-0.2°C at 37°C Typically better than +/-0.2°C at 37°C Typically better than +/-0.2°C at 37°C
Temperature Recovery  ≈ 2 minutes

 ≈ 3 minutes

 ≈ 4 minutes


Humidity cabinet LEEC salt type

Temperature Control
Monitoring and control of both heating and cooling functions is performed with great accuracy, and achieves typical temperature stability of ±0.5°C.
The LED digital display allows the temperature performance to be easily verified. A digitally set overtemp- erature safety cutout is fitted to all models.


Humidity Control (Ultrasonic Type)
All /RH models are fitted with an ultrasonic fine mist humidity generator located in the airflow. The microprocessor controller accurately monitors and adjusts the chamber humidity level. All RH models are able to dehumidify as well as increase humidity. It should be noted that not all combinations of humidity and temperature are possible. Temperature and humidity performance varies according to the combination selected.



Technical Specifications

Models SFC2 SFC3 SFC2C SFC3C
Temperature

                         Range**
                         Control
                         Variation



+5°C to +50°C
±0.5°C at +20°C
±0.5°C at +20°C


Humidity

                         Range
                         Control

30% to 98% RH

Typically ±3%RH at +20°C operating temperature

40% to 95% RH

Typically ±3%RH at +20°C operating temperature

Dimensions (Max. mm)

                     External
                          H
                          W
                          D

1075
635
660

1745
635
660

1980
710
950

1980
1420
800

  Internal
                          H
                          W
                          D
590
510
490
1275
510
490
1480
590
650
1480
1300
650
Chamber Capacity (L)
Shelves Supplied
Weight (kg)
Power Rating (W)





Humidity cabinet LEEC salt type



Temperature Control
Monitoring and control of both heating and cooling functions is performed with great accuracy, and achieves typical temperature stability of ±0.5°C.
The LED digital display allows the temperature performance to be easily verified. A digitally set overtemp- erature safety cutout is fitted to all models.


Humidity Control (Salt Solution Type)
Salts- type SF models rely on forced evaporation from trays containing known saturated salt solutions. This is a simple and reliable method of humidity control.



Technical Specifications

Models SFC2 SFC3 SFC2C SFC3C
Temperature

                         Range**
                         Control
                         Variation



Ambient +5°C to +60°C*
±0.2°C at +37°C
±0.5°C at +37°C



+5°C to +60°C
±0.2°C at +20°C
±0.5°C at +20°C

Humidity

                         Range
                         Control



0% to 98% using appropriate saturated salt solution

Dimensions (Max. mm)

                     External
                          H
                          W
                          D




880
635
660



1550
635
660




1075
635
660




1745
635
660

  Internal
                          H
                          W
                          D

590
510
490

1275
510
490

590
510
490

1275
510
490
Chamber Capacity (L) 150 320 150 320
Shelves Supplied 4 6 4 6
Weight (kg) 75 120 100 145
Power Rating (W) 200 250 800 850

Incubators - CO2 and Multigas - LEEC



CONSTRUCTION

The new LEEC Culture Safe CO2 precision incubator has a fully sealed, electro-polished, one-piece, deep drawn chamber, manufactured from the high grade 304 stainless steel. The outer cabinet is manufactured from stainless steel, and has an anti-bacterial powder coat paint finish. This gives the CO2 incubator exceptional corrosion and contamination resistance. An inner glass viewing door closes positively onto an inert (no VOC's) gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A side access port allows temperature monitoring probes to be inserted safely into the CO2 incubator chamber.

UNIQUE HEATING

A new 6 sided direct heating system with high performance insulation ensure the highest standards in temperature control and stability. The independent outer door heater ensures that the inner glass door remains condensate free.

DECONTAMINATION

We have designed this incubator to eliminate contamination inside the chamber. Features include fan-less air circulation, a crevice-free, electro-polished, one-piece chamber, HEPA filtered gas inlet and a market leading 160°C dry-heat decontamination option (P190D). Externally, the paint contains an active anti-bacterial biocide.

CONTROL SYSTEM

The multi-function, PID touch screen module controls the temperature, CO2, and alarm functions (including low gas and power failure) and provides real time data logging in graphical and text format. The module also allows data to be downloaded. An independent safety cut out disconnects the heating system should an over temperature condition occur. The module can be password protected too, stopping any unauthorised adjustment to the control systems.


Technical Information

TECHNICAL SPECIFICATIONS

  TEMPERATURE MANAGEMENT CO2 GAS MANAGEMENT DIMENSIONS  ( w x h x d)

Range 5°C above ambient to +60°C Range  0% to 20%

Chamber (mm)

632 x 686 x 440

Control 0.1°C Control  ±0.1% Chamber (inches)

24.9 x 27 x 17.3

Stability  ± 0.10°C @ 37°C Stability

 ±0.2% External (mm)

 765 x 862 x 734

Uniformity  ± 0.25°C @ 37°C Uniformity  ±0.2%    External (inches)

 30.1 x 34 x 28.9

 ELECTRICAL   CO2Sensor

IR

Shipping Container (mm) 925 x 1080 x 850
 Voltage  230 vac 50/60HZ

COinlet pressure

min 5 psi max 10 psi

Shipping Container (inches) 36.4 x 42.5 x 33.5
Power  TBC           WEIGHT

Power, High Temp. Option

 TBC

  min 0.3 bar max 0.7 bar

Net 94.5 Kg  P190

104 Kg  P190D

Consumption to 37°C  TBC

HUMIDITY       Shipping 109 Kg

P190

RH (@37°C + 5%

90%    117.5kg P190D




Incubators - CO2 and Multigas - LEEC



LEEC mini Culture Safe CO2 incubators are an attractive solution for those who want a high quality laboratory incubator in a small package.

CONSTRUCTION

LEEC mini Culture Safe CO2 incubators have a fully sealed, electro-polished, one-piece, deep drawn chamber, which is manufactured from high grade 304 stainless steel. The outer cabinet is manufactured from stainless steel, and has anti-bacterial powder coat paint finish as standard. This gives the CO2 incubator exceptional resistance to corrosion and contamination. An inner glass viewing door closes positively onto an inert (no VOC's) gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A rear access port allows temperature monitoring probes to be inserted safely into the CO2 incubator chamber.

UNIQUE HEATING

A 6 sided direct heating system with high performance insulation ensures the highest standard in temperature control and stability. The independent outer door heater ensures that the inner glass door remains condensate free.

ANTI-CONTAMINATION

We have designed this incubator to eliminate contamination inside the chamber. Features include fan-less air circulation, a crevice-free, electro-polished, one-piece chamber, HEPA filtered gas inlet and a market leading 200°C hot air sterilisation cycle (T50S). Externally, the paint contains an active anti-bacterial biocide.

CONTROL SYSTEM

The multi-function, PID touch screen module controls the temperature, CO2, and alarm functions (including low gas and power failure) and provides real time data logging in graphical and text format. The module also allows data to be downloaded. An independent safety cut out disconnects the heating system should an over temperature condition occur. The module can be password protected too, stopping any unauthorised adjustment to the control systems.



Technical Information

TECHNICAL SPECIFICATIONS

  TEMPERATURE MANAGEMENT CO2 GAS MANAGEMENT DIMENSIONS  ( w x h x d)

Range 5°C above ambient to +60°C Range  0% to 20%

Chamber (mm)

400x 400 x 305

Control 0.1°C Control  ±0.1% Chamber (inches)

15.7 x 15.7 x 12

Stability  ± 0.10°C @ 37°C Stability

 ±0.2% External (mm)

 535x 705x 430

Uniformity  ± 0.25°C @ 37°C Uniformity  ±0.2%    External (inches)

 21 x 27.7 x 16.9

 ELECTRICAL   CO2Sensor

IR

Shipping Container (mm) TBC

 Voltage TBC

COinlet pressure

min 5 psi max 10 psi

Shipping Container (inches) TBC
Power  TBC           WEIGHT

Power, High Temp. Option

 TBC

  min 0.3 bar max 0.7 bar

Net TBC
Consumption to 37°C  TBC

HUMIDITY       Shipping TBC




Incubators - CO2 and Multigas - LEEC

Construction


The new LEEC Culture Safe CO2 Incubator has a fully sealed, electro-polished, one-piece, deep drawn chamber, manufactured from the highest grade 316 stainless steel. The outer cabinet is manufactured from stainless steel, and has an anti-bacterial powder coat paint finish. This gives the CO2 incubator exceptional corrosion and contamination resistance. An inner glass viewing door closes positively onto an inert (no VOC's) gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A side access port allows temperature monitoring probes to be inserted safely into the CO2 incubator chamber.

Unique Heating

A new 6 sided direct heating system with high performance insulation ensure the highest standards in temperature control and stability. The independent outer door heater ensures that the inner glass door remains condensate free.

Anti-Contamination

We have designed this incubator to eliminate contamination inside the chamber. Features include fan-less air circulation, a crevice-free, electro-polished, one-piece chamber, HEPA filtered gas inlet and a market leading 200°C hot air sterilisation cycle. Externally, the paint contains an active anti-bacterial biocide.

Control System

The multi-function, PID touch screen module controls the temperature, CO2, and alarm functions (including low gas and power failure) and provides real time data logging in graphical and text format. The module also allows data to be downloaded. An independent safety cut out disconnects the heating system should an over temperature condition occur. The module can be password protected too, stopping any unauthorised adjustment to the control systems..


Technical Information

  TEMPERATURE MANAGEMENT CO2 GAS MANAGEMENT DIMENSIONS  ( w x h x d)

Range 5°C above ambient to +60°C Range  0% to 20%

Chamber (mm)

632 x 686 x 440

Control 0.1°C Control  ±0.1% Chamber (inches)

24.9 x 27 x 17.3

Stability  ± 0.10°C @ 37°C Stability

 ±0.2% External (mm)

 765 x 862 x 734

Uniformity  ± 0.25°C @ 37°C Uniformity  ±0.2%    External (inches)

 30.1 x 34 x 28.9

 ELECTRICAL   COSensor

IR

Shipping Container (mm) 925 x 1080 x 850
 Voltage  230 vac 50/60HZ

COinlet pressure

min 5 psi max 10 psi

Shipping Container (inches) 36.4 x 42.5 x 33.5
Power  380w           WEIGHT

Power, High Temp. Option

 1800w (190s)

  min 0.3 bar max 0.7 bar

Net 94.5 Kg touch 190

104 Kg touch 190s

Consumption to 37°C  0.058 kwh

HUMIDITY       Shipping 109 Kg touch 190

  RH (@37°C + 5%

90%    117.5kg touch 190s




Incubators - Cooled - LEEC





LEEC Precision Cooled incubator range models P2C, P3C & P33C

Class Leading Design & Technology

Features:

-PID Microprocessor with digital display.
-Digital over temperature safety cut out.
-Stainless steel chamber with adjustable shelves.
-Efficient polyurethane foam insulation.
-Two 12mm access ports.
-Unique pulsed heating and cooling is very energy efficient.
-Quiet hermetically sealed compressor, with air cooled condenser.
-Low wattage heaters are bonded to the outer wall of the chamber to eliminate ‘hot-spots’.
-Digital over temperature safety cut out with visual alarm.
-Chamber is internally spark free.
-Insulation is CFC free.

Technical Information

MODEL P2C P3C P33C
TEMPERATURE *  RANGE  0°C to +60°C
CONTROL VARIATION TYPICALLY ± 0.2°C

TYPICALLY ± 0.55°C

REFIREGERANT CFC - Free
CONSTRUCTION CHAMBER STAINLESS STEEL
EXTERIOR WHITE PAINTED STEEL
CASTORS OPTIONAL
ACCESS POINT STANDARD, 2 x 12mm
INSUALTION CFC - Free
CHAMBER CAPACITY

(Litres)

150 320 730
DIMENSIONS

EXTERNAL (H x W x D mm)

1075 x 635 x 660 1745 x 635 x 660 1745 x 1270 x 660
MAX INTERNAL

(H x W x D mm)

590 x 510 x 490 1275 x 510 x 490 1275 x 1140 x 490
SHELVES SUPPLIED 4 6 6
WEIGHT (Kg) 100 145 1050
POWER RATING (w) 800 850 1050


CO2 incubator LEEC Touch culture safe touch screen 190L



  • Class leading 200°C sterilisation

  • Touch screen control system

  • Deep drawn seamless chamber

  • Full data logging (text & graphical)

  • Electro-polished chamber

  • 190 litre capacity

  • Premium stainless steel

  • No fan (less risk of contamination)

  • Anti-bacterial biocide paint


Construction
The new LEEC Culture Safe CO2 Incubator has a fully sealed, electro-polished, one-piece, deep drawn chamber, manufactured from the highest grade 316 stainless steel. The outer cabinet is manufactured from stainless steel, and has an anti-bacterial powder coat paint finish. This gives the incubator exceptional corrosion and contamination resistance. An inner glass viewing door closes positively onto an inert (no VOC’s) gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A side access port allows temperature monitoring probes to be inserted safely into the incubator chamber.


Unique Heating
A new 6 sided direct heating system with high performance insulation ensure the highest standards in temperature control and stability. The independent outer door heater ensures that the inner glass door remains condensate free.



Anti-Contamination

We have designed this incubator to eliminate contamination inside the chamber. Features include fan-less air circulation, a crevice-free, electro-polished, one-piece chamber, HEPA filtered gas inlet and a market leading 200°C hot air sterilisation cycle. Externally, the paint contains an active anti-bacterial biocide.


Control System
The multi-function, PID touch screen module controls the temperature, CO2, and alarm functions (including low gas and power failure) and provides real time data logging in graphical and text format. The module also allows data to be downloaded. An independent safety cut out disconnects the heating system should an over temperature condition occur. The module can be password protected too, stopping any unauthorised adjustment to the control systems.


Warranty
LEEC Culture Safe CO2 Incubators are covered by a 2 year warranty.



Technical Specifications



Touch190 Touch190S
External (Dimensions H x W x D mm) 850 x 765 x 600 850 x 765 x 600
Internal (Dimensions H x W x D mm) 685 x 630 x 435 685 x 630 x 435
Chamber Capacity (litres) 190 190
Shelves Included 4 4
Power Rating (watts) TBC TBC
Weight (kg) TBC TBC
Temperature Range At least 5°C above ambient to +60 °C
Temperature Control Typically ± 0.1°C at 37.0°C
Temperature Variation Typically better than ± 0.2°C at 37.0°C
Temperature Recovery (approx.) TBC TBC
Sterilization n/a n/a
