heidolph

Regardless of the field you work in, we are all striving for the same goal: to alleviate and fight diseases, to generate healthier food and to develop new innovative materials... in short: to enhance people’s health and living conditions. You do the research and we provide you with the necessary support.

Authorised dealer for:

UK only

30/10/2019

Heidolph non incubating shaker from Wolflabs

Product Update

Introduction

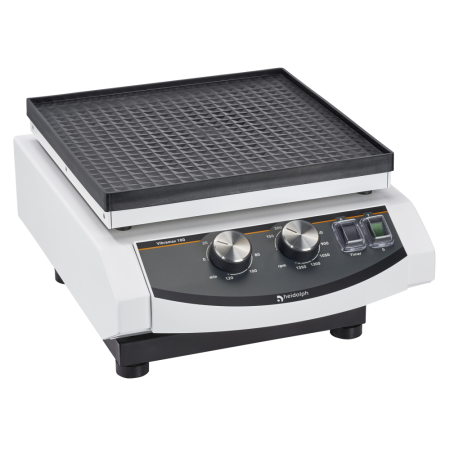

Heidolph Vibramax 110 non incubating shaker from Wolflabs.

Features and benefits
- Ideal for the optional attachment to use 49 test tubes that increases your throughput significantly.
- The shaking orbit of 1.5 mm performs a gentle motion for sensitive samples.
- Set and continuously adjust the variable speed on the analog control knob from 150 to 2,500 rpm.
- An analog process timer allows for unattended operation and can be set from 1 to 120 minutes. When the set time has elapsed an acoustic alarm will sound and the operation stops.

Product Category: Shakers - Non Incubating

Manufacturer: Heidolph

15/10/2019

Heidolph microplate shaker from Wolflabs

Product Update

Introduction
Heidolph Titramax 1000 package microplate shaker from Wolflabs.

Features abd benefits
- The use of six microtiter plates increases your throughput by 50%.
- Medium-sized model and accepts load capacities of 5kg.
- Suitable for the modular incubator system and is recommended for applications which require variable temperature control up to 65°C.
- An analog process timer allows for unattended operation and can be set from 1 to 120 minutes.

Product Category: Shakers - Microplate

Manufacturer: Heidolph

06/09/2019

New Heidolph hotplate stirrers from Wolflabs

Product Update

Introduction

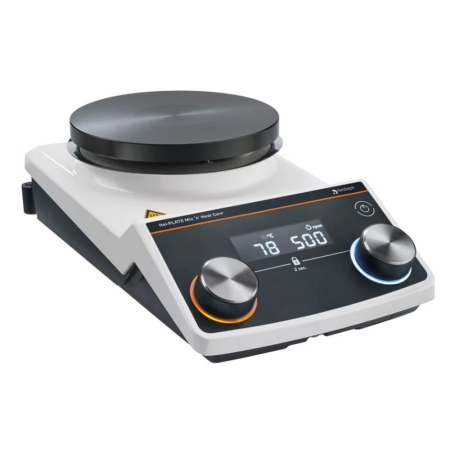

New MR Hei-Connect hotplate stirrers from Heidolph have been added.

Features and benefits
- Reproducible results.
- Digital display enables full process monitoring and precise setting of all parameters.
- Unit allows for easy setting and monitoring of values in the illuminated readout.
- Separate on/off switch for heating prevents an unintentional heat-up.

Product Category: Stirrers - Hotplate

Manufacturer: Heidolph

10/09/2018

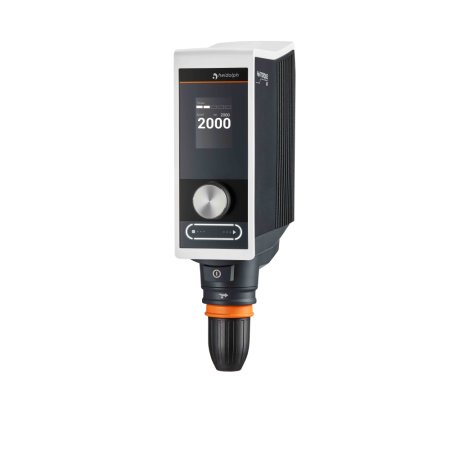

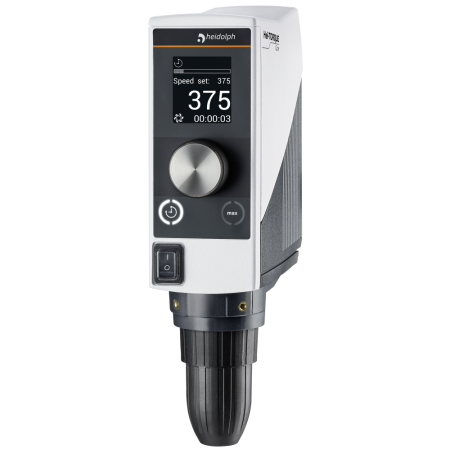

New Heidolph overhead stirrer from Wolflabs

Product Update

Introduction

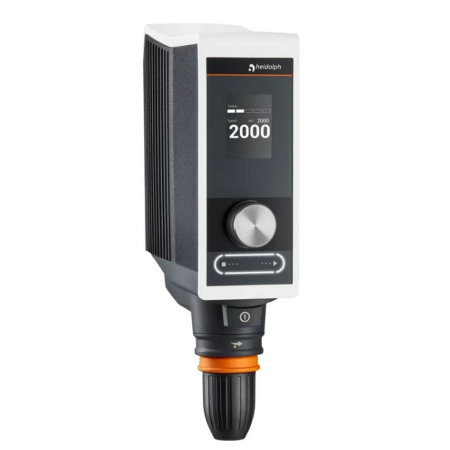

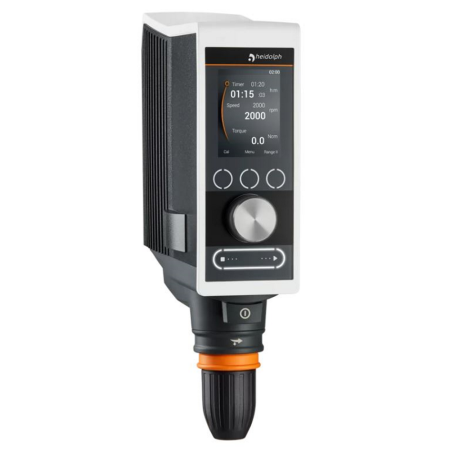

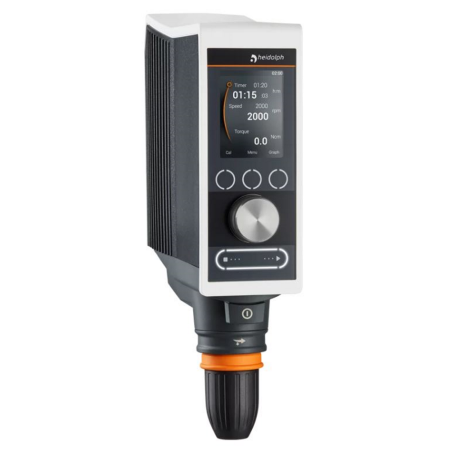

New Hei-TORQUE Core overhead stirrer from Heidolph has been added. The compact design allows for integration in closed systems, such as fume hoods, reactors, or production systems. Suitable for low- to medium-viscosity media up to 25l. The large diameter of the chuck (10 mm) allows you to use even large impellers and VISCO JET tools. This facilitates a wide variety of applications, such as homogenization, dispersing, the dissolving of agglomerates, and more.

Features and benefits
- Torque up to 40 Ncm
- Speed range up to 2,000 rpm
- Viscosity up to 10,000 mPas
- Control knob for rotation speed, pushing starts or stops the function
- Timer
- “Max” button for short-term operation at maximum speed

Product Category: Stirrers - Overhead

Manufacturer: Heidolph

10/08/2018

Heidolph hotplate stirrer from Wolflabs

Product Update

Introduction
Heidolph Hei-Connect hotplate stirrer from Wolflabs.

Features and benefits
- All units come with digital display to allow for easy setting and monitoring values on the illuminated readout
- You can work with dry ice – as a robust thermal insulation prevents corrosion inside the housing by preventing condensate from collecting and dripping on any electronic components
- A free software program is available for the MR Hei-Connect which supports you to automate and to safe your process parameters
- The strong magnetic field allows for easy stirring of even higher viscosity media
- The unique Kera-Disk coating is extremely chemical-resistant and scratch-proof, and therefore the plate can be cleaned easily from solvents, oil or other contaminations
- The chemically resistant Kera-Disk® hot plate allows for immediate heat transfer resulting in quick heat-up times
- In case the heating function fails, stirring will not be discontinued to avoid thermal damage to your sample

Product Category: Stirrers - Hotplate

Manufacturer: Heidolph

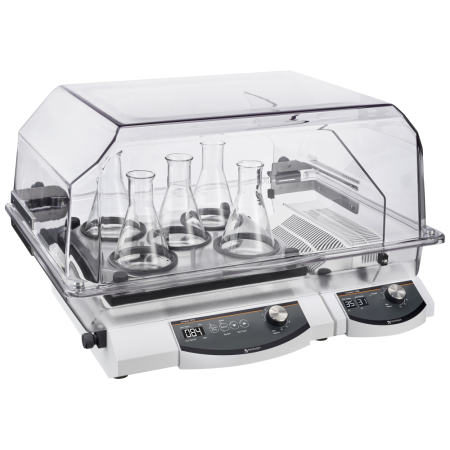

Shaking Incubators - Benchtop Non-Refrigerated - Heidolph



Package includes:

• Orbital platform shaker, Unimax 1010
• Heating module Incubator 1000
• High incubator hood

See below for details on the individual components and ordering information



Unimax 1010 Shaker

Maximum load capacity of 5 kg
• Vibration orbit of 10 mm for gentle circles
• Rotation continuously adjustable from 30 to 500 rpm
• Designed for medium sized vessels
• Analog dial controls for vibration frequency
• Digital process timer allows for unattended operation up to 999 minutes and sends an acoustic signal
• Ability to combine this shaker with the Incubator 1000
• Protection class IP 40

Incubator And Hood

Incubator 1000

• World-wide unique modular incubator for shaking, mixing and heating all in one
• For superior results in molecular biology, bacteria cultivation and DNA analysis
• Your choice of a flat or high incubator hood for high or small vessels
• Separately controlled heating module for reproducible temperature control
• Incubate and mix simultaneously or independently
• Transparent non-fogging PETG hood allows for easy viewing
• Easy and fast access to vessels
• Compatible with shaker models Unimax 1010, Promax 1020, Duomax 1030, Polymax 1040 and Titramax 1000



Heating Module

Shaking-heating-mixing all in one

• Electrical heater along with a low-noise blower
• Heating power 300 W
• Digital temperature settings from + 5 ºC over room temperature to 65 ºC
• Temperature accuracy of ± 2 K up to 50 ºC
• Temperature accuracy of ± 4 K over 50 ºC
• Individual digital display for set temperature and actual temperature
• Temperature regulation with Pt 100 sensor
• Safety circuits prevent overheating
• Designed for continuous use
• Dimensions 170 x 97 x 375 mm
• Protection class IP 30



High Hood

For high vessels and flasks

• High incubator hood with total height of 267 mm
• Transparent, non-fogging PETG material for easy viewing
• Immediate and convenient access to vessels
• Recommended especially for large flasks and media bottles, Erlenmeyer flasks up to 1000 ml and medium sized or large common vessels



Technical Specifications

Model Unimax 1010
Motion orbital
Rotation speed (rpm) 30 - 500
Rotation speed setting digital
Orbit (mm) 10
Angle (°) -
Operating mode timer or continuous
Input power (W) 50
Weight (kg) 8
Dimensions (wxhxd) (mm) 320 x 125 x 375
Platform size (mm) 290 x 258
Included non-skid rubber mat
Max. load capacity (kg) 5
Overheating protection self resetting
Permissible ambient temperature (°C) 0-50 at 80% relative humidity
Protection class (DIN EN 60529) IP 40
Supply voltage 230/240 V/50 Hz



Shaking Incubators - Benchtop Non-Refrigerated - Heidolph




Package includes:

• Vibrating platform shaker, Titramax 1000
• Heating module Incubator 1000
• Flat incubator hood

See below for details on the individual components and ordering information



Titramax 1000 Shaker



6 Microtiterplates - small orbit
• Small vibration orbit of 1.5 mm to prevent contamination even with full wells
• Can be integrated into the Incubator 1000 for reproducible temperature control
• Ability to combine this shaker with the Incubator 1000
• Protection class IP 40



Incubator And Hood

Incubator 1000

• World-wide unique modular incubator for shaking, mixing and heating all in one
• For superior results in molecular biology, bacteria cultivation and DNA analysis
• Your choice of a flat or high incubator hood for high or small vessels
• Separately controlled heating module for reproducible temperature control
• Incubate and mix simultaneously or independently
• Transparent non-fogging PETG hood allows for easy viewing
• Easy and fast access to vessels
• Compatible with shaker models Unimax 1010, Promax 1020, Duomax 1030, Polymax 1040 and Titramax 1000

Heating Module

Shaking-heating-mixing all in one

• Electrical heater along with a low-noise blower
• Heating power 300 W
• Digital temperature settings from + 5 ºC over room temperature to 65 ºC
• Temperature accuracy of ± 2 K up to 50 ºC
• Temperature accuracy of ± 4 K over 50 ºC
• Individual digital display for set temperature and actual temperature
• Temperature regulation with Pt 100 sensor
• Safety circuits prevent overheating
• Designed for continuous use
• Dimensions 170 x 97 x 375 mm
• Protection class IP 30

Flat Hood

For small vessels and culture plates

• Flat incubator hood with total height of 163 mm
• Transparent, non-fogging PETG material for easy viewing
• Immediate and convenient access to vessels
• Recommended especially for microtiter plates, culture plates, small flasks, media bottles and Erlenmeyer flasks up to 100 ml



Technical Specifications

Model

Titramax 1000

Motion

vibrating

Rotation speed (rpm)

150 - 1350

Rotation speed setting

electronic contr.

Orbit (mm)

3

Angle (°)

-

Operating mode

timer or continuous

Input power (W)

31

Weight (kg)

5.5

Dimensions (wxhxd) (mm)

245 x 125 x 310

Platform size (mm)

220 x 220

Included

space for 6 microtiterplates

Max. load capacity (kg)

2

Overheating protection

self resetting

Permissible ambient temperature (°C)

0-50 at 80% relative humidity

Protection class (DIN EN 60529)

IP 30

Supply voltage

230/240 V/50 Hz

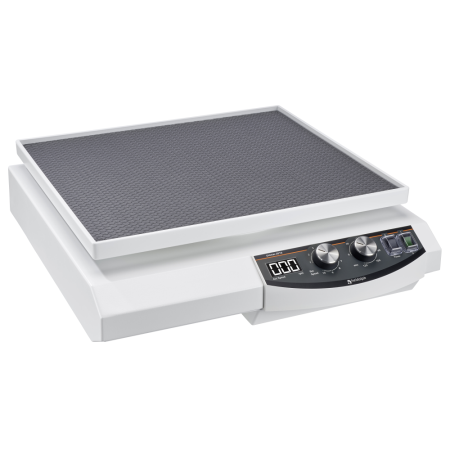

Heidolph Unimax 2010


Unimax 2010




Unimax 2010

For large vessels

  • Rotation continuously adjustable from 20 to 400 rpm
  • Vibration orbit of 20 mm for gentle circles
  • Maximum load capacity of 10 kg
  • Designed for large vessels
  • Analog dial controls for vibration frequency
  • Process timer allows for unattended operation (max 120 min)
  • Encapsulated housing, virtually no heat transfer from motor to platform
  • Comes with non-skid rubber mat
  • Protection class IP 20
  • Product number: 542-10020

Incubator




Incubator

Combine any 5 kg shaker with the incubator module for precise temperature control

  • World-Wide unique modular incubator for Shaking-Mixing and Heating all in one
  • For superior results in molecular biology, bacteria cultivation and DNA analysis
  • Your choice of a flat or high incubator hood for high or small vessels
  • Separately controlled heating module for reproducable temperature control
  • Incubate and mix simultaneously or independently
  • Transparent non-fogging PETG hood allows for easy viewing
  • Easy and fast access to vessels
  • Compatible with shaker models Unimax 1010, Promax 1020, Duomax 1030, Polymax 1040 and Titramax 1000

Accessories - Unimax 2010


Perforated platform
Universal perforated platform allows for individual arrangements of vessels. Please order clamps separately
Order number: 549-59000-00
25 ml Erlenmeyer clamp
25 ml Erlenmeyer clamp with attachment clip for the perforated platform. Platform provides space for max 36 clamps
Order number: 549-51000-00
50 ml Erlenmeyer clamp
50 ml Erlenmeyer clamp with attachment clip for the perforated platform. Platform provides space for max 36 clamps
Order number: 549-52000-00
100 ml Erlenmeyer clamp
100 ml Erlenmeyer clamp with attachment clip for the perforated platform. Platform provides space for max 23 clamps
Order number: 549-53000-00
250 ml Erlenmeyer clamp
250 ml Erlenmeyer clamp with attachment clip for the perforated platform. Platform provides space for max 12 clamps
Order number: 549-54000-00
500 ml Erlenmeyer clamp
500 ml Erlenmeyer clamp with attachment clip for the perforated platform. Platform provides space for max 9 clamps
Order number: 549-55000-00
1000 ml Erlenmeyer clamp
1000 ml Erlenmeyer clamp with attachment clip for the perforated platform. Platform provides space for max 5 clamps
Order number: 549-56000-00
Separatory funnel clamp, 3 sizes
250 ml, 500 ml, 1000 ml separatory funnel clamp with attachment clip for the perforated platform. Platform provides space for max 4 (250 ml), 3 (500 ml) and 3 (1000 ml) clamps
Order number: 549-57000-00
2000 ml separatory funnel clamp
2000 ml separatory funnel clamp with attachment clip for universal tablar. Tablar provides space for max 2 clamps
Order number: 549-61000-00
Frame for tension roller
Frame only, comes without tension roller
Order number: 549-50000-00
Tension roller and frame complete
Complete unit includes frame and 2 tension rollers
Order number: 549-58000-00
Multi-tier attachment
Allows for up to three platforms for just one shaker
Order number: 549-60000-00
