Ovens - Drying/Warming - Genlab
|
|

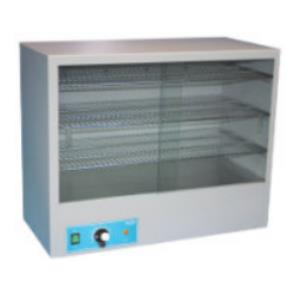

(Left:DC125, Right: DC1000)

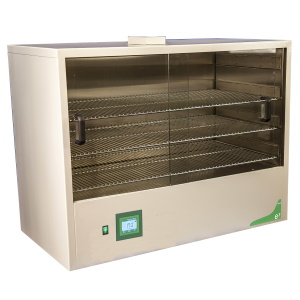

The GENLAB Drying / Warming cabinets are suitable for drying a range of items such as glassware and instruments and any general purpose warming applications.
Two variations are available which are the standard non-insulated units and insulated units for improved efficiency plus energy and cost savings.
Features Options
• 4 sizes: 125 to 1000 litres Insulated range with increased accuracy
• Maximum temperature 50°C above ambient and savings in running costs.
• Easy clean powder coated body Extraction system on 500 & 1000 litre units
• Thermostat control for set temperature
• Toughened glass doors
• Fan circulation on 500 & 1000 litre
• Full two year warranty
• C.E. compliant
Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint.
Fitted with adjustable shelf runners, removable plated wire grid shelves and ventilation outlets.
The insulated range of units give far greater temperature control, allowing greater accuracy during the drying and warming process.
The resulting reduction in energy requirements gives a performance saving of over 30% compared to the non-insulated range, which significantly reduces the running costs on these models, making them both highly efficient and very cost effective.
The 125 and 250 litre models have sliding, toughened glass doors.
The 500 and 1000 litre models have hinged, toughened glass doors.
Heating
Heated by Incoloy sheathed elements positioned in the base of the unit.
The 500 and 1000 litre models have fan assistance as standard.
Controls
Control is via a direct reading thermostat with calibrated scale and tamper proof lock. The units also have a mains switch with indicator and heat indicator.
As an option an Extractor fan system can be fitted to the top of the 500 and 1000 litre units.
This increases the throughput of air and reduces the overall drying time.
Technical Information
|
Non-insulated
|
| Model |
Approx Capacity (litre)
|
Internal dims
(H x W x D cm)
|
External dims
(H x W x D cm)
|
No. of shelves
|
Weight
(kg)
|
| DC125 |
125
|
43 x 72 x 40
|
60 x 74 x 42
|
3
|
40
|
| DC250 |
250
|
52 x 98 x 48
|
66 x 100 x 50
|
3
|
55
|
| DC500 |
500
|
138 x 58 x 62
|
168 x 60 x 65
|
3
|
75
|
| DC1000 |
1000
|
138 x 116 x 62
|
168 x 118 x 65
|
3
|
130
|
|
Insulated
|
| Model |
Approx Capacity (litre)
|
Internal dims
(H x W x D cm)
|
External dims
(H x W x D cm)
|
No. of shelves
|
Weight
(kg)
|
| IWC100 |
100
|
40 x 67 x 37
|
60 x 74 x 42
|
3
|
45
|
| IWC200 |
200
|
49 x 93 x 45
|
66 x 100 x 50
|
3
|
60
|
| IWC425 |
425
|
135 x 53 x 59
|
168 x 60 x 65
|
3
|
80
|
| IWC885 |
885
|
135 x 111 x 59
|
168 x 118 x 65
|
3
|
140
|
|
Genlab Dual Purpose Ovens / Incubators
| Features |
Options and Accessories |
 10 sizes 6 to 200 litres |
Stainless steel chamber |
| Temperature range: |
Fan circulation (30 litre +) |
| ambient +5 to 250C (Dual Range) |
Microprocessor digital controller |
| Fluctuation +/- 0.25C @ 37C |
(fan circulated models) |
| +/- 0.75C @ 100C |
Separate LED temperature display |
| Easy clean powder coated body |
Horizontal style from 75 litres |
| Direct reading thermostat |
Other accessories available on |
| Safety overheat thermostat |
request |
| Full two year warranty |
|
| C.E. compliant |
|
Design
This cost effective, dual purpose oven/incubator combines the advantage of two temperature ranges in one unit through the use of a simple high/low switch.
Higher temperatures for oven or steriliser use on the high setting and standard incubator settings on the low range.
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.
Fitted with fixed shelf runners and removable plated wire grid shelves. The top vent is fitted with a clip to hold a mercury-in-glass thermometer.
The vertical style units are fitted with the controls below the door, the horizontal style units with the controls fitted on the side are available from 75 litres upwards.
Heating
Heated by Incoloy sheathed elements; positioned below the chamber floor for natural convection units and fitted around the fan on the back or side wall of the chamber for mechanical convection units.
The 200 litre units have fan circulation as standard.
Controls
The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include mains switch with indicator and heat and overheat indicators.
Options include a microprocessor digital controller with LED display of temperature
or an independent LED display for showing temperature on the thermostatically controlled units.
| Specifications Vertical Style |
Model
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D cms)
|
External dims.
(H x W x D cms)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
|
without fan
|
with fan
|
| MINIS/6 |
6
|
15 x 23 x 19
|
39 x 32 x 33
|
N/A
|
1
|
1
|
7
|
| MINIS/18 |
18
|
26 x 26 x 27
|
52 x 38 x 41
|
N/A
|
2
|
2
|
14
|
| MINIS/30 |
30
|
24 x 36 x 35
|
50 x 48 x 49
|
50 x 48 x 62
|
2
|
2
|
20
|
| MINIS/40 |
40
|
32 x 36 x 35
|
58 x 45 x 49
|
58 x 45 x 62
|
2
|
3
|
23
|
| MINIS/50 |
50
|
33 x 49 x 33
|
59 x 61 x 47
|
59 x 61 x 59
|
2
|
3
|
26
|
| MINIS/75 |
75
|
33 x 49 x 45
|
59 x 61 x 60
|
59 x 61 x 72
|
2
|
3
|
34
|
| MINIS/100 |
100
|
45 x 49 x 45
|
71 x 61 x 60
|
71 x 61 x 72
|
3
|
4
|
44
|
| MINIS/125 |
125
|
55 x 49 x 45
|
81 x 61 x 60
|
81 x 61 x 72
|
3
|
5
|
52
|
| MINIS/150 |
150
|
55 x 49 x 53
|
81 x 61 x 68
|
81 x 61 x 80
|
3
|
5
|
60
|
| MINIS/200/F |
200
|
75 x 49 x 53
|
N/A
|
101 x 61 x 80
|
4
|
7
|
76
|
| Horizontal Style |
Model
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D cms)
|
External dims.
(H x W x D cms)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
|
without fan
|
with fan
|
| DP/75 |
75
|
42 x 53 x 35
|
45 x 49 x 35
|
56 x 85 x 50
|
2
|
3
|
39
|
| DP/100 |
100
|
42 x 53 x 46
|
45 x 49 x 46
|
56 x 85 x 61
|
3
|
4
|
48
|
| DP/125 |
125
|
52 x 53 x 46
|
55 x 49 x 46
|
66 x 85 x 61
|
3
|
5
|
57
|
| DP/150 |
150
|
52 x 53 x 54
|
55 x 49 x 54
|
66 x 85 x 69
|
3
|
5
|
66
|
| DP/200/F |
200
|
N/A
|
75 x 49 x 54
|
86 x 85 x 69
|
4
|
7
|
85
|
Ordering
All units have CLAD interior with thermostatic control as standard.
Where options are required simply add the option code to the original reference.
i.e MINO/75 with stainless steel interior and digital controller becomes MINIS/75/SS/F/DIG
Option codes
Stainless Steel/SS Fan Circulation/F Digital control/DIG LED display/LED
Incubators - Genlab
|
|
(Left: INC/50/DIG, Right MINI/75)
The GENLAB General Purpose Incubators offer a range of highly efficient, reliable, cost effective units to suit most biological analysis, research and general laboratory applications.
| Specifications |
|
Options |
| 10 sizes 6 to 200 litres |
|
Stainless steel chamber |
| Temperature range: |
|
Fan circulation (30 litre +) |
| ambient +5 to 100ºC without fan |
|
Alternative door with integral viewing window |
| ambient +5 to 70ºC with double door |
|
Double door (solid outer, clear inner) |
| ambient +5 to 60ºC with window |
|
Microprocessor digital controller with dual |
| ambient +8 if fan fitted |
|
display of set point and actual temperature |
| Fluctuation +/- 0.25ºC @ 37ºC |
|
|
| Easy clean powder coated body |
|
Other accessories available on request |
| Aluminium coated mild steel chamber |
|
|
| Direct reading thermostat |
|
|
| Safety overheat thermostat |
|
|
| Full two year warranty |
|
|
| C.E. compliant |
|
|
Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.
Fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a mercury in glass thermometer.
The vertical style units are fitted with the controls below the door, the horizontal style units with the controls fitted on the side.
The incubators have a solid steel door as standard or as an alternative a door with an integral viewing window (VIS) can be fitted.
As an option a double door, comprising steel outer with an inner glass door is also available.
Heating
Heated by Incoloy sheathed elements; positioned below the chamber floor for natural convection units and fitted around the fan on the back or side wall of the chamber for mechanical convection units.
The 200 litre units have fan circulation as standard.
Controls
The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include main switch with indicator and heat and overheat indicators.
Options include a PID Microprocessor controller with dual displays of set point and actual temperature, which are auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature.
Technical Specifications
|
Vertical Style
|
Genlab ref.
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D mm)
|
External dims.
(H x W x D mm)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
|
without fan
|
with fan
|
| MINI/6 |
6
|
150 x 230 x 190
|
390 x 320 x 330
|
N/A
|
1
|
1
|
7
|
| MINI/18 |
18
|
260 x 260 x 270
|
520 x 380 x 410
|
N/A
|
2
|
2
|
14
|
| MINI/30 |
30
|
240 x 360 x 350
|
500 x 480 x 490
|
500 x 480 x 620
|
2
|
2
|
20
|
| MINI/40 |
40
|
320 x 360 x 350
|
580 x 480 x 490
|
580 x 480 x 620
|
2
|
3
|
23
|
| MINI/50 |
50
|
330 x 490 x 330
|
590 x 610 x 470
|
590 x 610 x 590
|
2
|
3
|
26
|
| MINI/75 |
75
|
330 x 490 x 450
|
590 x 610 x 600
|
590 x 610 x 720
|
2
|
3
|
34
|
|
Horizontal Style
|
Genlab ref.
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D mm)
|
External dims.
(H x W x D mm)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
|
without fan
|
with fan
|
| INC/50 |
50
|
420 x 410 x 340
|
450 x 370 x 340
|
570 x 730 x 470
|
2
|
3
|
31
|
| INC/75 |
75
|
420 x 530 x 340
|
450 x 490 x 340
|
570 x 850 x 470
|
2
|
3
|
39
|
| INC/100 |
100
|
420 x 530 x 460
|
450 x 490 x 460
|
570 x 850 x 590
|
3
|
4
|
48
|
| INC/125 |
125
|
520 x 530 x 460
|
550 x 490 x 460
|
680 x 850 x 590
|
3
|
5
|
57
|
| INC/150 |
150
|
520 x 530 x 540
|
550 x 490 x 540
|
680 x 850 x 660
|
3
|
5
|
66
|
| INC/200/F |
200
|
N/A
|
750 x 490 x 540
|
870 x 850 x 660
|
4
|
7
|
85
|
|
Ovens - Genlab
|
|
The GENLAB Large Capacity Multipurpose Ovens offer a unique range of highly efficient, reliable and accurate units suitable for much larger applications in drying, curing, general laboratory and industrial uses.
| Specifications |
|
Options |
 Capacities 250 to 1250 Litres |
|
Stainless steel chamber |
| 8 sizes vertical style |
|
300°C units available |
| 9 sizes horizontal style |
|
|
| Temperature range: |
|
Accessories |
| 40ºC to 250ºC |
|
Extraction systems |
| Microprocessor digital controller with dual |
|
Timers/Recorders |
| display of set point and actual temperature |
|
Trolleys and racking |
| Easy clean powder coated body |
|
Other accessories available on request |
| Aluminium coated mild steel chamber |
|
|
| Fitted castors (from 650 litres) |
|
|
| Safety overheat thermostat |
|
|
| Full two year warranty |
|
|
| C.E. compliant |
|
Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.
Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
The vertical style units are fitted with single doors, the horizontal style units are fitted with twin doors.
Heating
Heated by Incoloy sheathed elements positioned in the base fan duct for units up to 650 litres and in the side fan duct on units 650 litres and over.
Controls
All units have as standard a PID Microprocessor controller, with dual displays of set point and actual temperature that are auto-tuned to each individual unit to optimise the heat up, overshoot and control of temperature.
Technical Specifications
|
Horizontal Style
|
Genlab ref.
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D cms)
|
External dims.
(H x W x D cms)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
| LCO/9H/DIG |
250
|
54 x 92 x 44
|
94 x 109 x 57
|
3
|
4
|
80
|
| LCO/12H/DIG |
350
|
54 x 92 x 64
|
94 x 109 x 77
|
3
|
4
|
120
|
| LCO/15H/DIG |
425
|
76 x 92 x 64
|
112 x 109 x 77
|
4
|
5
|
150
|
| LCO/18H/DIG |
500
|
91 x 92 x 64
|
127 x 109 x 77
|
5
|
7
|
165
|
| LCO/22H/DIG |
650
|
91 x 92 x 77
|
127 x 157 x 95
|
5
|
7
|
180
|
| LCO/27H/DIG |
750
|
106 x 92 x 77
|
142 x 157 x 95
|
5
|
8
|
200
|
| LCO/30H/DIG |
850
|
122 x 92 x 77
|
158 x 157 x 95
|
5
|
9
|
220
|
| LCO/35H/DIG |
1000
|
142 x 92 x 77
|
178 x 157 x 95
|
5
|
11
|
240
|
| LCO/42H/DIG |
1250
|
142 x 122 x 74
|
178 x 187 x 92
|
5
|
11
|
275
|
|
Vertical Style
|
Genlab ref.
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D cms)
|
External dims.
(H x W x D cms)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
| LCO/9V/DIG |
250
|
91 x 51 x 52
|
127 x 69 x 69
|
5
|
7
|
85
|
| LCO/12V/DIG |
350
|
91 x 61 x 62
|
127 x 79 x 79
|
5
|
7
|
110
|
| LCO/15V/DIG |
425
|
91 x 61 x 77
|
127 x 79 x 94
|
5
|
7
|
140
|
| LCO/18V/DIG |
500
|
114 x 61 x 77
|
150 x 79 x 94
|
5
|
9
|
155
|
| LCO/22V/DIG |
650
|
114 x 77 x 77
|
150 x 142 x 95
|
5
|
9
|
170
|
| LCO/27V/DIG |
750
|
128 x 77 x 77
|
164 x 142 x 95
|
5
|
10
|
190
|
| LCO/30V/DIG |
850
|
142 x 77 x 77
|
178 x 142 x 95
|
5
|
11
|
210
|
| LCO/35V/DIG |
1000
|
142 x 77 x 92
|
178 x 142 x 110
|
5
|
11
|
230
|
All units have CLAD interior with the microprocessor digital control as standard.
Where options are required simply add the option code to the original reference
Option Codes
|
Ovens - Genlab
|
|
(Left: MINO/50, Right OV/50/DIG)
The GENLAB General Purpose Ovens offer a range of highly efficient, reliable, cost effective units to suit most drying, warming and general laboratory applications
| Specifications |
|
Options |
| 10 sizes 6 to 200 litres |
|
Stainless steel chamber |
| Temperature range: 40 to 250ºC |
|
Fan circulation (30 litre +) |
| Fluctuation +/- 0.75ºC |
|
Microprocessor digital controller with dual |
| Easy clean powder coated body |
|
display of set point and actual temperature |
| Aluminium coated mild steel chamber |
|
|
| Direct reading thermostat |
|
Other accessories available on request |
| Safety overheat thermostat |
|
|
| Full two year warranty |
|
|
| C.E. compliant |
|
|
Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option. Fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a glass immersion thermometer. The vertical style units are fitted with the controls below the door, the horizontal style units with the controls fitted on the side.
Heating
Heated by Incoloy sheathed elements; positioned below the chamber floor for natural convection units and fitted around the fan on the back or side wall of the chamber for mechanical convection units. The 200 litre units have fan circulation as standard.
Controls
The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include main switch with indicator and heat and overheat indicators.
Options include a PID Microprocessor controller with dual displays of set point and actual temperature, which are auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature..
Technical Specifications
|
Vertical Style
|
Genlab ref.
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D cms)
|
External dims.
(H x W x D cms)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
|
without fan
|
with fan
|
| MINO/6 |
6
|
15 x 23 x 19
|
39 x 32 x 33
|
N/A
|
1
|
1
|
7
|
| MINO/18 |
18
|
26 x 26 x 27
|
52 x 38 x 41
|
N/A
|
2
|
2
|
14
|
| MINO/30 |
30
|
24 x 36 x 35
|
50 x 48 x 49
|
50 x 48 x 62
|
2
|
2
|
20
|
| MINO/40 |
40
|
32 x 36 x 35
|
58 x 48 x 49
|
58 x 48 x 62
|
2
|
3
|
23
|
| MINO/50 |
50
|
33 x 49 x 33
|
59 x 61 x 47
|
59 x 61 x 59
|
2
|
3
|
26
|
| MINO/75 |
75
|
33 x 49 x 45
|
59 x 61 x 60
|
59 x 61 x 72
|
2
|
3
|
34
|
|
Horizontal Style
|
Genlab ref.
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D cms)
|
External dims.
(H x W x D cms)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
|
without fan
|
with fan
|
| OV/50 |
50
|
42 x 41 x 35
|
45 x 37 x 34
|
57 x 73 x 47
|
2
|
3
|
31
|
| OV/75 |
75
|
42 x 53 x 35
|
45 x 49 x 34
|
57 x 85 x 47
|
2
|
3
|
39
|
| OV/100 |
100
|
42 x 53 x 46
|
45 x 49 x 46
|
57 x 85 x 59
|
3
|
4
|
48
|
| OV/125 |
125
|
52 x 53 x 46
|
55 x 49 x 46
|
68 x 85 x 59
|
3
|
5
|
57
|
| OV/150 |
150
|
52 x 53 x 54
|
55 x 49 x 54
|
68 x 85 x 66
|
3
|
5
|
66
|
| OV/200/F |
200
|
N/A
|
75 x 49 x 54
|
87 x 85 x 66
|
4
|
7
|
85
|
Option Codes
| Stainless steel |
SS |
| Fan circulation |
F |
| Digital control system |
DIG |
All units have CLAD interior with thermostatic control as standard.
Where options are required simply add the option code to the original reference.
i.e MINO/75 with stainless steel interior and digital controller becomes MINO/75/SS/DIG
|
Incubators - Genlab
|
|
Incubator with forced convection
The BINDER incubator BF series is the highest-class for all gentle incubation tasks, particularly under a full load and large batch throughputs. It is extremely homogeneous and has quick recovery times.
Option codes
Stainless steel / SS
Technical Specifications
|
Horizontal Style
|
Genlab ref.
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D cms)
|
External dims.
(H x W x D cms)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
| LCI/9H/DIG |
250
|
54 x 92 x 44
|
94 x 109 x 57
|
3
|
4
|
80
|
| LCI/12H/DIG |
350
|
54 x 92 x 64
|
94 x 109 x 77
|
3
|
4
|
120
|
| LCI/15H/DIG |
425
|
76 x 92 x 64
|
112 x 109 x 77
|
4
|
5
|
150
|
| LCI/18H/DIG |
500
|
91 x 92 x 64
|
127 x 109 x 77
|
5
|
7
|
165
|
| LCI/22H/DIG |
650
|
91 x 92 x 77
|
127 x 157 x 95
|
5
|
7
|
180
|
| LCI/27H/DIG |
750
|
106 x 92 x 77
|
142 x 157 x 95
|
5
|
8
|
200
|
| LCI/30H/DIG |
850
|
122 x 92 x 77
|
158 x 157 x 95
|
5
|
9
|
220
|
| LCI/35H/DIG |
1000
|
142 x 92 x 77
|
178 x 157 x 95
|
5
|
11
|
240
|
| LCI/42H/DIG |
1250
|
142 x 122 x 74
|
178 x 187 x 92
|
5
|
11
|
275
|
|
Vertical Style
|
Genlab ref.
Number |
Capacity
(litres)
|
Internal dims.
(H x W x D cms)
|
External dims.
(H x W x D cms)
|
No. of
Shelves
|
No. shelf
positions
|
Weight
(kg)
|
| LCI/9V/DIG |
250
|
91 x 51 x 52
|
127 x 69 x 69
|
5
|
7
|
85
|
| LCI/12V/DIG |
350
|
91 x 61 x 62
|
127 x 79 x 79
|
5
|
7
|
110
|
| LCI/15V/DIG |
425
|
91 x 61 x 77
|
127 x 79 x 94
|
5
|
7
|
140
|
| LCI/18V/DIG |
500
|
114 x 61 x 77
|
150 x 79 x 94
|
5
|
9
|
155
|
| LCI/22V/DIG |
650
|
114 x 77 x 77
|
150 x 142 x 95
|
5
|
9
|
170
|
| LCI/27V/DIG |
750
|
128 x 77 x 77
|
164 x 142 x 95
|
5
|
10
|
190
|
| LCI/30V/DIG |
850
|
142 x 77 x 77
|
178 x 142 x 95
|
5
|
11
|
210
|
| LCI/35V/DIG |
1000
|
142 x 77 x 92
|
178 x 142 x 110
|
5
|
11
|
230
|
|
|
