New Brunswick Scientific has long been considered a vanguard in the rapidly evolving Life Science industry, with over a 60-year heritage of producing innovative and dependable equipment. Today, our company continues to play a critical supporting role in the development of emerging therapies and technologies. We are proud to support an industry that improves people’s lives, enhances quality of life, and profoundly shapes the human condition.

Authorised dealer for:

UK only

29/06/2020

Eppendorf / New Brunswick Scientific ultra-low temperature freezer from Wolflabs

Product Update

Introduction

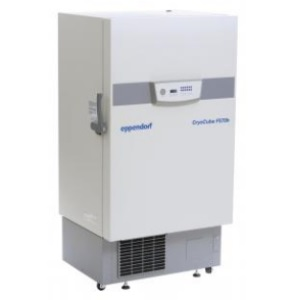

Eppendorf / New Brunswick Scientific CryoCube F570 ultra-low temperature freezer from Wolflabs.

Features and benefits
- Easy opening with new ergonomic handle that requires less force.
- Easy access to samples with new magnetic closures on inner doors.
- Quick door opening and improved temperature uniformity with new automatic vent port located within the user interface.
- Reduced energy consumption with high-efficiency fan, compressor, and condenser.

10/10/2019

Eppendorf / New Brunswick Scientific shaking incubator from Wolflabs

Product Update

Introduction

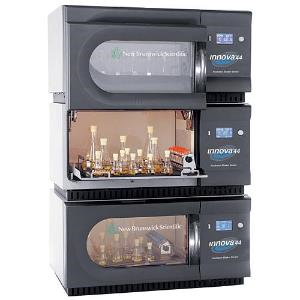

Eppendorf / New Brunswick Scientific Innova 44R shaking incubator from Wolflabs.

Features and beenefits
- Innovative design.
- Numerous safety features.
- Each shaker is individually inspected and performance tested to ensure it meets specifications.
- Warranty covers parts and labor for the entire machine.

05/09/2019

Eppendorf / New Brunswick Scientific ultra-low temperature freezer from Wolflabs

Product Update

Introduction
Eppendorf / New Brunswick Scientific Innova C585 ultra-low temperature freezer from Wolflabs. The U585 Innova ultra-low temperature laboratory freezer utilizes vacuum insulation panel technology for up to 30% more storage.

Features and benefits
- Features 2 inner insulated sub-lids easily lift off without tools for defrosting and cleaning; has low noise and low heat output.
- Help maintain temperature stability.
- Password protection of alarm and temperature setpoints to prevent unauthorized setting changes.
- Each freezer slides effortlessly through a standard doorway simplifying installation.


17/06/2019

Eppendorf / New Brunswick Scientific ultra-low temperature freezer from Wolflabs

Product Update

Introduction

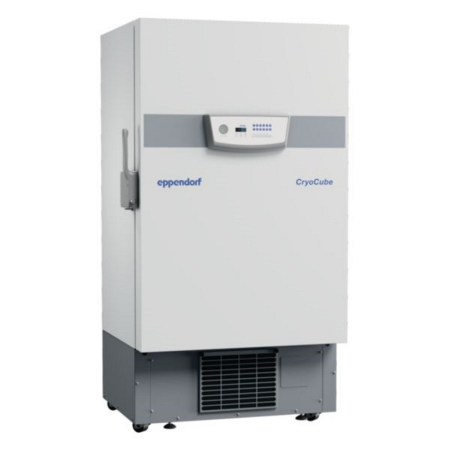

Eppendorf / New Brunswick Scientific CryoCube F570 ultra-low temperature freezer from Wolflabs. The Eppendorf CryoCube F570 ultra-low temperature freezer minimizes operating costs while providing superior protection for your critical samples. A combined insulation based on vacuum insulation panels and polyurethane foam enables extremely low energy consumption. The CryoCube F570h needs 14% less energy than its predecessor.

Features and benefits
- Quick door opening and improved temperature uniformity with new automatic vent port located within the user interface.
- Reduced energy consumption with high efficiency fan, compressor, and condenser.
- Easy opening with new ergonomic handle that requires less force.
- Easy access to samples with new magnetic closures on inner doors.

17/06/2019

New Eppendorf / New Brunswick Scientific CO2 incubator from Wolflabs

Product Update

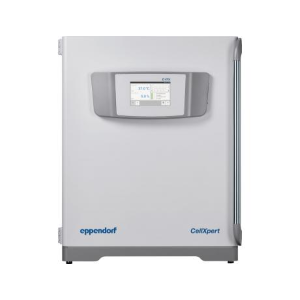

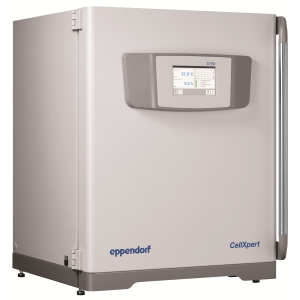

New CellXpert C170i CO2 incubator from Eppendorf / New Brunswick Scientific has been added.

Features and benefits
- Intuitive touch screen.
- Easy access USB ports.
- Changeable door hinge position.
- Heavy duty shelves.

Model C25 Incubated Floor Model Shakers


The large-capacity Classic Incubator shaker is available in two models- the standard King size Model C25 that can accommodate flasks from 50 mL to 6 liters, and the Model C25KC that is equipped with CFC-free refrigeration for above-and below-ambient applications. These floor model incubator shakers are widely used for the growth of biological cultures under varied conditions of temperature, and are built for a lifetime of continuous performance. A precision ball bearing drive mechanism is ruggedly built and accurately asembled to impart smooth rotary motion to every flask on the shaker platform.

Reproducible agitation is attained with a continuous-duty drive mechanism powered by a brushless industrial ball-bearing motor that rotates the shaker platform precisely in a one-inch (2.54 cm) circular orbit. To further minimize friction and stress, the console rests on a total of ten adjustable feet that absorb residual vibration, help stabilize the workload and prevent creeping. Shaker speed and temperature are precisely regulated by a microprocessor controller that maintains setpoints within very rigid tolerances. Touch the keypad to select and display temperatures from a few degrees above ambient to 60º (Model C25), and 17º below ambient (minimum +4º) to 60º, (Model C25KC). Carefully counterbalanced, the shaker drive imparts smooth orbital shaking action during prolonged investigations, ensuring reproducible growth conditions.

Rigid Temperature Control
Aided by a high velocity air circulation system, temperature is accurately maintained within ± 0.25º. Quick response and rigid temperature regulation is achieved through a microprocessor controller coupled with pulse-width modulation of the he ater. Air is dispersed uniformly throughout the chamber, providing rigid temperature control. This design ensures that all samples are exposed to the desired temperature regardless of sample location.

Model C25, closed view.


ADVANCED FEATURES

  • Microprocessor controller ensures precise speed and temperature accuracy, reproducibility and reliability
  • Temperature accuracy controlled within ± 0.25º
  • Temperature range, model C25KC from 17º below ambient to 60º
  • Agitation rate accurately maintained from 40 to 400 rpm
  • Speed constant with normal line voltage fluctuations, unbalanced loading or changes in workload
  • Drive shuts off automatically when lid is opened
  • Feedback control of shaking speed for precise control of agitation
  • Classic shakers accommodate virtually all interchangeable platforms used with comparable NBS shakers

Freezers -40°C to -60°C - New Brunswick

?Innova ultra-low temperature laboratory freezers from New Brunswick Scientific (NBS) use Vacuum Insulation Panel technology to provide up to 30% more internal capacity than freezers of equal size.

If you prefer a chest-style ultra-low temperature (ULT) freezer, New Brunswick Scientific’s Innova C585 is an ideal choice. This -86°C laboratory freezer maximizes storage capacity and minimizes footprint through use of highly-efficient Vacuum Insulation Panel technology. The Innova C760 is capable of holding up to 57200 samples. Vacuum Insulation Panel technology slims down the interior chamber walls to maximize capacity and minimize external dimensions.



Like New Brunswick's Innova® ULT lab freezers, Premium feezers provide quality design, advanced features, and the ability to safely preserve samples over the long term. The main difference is that Premium Freezers utilize traditional urethane insulation, 130mm / 5.1" thick, to achieve and maintain ultra-low temperatures of -86°C.

Premium Freezers from New Brunswick Scientific (NBS) offer many of the same features as our Innova® models, but use conventional urethane foam insulation to provide an economical alternative on a standard footprint.

Innova Technical Information

Model Innova C585 Innova C760
Freezer Style Chest Chest
Capacity 585 L / 20.7 cft 760 L / 26.9 cft
Max. Box Capacity 50mm / 2" Boxes: 416
75mm / 3" Boxes: 288
100mm / 4" Boxes: 192
50mm / 2" Boxes: 572
75mm / 3" Boxes: 396
100mm / 4" Boxes: 264
Energy Consumption
kWh/Day
13.9 16.8
External Dimensions*
HxWxD
109.2 x 169 x 78.5 cm
43 x 66.5 x 30.9 in
109.2 x 205 x 78.5 cm
43 x 80.7 x 30.9 in
Internal Dimensions
HxWxD
78 x 120 x 62.5 cm
30.7 x 47.2 x 24.6 in
78 x 156 x 62.5 cm
30.7 x 61.4 x 24.6 in
Net Weight 240 kg / 528 lbs 285 kg / 627 lbs
Shipping Weight 298 kg / 656 lbs 333 kg / 732 lbs
Certifications ISO 9001:2008, CE, UL & WEEE ISO 9001:2008, CE, UL & WEEE

Premium Technical Information

Model Premium C340 Premium U570
Freezer Style Chest Chest
Capacity 340 L / 12 cft 660 L / 23.3 cft
Max. Box Capacity 50mm / 2" Boxes: 260
75mm / 3" Boxes: 180
100mm / 4" Boxes: 120
50mm / 2" Boxes: 520
75mm / 3" Boxes: 360
100mm / 4" Boxes: 240
Energy Consumption
kWh/Day
10.3 15.0
External Dimensions*
HxWxD
107.5 x 134 x 84 cm
42.3 x 52.8 x 33.1 in
107.5 x 205 x 84 cm
42.3 x 80.7 x 33.1 in
Internal Dimensions
HxWxD
76 x 76 x 59 cm
30 x 30 x 23.2 in
76 x 147 x 59 cm
30 x 57.9 x 23.2 in
Net Weight 205 kg / 451 lbs 280 kg / 616 lbs
Shipping Weight 248 kg / 546 lbs 328 kg / 722 lbs
Certifications ISO 9001:2008, CE, UL & WEEE ISO 9001:2008, CE, UL & WEEE



Freezers -40°C to -60°C - New Brunswick

?Innova ultra-low temperature laboratory freezers from New Brunswick Scientific (NBS) use Vacuum Insulation Panel technology to provide up to 30% more internal capacity than freezers of equal size.

Seven energy-efficient Innova upright and chest freezers are now available, including our unique personal-sized Innova U101, designed for use on or under the lab bench; our slender Innova U360, designed to fit in even the tightest spaces; and our Innova U725, capable of holding up to 10400 more samples than lab freezers of equal size. We also offer Innova U725-G "Green" freezers in 50Hz voltages, providing advanced energy savings and lower greenhouse emissions.

Features & Benefits of NBS Innova Lab Freezers

Increased Storage Capacity

• Innova ULT laboratory freezers utilize Vacuum Insulation Panel technology to offer up to 30% more storage capacity than traditionally-insulated lab freezers, without altering external dimensions.

Energy Efficient

• NBS Lab Freezers Consume Less Power per Kilowatt-Hour than ULT freezers of similar size, resulting in lower energy bills. So you'll save thousands of dollars in operating costs over the life of your freezer. See the energy savings worksheet or electrical cord plug and receptacle requirements
• Inner Door Seals Prevent Cold Air Loss and eliminate need for a door heater, resulting in lower energy bills and less maintenance
• Flexible Low-Temperature Outer Door Seals prevent cold air loss for lower energy bills and maintenance
• Multiple Compartments with insulated inner doors protect samples and improve energy efficiency (upright models)
• Rapid Temperature Recovery After Door Opening provides enhanced sample security

Convenience

• Flush, Front-Mounted Control Panel is easy to read and reach. Features a bright LED display; a flat touch-keypad for easy cleaning. Mounted at eye-level on all upright units
• Easy-to-Open Door allows one-handed operation. Cam latch ensures secure door closure
• Heated Air Vent with Spring-Assisted Plunger to Break Ice prevents vacuum formation, allowing door to be re-opened quickly
• Low Noise & Low Heat Output allows freezer to be placed directly in the lab, without adversely affecting personnel
• New Innova Inner Door System with Molded Grip and Ice-Proof Latch provides improved accessibility
• Easy Mobility - all NBS freezers fit through a standard doorway and elevator; and are provided with heavy-duty casters. (Compact U101 provided with rear rollers)
• Front-Mounted, Washable Filter is easily accessed without tools
• Inner Doors Easily Lift Off without Tools for defrosting & cleaning
• Remote Data Logging of up to 30 freezers is possible using a single PC and optional BioCommand® SFI software. (Not available on U360)

Sample Security

• User-Defined Password Protects Alarm and Temperature Setpoints, preventing unauthorized users from altering your settings. (Uses a 4-digit code)
• Keyed Locks on Outer Doors and Lids prevent unauthorized access to valuable samples. Optional padlock adapater kit available for added security
• Lockable Plate Protects Power On-Off Switch, preventing accidental shut off
• Audible and Visual Alarms indicate high and low temperature conditions, power failure, low battery, fault conditions as well as when filter needs to be cleaned
• Automatic Restart with non-volatile memory returns setpoints to user-programmed levels after power interrupt
• Battery Backup maintains temperature settings and activates alarms during power outage
• Optional CO2 & LN2 Backup Systems protect freezer contents
• Remote Contacts provide connection to an external user-supplied security system

Other Design Advantages

• Unique Automatic Reset feature protects the microprocessor controller from harm caused by electrical spikes
• Internal Voltage Stabilizer evens out voltage fluctuations, maintaining stable power (60 Hz models only, excluding U101 & U360. External option on U101. Slide-in stabilizer optional on U360)
• Two Pass-Through Ports allow CO2/LN2 injection or addition of probes
• Two-Stage Cascade Refrigeration system uses industrial-grade, commercially available, hermetically-sealed compressors



Premium Ultra-Low Temperature (ULT) Lab Freezers from New Brunswick Scientific (NBS) are the result of over two decades of design innovations, yielding a highly efficient refrigeration system, proven to perform reliably, year after year. Like New Brunswick's Innova® ULT lab freezers, Premium feezers provide quality design, advanced features, and the ability to safely preserve samples over the long term. The main difference is that Premium Freezers utilize traditional urethane insulation, 130mm / 5.1" thick, to achieve and maintain ultra-low temperatures of -86°C. (We also offer -45°C Premium freezers in three capacities for countries using 50Hz power - specs are similar to our -86°C model U410, U570 & C660 models.)

Features & Benefits of NBS Premium Lab Freezers


Energy Efficient

• All New Brunswick freezers are exceptionally energy-efficient, saving you thousands of dollars in reduced energy consumption, as well as minimizing the carbon footprint. To see how much you can save, see the Energy Savings Worksheet PDF files, at left.
• For maximum energy savings, see our "Green" freezers and High-Efficiency Freezer models
• Cost Savings are ensured through use of energy-efficient compressors and outer door seals
• For info on electrical plugs and receptacles, click here.

Convenience

• For Operator Convenience, all Premium upright and chest model freezers include an ergonimically-positioned front-mounted control panel, easy-open door, heated air vent with plunger to prevent vacuum formation, with low noise output, remote control option, and heavy-duty lockable casters.

Sample Security

• Sample Security is ensured through password-protecting temperature and alarm settings, keyed locks for outer doors as well as for the on-off power switch, audible and visual alarms for high and low temperature, power failure, low battery and filter, and automatic restart with non-volatile memory after power interrupt.

Other Design Advantages

• Other Advantages include five storage compartments and inner doors on upright freezer models, auto restart, and easy-access, washable filter for long compressor life.



HEF™ -86°C Ultra-Low Temperature High-Efficiency Freezers
Up to 65% More Energy Efficient than Competitive Models

New HEF High-Efficiency Freezers from New Brunswick Scientific (NBS) minimize operating costs and laboratory space requirements, while providing superior protection for your critical samples. Our 570 and 410 Liter upright models, and our 660 Liter chest model are the first in the new HEF line, consuming up to 65% less energy than competitive units.

What does this mean to you?

• Savings of thousands in operating costs over the life of the freezer
• A significantly lower carbon impact on the environment when compared to competitive units
• Conformance with government, industry and environmental directives

We do it by:

• Combining superior-performing Vacuum Insulation Panels with additional insulation techniques
• Using environmentally-friendly, more efficient hydrocarbon refrigerants instead of traditional HFCs in 50 Hz models
• Improving and optimizing the circulation and compressor systems, ensuring years of uninterrupted operation and further reducing energy consumption


Innova Technical Information

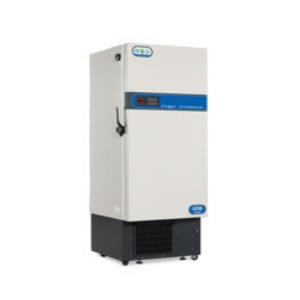

Model Innova U101 Innova U360 Innova U535 Innova U725 Innova U725-G Hydrocarbon Freezer
Freezer Style Upright Upright Upright Upright Upright
Capacity 101 L / 3.6 cft 360 L / 12.7 cft 535 L / 18.9 cft 725L / 25.6 cft 725 L / 25.6 cft
Max. Box Capacity 50mm / 2" Boxes: 60
75mm / 3" Boxes: 36
100mm / 4" Boxes: 24
50mm / 2" Boxes: 252
75mm / 3" Boxes: 180
100mm / 4" Boxes: 108
50mm / 2" Boxes: 336
75mm / 3" Boxes: 240
100mm / 4" Boxes: 144
50mm / 2" Boxes: 504
75mm / 3" Boxes: 360
100mm / 4" Boxes: 216
50mm / 2" Boxes: 504
75mm / 3" Boxes: 360
100mm / 4" Boxes: 216
Energy Consumption
kWh/Day
6.4 11.7 13.2 16.4 Air-Cooled: 15.2
Water-Cooled: 14.3
External Dimensions*
HxWxD
83 x 90 x 56.6 cm
32.7 x 35.4 x 22.3 in
195 x 67 x 86.7 cm
76.8 x 26.4 x 34.1 in
195 x 80 x 86.7 cm
76.8 x 31.5 x 34.1 in
195 x 102.5 x 86.7 cm
76.8 x 40.4 x 34.1 in
195 x 102.5 x 86.7 cm
76.8 x 40.4 x 34.1 in
Internal Dimensions
HxWxD
64 x 48 x 33 cm
25.2 x 18.9 x 13 in
136.5 x 44 x 61.5 cm
53.7 x 17.3 x 24.2 in
136.5 x 64 x 61.5 cm
53.7 x 25.2 x 24.2 in
136.5 x 86.5 x 61.5 cm
53.7 x 34.1 x 24.2 in
136.5 x 86.5 x 61.5 cm
53.7 x 34.1 x 24.2 in
Net Weight 116 kg / 255 lbs 230 kg / 506 lbs 250 kg / 550 lbs 315 kg / 693 lbs 317 kg / 698 lbs
Shipping Weight 141 kg / 310 lbs 240 kg / 528 lbs 298 kg / 656 lbs 363 kg / 799 lbs 365 kg / 804 lbs
Certifications ISO 9001:2008, CE, UL & WEEE

Premium Technical Information

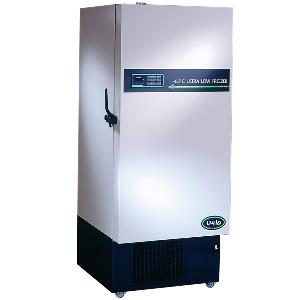

Model Premium U410 Premium U570 Premium U700
Freezer Style Upright Upright Upright
Capacity 410 L / 14.5 cft 570 L / 20 cft 700 L / 25 cft
Max. Box Capacity 50mm / 2" Boxes: 240
75mm / 3" Boxes: 180
100mm / 4" Boxes: 120
50mm / 2" Boxes: 400
75mm / 3" Boxes: 300
100mm / 4" Boxes: 200
50mm / 2" Boxes: 480
75mm / 3" Boxes: 360
100mm / 4" Boxes: 240
Energy Consumption
kWh/Day
13.0 14.2 14.4
External Dimensions*
HxWxD
191.5 x 80 x 85.2 cm
75.4 x 31.5 x 33.5 in
192.5 x 102.5 x 85.2 cm
75.8 x 40.3 x 33.5 in
195.9 x 112.1 x 87 cm
77.1 x 44.1 x 34.3 in
Internal Dimensions
HxWxD
126.5 x 55 x 57.5 cm
49.8 x 21.7 x 22.6 in
126.5 x 76.5 x 57.5 cm
49.8 x 30.1 x 22.6 in
131.6 x 86.7 x 61.3 cm
51.8 x 34.1 x 24.1 in
Net Weight 235 kg / 517 lbs 265 kg / 583 lbs 279 kg / 615 lbs
Shipping Weight 283 kg / 623 lbs 313 kg / 689 lbs 372 kg / 820 lbs
Certifications ISO 9001:2008, CE, UL & WEEE

HEF Technical Information

Model U570-HEF High-Efficiency Freezer
Freezer Style Upright
Capacity 570 L / 20 cft
Max. Box Capacity 50mm / 2" Boxes: 400
75mm / 3" Boxes: 300
100mm / 4" Boxes: 200
Energy Efficiency
kWh/Day
8.7
External Dimensions*
HxWxD
192.5 x 102.5 x 85.2 cm
75.8 x 40.3 x 33.5 in
Internal Dimensions
HxWxD
126.5 x 76.5 x 57.5 cm
49.8 x 30.1 x 22.6 in
Net Weight 296 kg / 651 lbs
Shipping Weight 327 kg / 720 lbs
Certifications ISO 9001:2008, CE, UL & WEEE

New Brunswick Benchtop Incubator Shaker E24 & E24R



Excella temperature-controlled shakers are available with choice of incubation only or incubation with added refrigeration. Benchtop E24 and E24R with added refrigeration accommodate test tubes or flasks up to 2.8 litres in a tightly-sealed growth chamber, featuring a clear acrylic lid for excellent visibility of all samples.
  • Temperature Range:
    E24: 7°C above ambient to 60°C.
    E24R: 15°C below ambient to 60°C.
    Minimum setpoint 4°C.



  • Agitation: 50 - 400 rpm, ± 2 rpm.
  • Orbit: 3/4" (1.9 cm) diameter orbit.
  • Uniform Temperature Control provided by self-correcting microprocessor feedback control and tightly constructed chamber. High-velocity fans ensure rapid thermal recovery.
  • Temperature & Speed Can Be Calibrated via keypad.
  • Crystal Clear Lid Provides Excellent Visibility minimizing the need to open the chamber; lifts out of the way for easy accessibility to samples.
  • RS-232 Provided for Data Logging.
  • Safety Features include automatic cut out of shaker when lid is opened to protect operator; and fail-safe thermostat that turns off heat if high-temperature limit is exceeded to protect cultures.

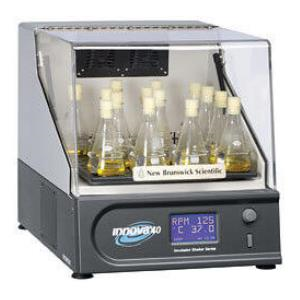

New Brunswick Benchtop Incubator Shaker Innova 40 & 40R

For precise control of temperature and speed, Innova Shakers have no equal. These versatile machines provide "set it and forget it" programming, automatically changing operating conditions on your pre-programmed command. These shakers culture a wide variety of cell types, and with high-temperature capability can perform a variety of molecular biology techniques.

User-Friendly
  • Ready When You Are. Automatically ramp temperature up, so your study can get started when you arrive in the lab. Speed up, slow down or stop agitation on a timed basis. Or let your shaker place your cultures in metabolic stasis until you're ready to attend to them. It's all possible with our easy-to-use programmable controller.
  • Controls for Entering & Viewing Setpoints are Exceptionally Easy-to-Use. Display is clearly visible from all angles, across the room, and in the dark
  • Output Signal to RS232 Enables Data Logging and Computer Control
  • Timed Studies Can Be Programmed for Automatic Agitation Shut-Off. End-of-study alarm & status light can be deactivated for continuous operation
  • Audible and Visible Alarms alert the user to setpoint deviations. Audible alarm can be muted
  • Electronics & Mechanical Components Are Enclosed, Protected From Accidental Spills
  • Modular Refrigeration System in Innova 40 lets you easily add refrigeration option at any time, even in the field
  • Automatic Restart After Power Interrupt with Non-Volatile Memory keeps studies running smoothly
  • NBS Shakers Are the Quietest-Running In the Industry providing a more favorable work environment
  • A Wide Variety of Interchangeable Accessory Platforms are available to accommodate gel trays, culture tubes and flasks. Platforms from previous NBS model shakers can be used
  • Easy Opening Lids. Hydraulic arms on Innova 40 make it easy to raise and keep the lid open.
  • Intelligent Design Provides Convenient Access to all electronic and heating/cooling components to simplify maintenance
  •







Programmable controller automates parameter changes on a timed basis. Holds up to 4 programs, 15 steps each. Can eliminate unnecessary return trips to the lab, automates heat inductions and more.   Large, easy-to-read display screen clearly shows operating parameters and actual value. Displayed parameters can be selected by user. A single knob selects all operating conditions easily and quickly. Screen size: 23/4" x 5" (6.98 x 12.7 cm)

Culture Friendly
  • Microprocessor Controls With Self-Correcting PI Feedback precisely regulate speed, running time, and incubation, as well as optional refrigeration, photosynthetic lighting and UV decontamination
  • Uniform and Precise Temperature Control: ±0.1°C with uniformity of ±0.25°C at 37°C
  • Expanded Temperature Range Eliminates Need to Order a More Expensive High-Temperature Model.
  • Innova 40: 5°C above ambient to 80°C
  •
  • Innova 40R: 15°C below ambient to 80°C*
    (* Minimum temperature 4°C)
  •
  • Speed Range: 25 - 500 rpm (±1 rpm) Provides Versatility for Culturing a Wide Range of Cell Types
  •
  • Unique Acceleration - Deceleration Circuit prevents sudden starts and stops. Minimizes mechanical damage for longer shaker life. Eliminates flask closure wetting which would otherwise interfere with oxygen transfer

Safe & Durable
  • NBS' Often Imitated, But Never Duplicated Triple-Eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform. Ensures dependable day-in and day-out performance
  • Open-Lid Cutout Switch stops agitation when chamber is open
  • Thermostat Fail-Safe shuts off heaters if high limit is exceeded
  • Cool-Running Brushless Motor never requires lubrication; and provides years of long life
  • cETLus Certified. Meets CSA, UL and CE standards
  • Comprehensive Warranty - Covers three-years on parts and two years on labor
  •
Options
  • Refrigeration - select Model Innova 40R or add modular refrigeration system at any time
  • Orbit - Model 40/40R available in 3/4" or 1" diameter orbits
  •
  • Validation Packages Available

New Brunswick Benchtop Incubator Shaker Innova 4200 & 4230

Our most versatile benchtop shaker, Model 4230 can agitate, incubate, refrigerate and illuminate. When refrigeration is not needed, Model 4200 does the job. These multi-purpose instruments have the same size shaker platform as Models 4000/4080, but accept flasks to 6 Litres, and have two stationary shelves for added incubating or storing capability. With a front-opening door, they can be used on the bench, or floor-stacked two high for space savings.


UNIQUE ADVANTAGES
  • Wide Temperature Range: 5°C above ambient to 80°C in 60 Hz models, and to 75°C in 50 Hz models. In refrigerated Model 4230, from 20°C below ambient. (Minimum setpoint is 4°C)."
  • Agitation 25 to 400 rpm; 25 to 300 rpm when stacking two units; ±1 rpm
  • Two Adjustable-Height, Stationary Shelves provide added storage for incubating plates and other samples
  • Units Can Be Used On the Bench or Stacked* Two High on the floor for space-savings
  • Optional Dual-Temperature Programming Timer Automates Switching Between Two Temperatures, and Cycling Agitation On or Off. Limits metabolic activity in studies that end overnight, saving a return trip to the lab; and facilitates heat inductions (Model 4230 only)
  • Large Viewing Window & Internal Light Provide Clear Chamber Visibility, minimizing the need to open the door. Rapid air circulation produces quick temperature equilibration and recovery, when needed
  • In-Chamber, Moisture-Proof Receptacle Provides Power for an Accessory Instrument such as rocker, roller, or second shaker
  • Large-Capacity Accessory Platforms Accept Glassware Up to 6 L; Snap in place without tools, using optional Quick Change Platform Kit
  • Optional 5-Port Gassing Manifold permits direct gassing into flasks for anaerobic cultures
  • Optional Photosynthetic Light Bank with external on-off switch is available for culturing plant cells (Model 4230 only)
  • * Requires Stacking Kit
  •
Shaker Capacity Chart

Flask Size (mL) Dedicated Platform Universal Platform
10 N/A 109
25 N/A 64
50 64 45
125 34 21
250 25 18
500 16 14
1000 9 8
2000 5 5
2800 4 4
4000 4 4
5000 N/A 4
6000 2 2

New Brunswick Floor Standing Shaking Incubator Excella E25 & E25R

Excella

temperature-controlled shakers are available with choice of incubation only or incubation with added refrigeration. Designed for larger-capacity needs, console-styled E25 and E25R models accept flasks up to 6 liters and accommodate as many as (12) 2 Liter flasks.

  • Temperature Range:


E25: 7°C above ambient to 60°C.
E25R: 15°C below ambient to 60°C.
Minimum setpoint 4°C.


  • Agitation: 50 - 400 rpm, ± 2 rpm.
  • Orbit: 1" (2.54 cm) orbit.
  • Uniform Temperature Control provided by self-correcting microprocessor feedback control and tightly constructed chamber. High-velocity fans ensure rapid thermal recovery.
  • Temperature & Speed Can Be Calibrated via keypad.
  • Large Viewing Window in Top-Opening Lid Provides Clear Chamber Visibility minimizing the need to open the chamber.
  • RS-232 Provided for Data Logging.
  • Safety Features include automatic cut out of shaker when lid is opened to protect operator; and fail-safe thermostat that turns off heat if high-temperature limit is exceeded to protect cultures.
  • Four Adjustable Feet Absorb Vibration, Help Stabilize the Workload, for smooth and dependable shaking, year after year.
  •

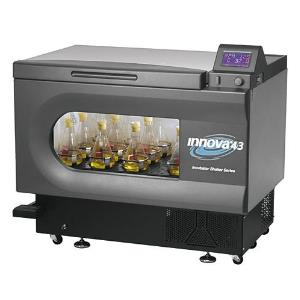

New Brunswick Floor Standing Shaking Incubator Innova 43 & 43R

Innova 43 Incubator Shakers and Innova 43R with added refrigeration are the perfect choice for handling large quantities of cultures with precision and ease. This shaker accepts glassware up to 6 liters, and comes with a programmable controller to automate parameter changes on the basis of time. Choice of 1" or 2" orbits, and options for humidity probe, gassing and UV germicidal light are just a few of the many available options to choose from.

User-Friendly
  • Ready When You Are. Automatically ramp temperature up, so your study can get started when you arrive in the lab. Speed up, slow down or stop agitation on a timed basis. Or let your shaker place your cultures in metabolic stasis until you're ready to attend to them. It's all possible with our easy-to-use programmable controller. Optional photosynthetic lighting and UV decontamination are also programmable on Model 43R.
  • Controls for Entering & Viewing Setpoints are Exceptionally Easy-to-Use. Display is clearly visible from all angles, across the room, and in the dark
  • Output Signal to RS232 Enables Data Logging and Computer Control
  • Timed Studies Can Be Programmed for Automatic Agitation Shut-Off. End-of-study alarm & status light can be deactivated for continuous operation
  • Audible and Visible Alarms alert the user to setpoint deviations. Audible alarm can be muted
  • Multi-Function Reservoir humidifies chamber to reduce sample evaporation and protect unit from spills. Built-in drain facilitates clean up.
  • Electronics & Mechanical Components Are Enclosed, Protected From Accidental Spills
  • Automatic Restart After Power Interrupt with Non-Volatile Memory keeps studies running smoothly
  • NBS Shakers Are the Quietest-Running In the Industry providing a more favorable work environment
  • A Wide Variety of Interchangeable Accessory Platforms are available to accommodate gel trays, culture tubes and flasks. Platforms from previous NBS model shakers can be used
  • Easy Opening Lids. Foot pedal assist provides hands-free operation
  • Casters Facilitate Mobility
  •







Programmable controller automates parameter changes on a timed basis. Holds up to 4 programs, 15 steps each. Can eliminate unnecessary return trips to the lab, automates heat inductions and more.   Large, easy-to-read display screen clearly shows operating parameters and actual value. Displayed parameters can be selected by user. A single knob selects all operating conditions easily and quickly. Screen size: 23/4" x 5" (6.98 x 12.7 cm)

Culture Friendly
  • Microprocessor Controls With Self-Correcting PI Feedback precisely regulate speed, running time, and incubation, as well as optional refrigeration, photosynthetic lighting and UV decontamination
  • Uniform and Precise Temperature Control: ±0.1°C with uniformity of ±0.25°C at 37°C
  • Expanded Temperature Range Eliminates Need to Order a More Expensive High-Temperature Model.
  •
  • Innova 43: 5°C above ambient to 80°C
    Innova 43R: 15°C below ambient to 80°C*
    (* Minimum temperature 4°C)
  •
  • Speed Range: 25 - 500 rpm (±1 rpm) Provides Versatility for Culturing a Wide Range of Cell Types
  • Unique Acceleration - Deceleration Circuit prevents sudden starts and stops. Minimizes mechanical damage for longer shaker life. Eliminates flask closure wetting which would otherwise interfere with oxygen transfer
  •
Safe & Durable
  • NBS' Often Imitated, But Never Duplicated Triple-Eccentric Drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform. Ensures dependable day-in and day-out performance
  • Open-Door Cutout Switch stops agitation when chamber is open
  • Thermostat Fail-Safe shuts off heaters if high limit is exceeded
  • Cool-Running Brushless Motor never requires lubrication; and provides years of long life
  • cETLus Certified. Meets CSA, UL and CE standards
  • Comprehensive Warranty - Covers three-years on parts and two years on labor
  •
Options
  • Refrigeration - select Model Innova 43R
  • Orbit - select 1" or 2" orbit
  • Humidity Probe - monitors humidity levels throughout your process
  • 12-Port Gassing Manifold - permits direct gassing into flasks or other vessels
  • Ultraviolet Light - a germicidal lamp in the airflow path outside the chamber reduces the bio-burden of circulated air on Model Innova 43R only
  • Programmable Photosynthetic Light Bank - is available for Innova 43R only
  • Stationary Accessory Basket - clips to the side wall, to enable incubating/refrigerating plates or other glassware
  • Validation Packages Available
  •

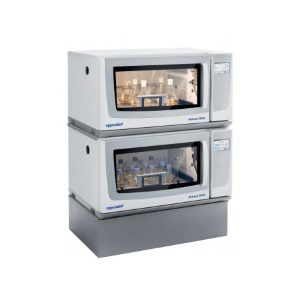

New Brunswick Floor Standing Shaking Incubator Innova 44 & 44R

New Brunswick Scientific's Innova 44 Series Shakers can be stacked up to three units high (as shown), tripling the capacity of space usually occupied by a single incubator shaker. Based on the extremely popular Innova 4400 series, the Innova 44 includes many new standard features and the latest technology available. Innova Model 44 offers incubation, while Innova Model 44R adds refrigeration.

CONVENIENCE
  • Space-Saving Door glides up and out of your way
  • Slide-Out Platform provides easy access to all samples
  • Intuitive Programming allows multiple parameter changes-temperature, speed, photosynthetic lights* and UV light decontamination*. All are easily changed on a timed basis. Ideal for heat inductions or temperature reductions to slow growth, eliminating unnecessary trips back to the lab.
  • Double-Pane, Thermal Glass provides excellent insulation and clear observation of cultures
  • Interior Chamber Light enhances observation
  • Multi-Function Reservoir humidifies chamber to reduce sample evaporation and protect unit from spills. Built-in drain facilitates clean up
  • Pull-Out Service Module allows convenient access to all electronic and heating/cooling components
* Optional accessories



DEPENDABILITY
  • NBS Renowned Triple-Eccentric Gyrotory® Drive provides smooth, uniform motion to cultures, while ensuring long shaker life and quiet operation. Others may claim to utilize a similar design, but only NBS' drive is built on a cast-iron base, with shafts machined to tolerances within 0.0002" (0.00051 cm)
  • Extremely Rugged Construction built with high-quality materials for years of continuous, worry-free operation
  • Audible and Visible Alarms alert user to speed and temperature deviations
  • Backed by an Industry-Leading Warranty and factory-trained field service support


PERFORMANCE
  • Superior Air Circulation System with low-watt-density resistance heaters for rapid temperature equilibration and excellent uniformity
  • Precisely-Regulated Temperature, ranging from +5ºC above ambient to 80ºC (-20ºC below ambient to 80ºC for Innova 44R); accurate within ±0.1ºC
  • Dynamic Speed Range from 25 to 400 rpm controlled within ±1 rpm
  • Timed Shaking from 0.1 to 99.9 hours, or continuous shaking
  • RS-232 Computer Interface allows remote data logging and program control using standard lab management software
  • Heavy-Duty Door Gasket maintains a leak-free seal and ensures excellent temperature uniformity
  • Extra-Large Chamber holds flasks up to 5 liters


Shaker Capacity Chart

Flask Size (mL) Dedicated Platform Universal Platform
50 N/A 91
125 60 39
250 40 30
500 24 24
1000 15 14
2000 12 8
2800 6 6
4000 6 6
5000 N/A 6*
* Using Sticky Tape; less with clamps

New Brunswick Floor Standing Shaking Incubator Innova 4900

This environmentally-controlled chamber is designed to culture dozens, and even hundreds, of samples on up to four independently- controlled shakers. Heavy-duty shakers are ordered separately, to accommodate your specific needs. The system includes programmable regulation of heat, refrigeration and humidification as standard; photosynthetic operation is optional.

Innova 4900 (right) accessorized with four shakers with slide out platforms. The large glass door and illuminated chamber (with on-off switch) makes it easy to view all cultures in this space-saving multi-tiered system.

Unique Advantages
  • Operates One to Four Shakers, Simultaneously. Agitation is Individually Controlled on Each Shaker; and each can be individually programmed to start up or shut off at a pre-set time. Accessory shakers with choice of 1" or 2" (2.5 or 5.1 cm) orbit sold separately
  • Versatile System Converts from an Antibiotic Screening Facility to a Photosynthetic Chamber; from a warm-room environment to a cold room
  • Temperature Range 20°C below ambient to 60°C. Minimum setpoint is 4°C
  • Agitation 25 - 400 rpm with 1" (2.5 cm) stroke or 25 to 300 rpm with 2" (5.1 cm) stroke, ±1 rpm
  • Humidity Controller Minimizes Evaporation of cultures by injecting vapor into the chamber atmosphere
  • Powerful Heater and Fan Provide Rapid Heat-Up Capability and Temperature Uniformity throughout the chamber
  • Computer-Compatible For Automated Setpoint Changes using optional software package*. Program agitation on-off cycling, humidity control, multiple-temperature changes and photosynthetic lighting sequences on the basis of time.
  • Accommodates Up to Two Optional High-Intensity Photosynthetic Light Manifolds with Programmable Temperature and Light Controller. Dual-channel, 24-event per channel time, switches lamps on/off automatically and switches between two temperatures (without the aid of an external computer.) Multiple light programs may be established for each day of the week, each with a different cycle length (1 min. to 24 hrs.) and each operating at a choice of two temperatures.
  • Thermally-Insulated, Electrically-Heated Glass Door** with double-pane tempered glass minimizes heat loss and condensation; permits clear observation, minimizing the need to open the chamber .
  • Choice of Lift-Out or Slide-Out Accessory Platforms for easy access to all size flasks from 10 mL to 6 L. Sliding platforms (shown above) glide in place and lock down without tools. Lift-out platform recommended for high humidity applications
  •
*   Requires computer and BioCommand° Plus or BioCommand° Lite software. For photosynthetic work, additionally requires light manifolds
**   Standard door is hinged on left side, but is reversible to fit any room layout

Freezer New Brunswick Scientific Green

NBS Hydrocarbon "Green" Freezers
Good for the Environment. Great for your lab.

NBS is proud to offer their first hydrocarbon-based ULT freezers, in an effort to deter global warming and meet the environmental requirements of today’s laboratory. Their new hydrocarbon freezers not only have the same advanced features as their original Innova® U725 and Premium U570 models, but also offer a 5 - 10% decrease in power consumption. The result is a decrease in yearly operating costs, an eco-friendly energy-saving design, and the elimination of the use of detrimental HFC refrigerants that contribute to global warming.

Hydrofluorocarbons, currently used in the refrigerant industry, are potent greenhouse gases which can persist in the atmosphere for as long as 15 years. Hydrocarbon is quickly becoming a popular, ecologically neutral replacement gas, and has already been safely adopted in the commercial food and beverage refrigeration industry.

These new NBS "green" freezers have roughly the equivalent hydrocarbon content of a typical lighter. In addition, they have been designed to meet the latest EC regulations and ACRID guidelines for the use of hydrocarbon refrigerants. All NBS freezers are CE certified, meet WEEE Directives for disposal, and are 95 - 98% recyclable (by weight).

NBS is offering both a traditional air-cooled and new water-cooled system for those facilities able to utilize this technology for increased efficiency and energy savings.
NBS "Green" Hydrocarbon Freezer Ordering Information

Catalog
Number
Model Number Capacity Description
U9440-0005
U9440-0004
Innova U725-G
Innova U725-G
725L
725L
Air Cooled, 230V, 50hz Propane
Water Cooled, 230V, 50hz Propane
U9440-0005
U9440-0004
Premium U570-G
Premium U570-G
570L
570L
Air Cooled, 230V, 50hz Propane
Water Cooled, 230V, 50hz Propane


Ask about our numerous options for CO2 & LN2 Backup systems, inventory racking and more.

New Brunswick Premium -45°C Freezers

New Brunswick Scientific’s broad line of laboratory freezers are well known for their superior quality, reliability and efficiency. This unsurpassed excellence has been integrated in our line of -45°C freezers. Using high capacity compressors and our innovative refrigeration design, our -45°C freezers are ideal for the most sensitive storage requirements. Three models are offered; two uprights for easy access to samples, and a chest model ideal for longterm storage.

Technical Information

Model: U410 -45 Upright U570 -45 Upright
Catalogue No. U9260-0045 U9270-0045
External Dimensions (height x width x depth) 191.5 x 80 x 85.2 cm 192.5 x 102.5 x 85.2 cm
Internal Dimensions (height x width x depth) 126.5 x 55 x 57.5 cm 126.5 x 76.5 x 57.5 cm
Capacity 410 Litres / 14.5 cubic feet 570 Litres / 20.0 cubic feet
Temperature Range -10°C to -45°C, Programmable in 1°C Increments, at Ambient Temperature Up to 32°C
Net Weight 230 Kg / 506 lb 260 Kg / 572 lb
Lock for Outer Doors/Lid Removable Barrel Lock Standard
Compartments & Shelving 5 Compartments with 4 Adjustable-Height Shelves N/A
Interior Construction Insulated Inner Doors; Stainless Steel Grade 304L Cabinet
Vacuum Prevention Heated Air Vent with Plunger to Prevent Vacuum Formation
Security Unique 4-Digit Password for Temperature Set Point and Alarms
Visual Alarms Hi/Low Temperature, Power Out, System Fail, Battery Low, Filter Clean, Fault Analysis
Audible Alarms High/Low Temperature, Power Out, System Fail
Insulation Material Polyurethane Foam, 130mm thick
Remote Alarm Contacts Provides Connection to External, User-Supplied Alarm Monitoring System
Power Source (EU) 220-240V 50Hz single phase 220-240V 50Hz single phase
Current Rating (EU) 230V 4 amps 230V 6 amps
Operating Environment Indoor use; Altitude up to 2000m; Temperature range 5°C to 40°C;
Maximum relative humidity 80% for temperatures up to 32°C;
Power supply voltage fluctuations not to exceed ± 10% of the nominal voltage;
Installation category II; Pollution degree 2

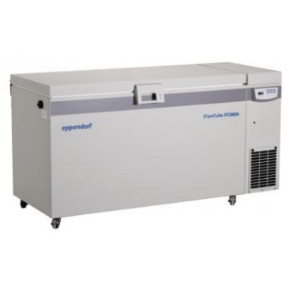

Model: C660 -45 Chest
Catalogue No. U9250-0045
External Dimensions (height x width x depth) 107.5 x 205 x 84 cm
Internal Dimensions (height x width x depth) 76 x 147 x 59 cm
Capacity 660 Litres / 23.3 cubic feet
Temperature Range -10°C to -45°C, Programmable in 1°C Increments, at Ambient Temperature Up to 32°C
Net Weight 275 Kg / 605 lb
Lock for Outer Doors/Lid Removable Barrel Lock Standard
Compartments & Shelving 5 Compartments with 4 Adjustable-Height Shelves N/A
Interior Construction Insulated Inner Doors; Stainless Steel Grade 304L Cabinet
Vacuum Prevention Heated Air Vent with Plunger to Prevent Vacuum Formation
Security Unique 4-Digit Password for Temperature Set Point and Alarms
Visual Alarms Hi/Low Temperature, Power Out, System Fail, Battery Low, Filter Clean, Fault Analysis
Audible Alarms High/Low Temperature, Power Out, System Fail
Insulation Material Polyurethane Foam, 130mm thick
Remote Alarm Contacts Provides Connection to External, User-Supplied Alarm Monitoring System
Power Source (EU) 220-240V 50Hz single phase
Current Rating (EU) 230V 4 amps
Operating Environment Indoor use; Altitude up to 2000m; Temperature range 5°C to 40°C;
Maximum relative humidity 80% for temperatures up to 32°C;
Power supply voltage fluctuations not to exceed ± 10% of the nominal voltage;
Installation category II; Pollution degree 2

Shakers - Non Incubating - New Brunswick Scientific

?When built-in temperature control is not needed, NBS Excella Open-Air Shakers are the solution. Ruggedly-built for use on the bench, in an incubator, or in a warm- or cold-room, these shakers are available in three sizes. All but the E1 are microprocessor-controlled with digital display.

- Agitation: 50 - 400 rpm, ± 2 rpm
- Orbit: E1, E2 & E5: 3/4" (1.9 cm) diameter circular orbit E10: 1" (2.54 cm) diameter circular orbit
- Speed Can Be Calibrated via keypad
- Accessory Platforms are interchangeable with those from other same-sized NBS shakers



Technical Information

Model: Model Max Platform Size Speed Control
M1354-0001 E1 330x280mm 50-400rpm Analogue
M1350-0001 E2 330x280mm 50-400rpm Digital
M1355-0001 E5 460x460mm 50-400rpm Digital
M1351-0001 E10 760x460mm 50-400rpm Digital



Shakers - Non Incubating - New Brunswick Scientific

?For shaking in ambient conditions: on the bench, in an incubator or in a warm or cold room, the Innova Platform Shakers are the instrument of choice. Six ruggedly-built models provide reliable, continuous-duty shaking of test tubes and flasks to 6 Liters.

Unique Advantages

- Low Profile - Less than 6" (15 cm) Tall enables use of multiple shakers in an incubator or environmental chamber -
- Optional, Oversize Platforms and Stabilizer Kits Increase Capacity by 45%. Models 2050, 2150 and 2350 are factory-ready. Field conversion kits are also available to stabilize the shaker when increasing capacity of a Model 2000 to a 2050, 2100 to 2150, or 2300 to 2350.
- Agitation 25 - 500 rpm, ±1 rpm
- Optional Temperature/Speed Monitoring Kit with RTD sensor displays and records process values. Innova 2100 & 2300 Series only. Catalog No. M1190-9909.
- Space-Efficient, Four-Tier Racking System is available to house up to eight Model 2300 shakers

Technical Information

Model: Model Max Platform Size Speed

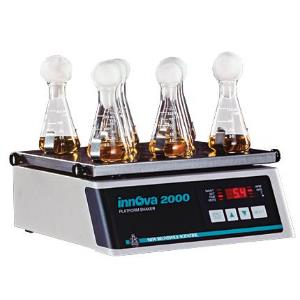

M1190-0002 Innova 2000 330x280mm 25-500rpm
M1190-0012 Innova 2050 406x305mm 25-500rpm

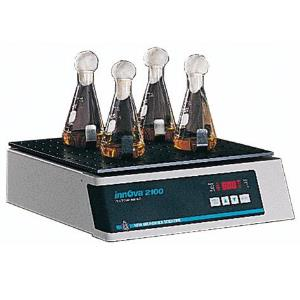

M1194-0002 Innova 2100 457x457mm 25-500rpm

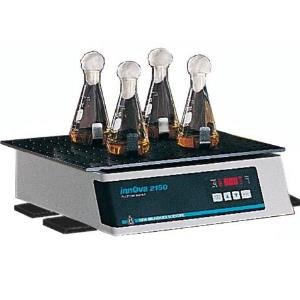

M1194-0012 Innova 2150 609x457mm 25-500rpm
M1191-0002 Innova 2300 (25.4mm orbit) 762x457mm 25-500rpm
M1191-0022 Innova 2300 (50.8mm orbit) 762x457mm 25-300rpm

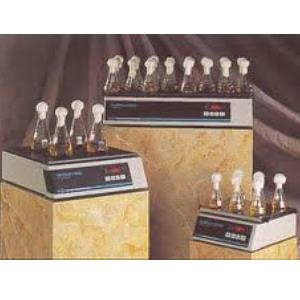

M1191-0012 Innova 2350 (25.4mm orbit) 914x609mm 25-500rpm
M1191-0032 Innova 2350 (50.8mm orbit) 914x609mm 25-300rpm



New Brunswick Scientific Shakers Innova 5000

This industrial workhorse is designed to uniformly shake hundreds of samples, day-in and day-out, under the extreme conditions of an environmental room. New engineering concepts in load balancing minimize stress and vibrations, even when fully loaded and running at the maximum speed of 350 rpm. Innova 5000 accepts hundreds of samples on up to six accessory platforms. As pictured, platforms are cantilevered from a central column to provide easy access to all glassware, and lock in place without tools. The control module may be mounted centrally on the base (as shown) or may be wall mounted.

Unique Advantages

- Three-Tiered Shaker Simultaneously Agitates Hundreds of Samples on Up to Six Large-Capacity Platforms*
- 2" (5.1 cm) circular orbit is that most commonly used in screening studies
- Agitation 25 - 350 rpm, ±1 rpm
- Cantilevered Platforms Provide Unobstructed Access to All Flasks. Accepts 10 mL to 4L flasks on lower two tiers; and flasks up to 6 L on the top tier
- Removable Control Module Can Be Panel Mounted or Positioned Remotely Outside the Chamber. Fiber-optic link provides remote monitoring and control capability up to 100 ft. (30.5 m) away; eliminates both electrical "noise" interference as well as the need for bulky electrical wires
- Precisely Balanced, Extremely Stable Shaker Mechanism with Massive Cast-Iron Base Need Not be Bolted to the Floor
- Four Cushioned Idlers Mounted to the Corners of the Base Stabilize the Shaker, Ensure Uniform Motion without undue strain or structure fatigue
- Designed with the Aid of Computer Stress Analysis Tests, the structure has been built to withstand a lifetime of continuous shaking regardless of the workload
- Agitation is precisely maintained between 25 and 350 rpm even with line voltage fluctuations as high as ±10%
- Cool-Running Motor has no appreciable affect on chamber temperature, making it well-suited to environmental rooms
- Elimination of commutators and motor brushes minimize wear and maintenance
- Optional Output Signal Can Be Provided for Recording Speed on an external chart recorder



Technical Information

Model: Model Max Platform Size Speed
M1196-0002 Innova 5000 825x680mm x 6 25-350rpm



Shaking Incubators - Benchtop Refrigerated and Non-Refrigerated - New Brunswick

The benchtop Excella E24 (incubated) and E24R (incubated/refrigerated) shaker provides superior performance and advanced features at an affordable price. A wide variety of platforms, clamps and test tube racks provide for virtually unlimited flexibility. The Excella E24 and E24R offer field calibration of temperature and speed through the microprocessor-controlled touch pad. Excella 24 and Excella 24R are simply the best performing biological shakers in their price class.

Excella E24 benchtop incubator shakers and E24R with added refrigeration

• Heavy-duty counterbalanced drive provides long life and quiet and dependable operation under moderate loads
• Large 18" x 18" accessory platform (sold separately) accommodates flasks up to 2.8 L
• Microprocessor controls enable precise settings of speed and incubation temperature
• Unique acceleration/deceleration circuitry prevents sudden starts and stops protecting your cells
• Open lid cut off switch immediately stops shaking when lid is open
• Clear large lid provides excellent visibility minimizing the need to open the lid

Technical Specifications

Model Excella E24 Excella E24R
Platform size (W x D): 457 x 457 mm 457 x 457 mm
Temperature range: Ambient +7°C to 60°C 15°C below ambient to 60°C
Temperature uniformity: ±0.25°C at 37°C ±0.25°C at 37°C
Speed (rpm): 50 to 400 50 to 400
Orbit: 19 mm 19 mm
Dimensions (W x D x H)*: 560 x 762 x 610 mm 560 x 762 x 610 mm
Net weight: 60 kg 80 kg



Shaking Incubators - Floor Standing - Refrigerated and Non-Refrigerated - New Brunswick

The large console Excella 25 (Incubated) and Excella 25R (Incubated/refrigerated) shaker provides superior performance, large capacity and advanced features at an affordable price. A wide variety of platforms, clamps and test tube racks provide for virtually unlimited flexibility. The microprocessor controls precisely control temperature and shaking speed and the feedback control and fans provide for rapid temperature recovery when lid is open and accurate and uniform temperatures.

Excella E25 console incubator shakers and E25R with added refrigeration

• Heavy-duty counterbalanced drive provides long life and quiet and dependable operation under moderate loads
• Large 30" x 18" accessory platform (sold separately) accepts flasks up to 6 L
• Easy-open lid and foot pedal release provide for hands free operation
• Large viewing window in the lid allows for clear viewing of the samples without opening the chamber
• Microprocessor controls enable precise setting of speed and incubation temperature
• RS-232 provided for data logging

Technical Specifications

Model Excella E25 Excella E25R
Platform size (W x D): 762 x 457 mm 762 x 457 mm
Temperature range: Ambient +7°C to 60°C 15°C below ambient to 60°C
Temperature uniformity: ±0.25°C at 37°C ±0.25°C at 37°C
Speed (rpm): 50 to 400 50 to 400
Orbit: 25 mm 25 mm
Dimensions (W x D x H)*: 127 x 77 x 85 cm
(open door requires
additional 165 cm height)
127 x 77 x 85 cm
(open door requires
additional 165 cm height)
Net weight: 167 kg 196 kg



Shaking Incubators - Benchtop Refrigerated and Non-Refrigerated - New Brunswick

Innova® 40 & 40R

Innova 40 incubator shakers provide very broad temperature capabilities for culturing a wide variety of organisms in flasks up to 3 L. Refrigeration module is built into the Innova 40R, or can be easily added to Model 40, at any time.

Innova 40 benchtop incubator shakers

• Compact benchtop model—fits on the bench and holds flasks up to 3 L
• Programmable Innova controls—automatically changes temperature and speed at timed intervals
• High visibility cover—lifts easily to access all samples
• Innova 40 can be upgraded with refrigeration

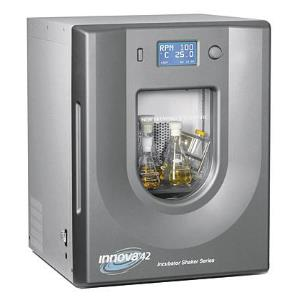

Innova® 42 & 42R

The Innova 42 and refrigerated Innova 42R provides labs with the most flexible options. These units are compact enough to fit on top of a lab bench, underneath the counter, or can be stacked 2-high on the floor for maximum capacity with minimal floor space.

Innova 42 stackable, on- or under-bench incubator shakers

• Our most versatile model—fits on the bench, under the counter, on the floor or double stacked to provide large capacity in minimal space.
• Programmable Innova controls—automatically changes temperature, speed and optional photosynthetic and UV germicidal lights at timed intervals
• Internal moisture-proof power receptacle—allows for the use of powered equipment inside the incubator
• Large viewing window and internal light—for easy viewing of samples without the need to open the door
• Accommodates flasks up to 6 L

Technical Specifications

Model Innova 40 Innova 40R Innova 42 Innova 42R
Platform size (W x D): 457 x 457 mm 457 x 457 mm 457 x 457 mm 457 x 457 mm
Temperature range: Ambient +5°C to 80°C 15°C below ambient to
50°C (min. 4°C)
Ambient +5°C to 80°C 20°C below ambient to 80°C
Speed (rpm): 25 to 500 25 to 500 25 to 400 25 to 400
Orbit: 19 and 25 mm 19 and 25 mm 19 and 25 mm 19 and 25 mm
Temperature uniformity: ±0.25°C at 37°C ±0.25°C at 37°C ±0.25°C at 37°C ±0.25°C at 37°C
Innova control programmer
Timer: 0.1 to 99.9 hours +
continuous operation
0.1 to 99.9 hours +
continuous operation
0.1 to 99.9 hours
+ continuous operation
0.1 to 99.9 hours
+ continuous operation
Memory: Non volatile with automatic
power failure restart
Non volatile with automatic
power failure restart
Non volatile with automatic
power failure restart
Non volatile with automatic
power failure restart
Program modes: • Constant speed and temperature
• Timed shaking
• Programmable multi-steps
• RS-232 control
• Constant speed and temperature
• Timed shaking
• Programmable multi-steps
• RS-232 control
• Constant speed and temperature
• Timed shaking
• Programmable multi-steps
• RS-232 control
• Constant speed and temperature
• Timed shaking
• Programmable multi-steps
• RS-232 control
Multi-step programming
Stored programs
Steps per program

4
15

4
15

4
15

4
15
Dimensions (W x D x H): 558.8 x 762 x 610 mm
(With lid open, height is 1020 mm)
558.8 x 762 x 610 mm
(With lid open, height is 1020 mm)
620 x 754 x 820 mm
(1308 mm depth with door open)
620 x 754 x 820 mm
(1308 mm depth with door open)
Net weight: 60.3 kg 79.4 kg 98.5 kg 121 kg



Shaking Incubators - Floor Standing - Refrigerated and Non-Refrigerated - New Brunswick

Innova® 44/44R
The flagship Innova shaker line provides superior shaking and control with its triple-eccentric drive mechanism for worry-free, 24/7 shaking and incubation. Large LCD panel displays all pertinent parameters. The Innova 44/44R system provides space-saving design with stacking capabilities, glide up doors and an ergonomic slide-out platform.

Innova 44 stackable incubator shakers—programmable
• Innova programmable controller—provides “set it and forget it” convenience. Automatically changes temperature, speed, optional photosynthetic and UV germicidal lights at timed intervals.
• Slide-out platform mechanism—provides easy and effortless access to flasks located in the front and back of the shaker/incubator
• Glide up front door—requires very little space when opened
• Stackable—up to three units for maximum space savings
• Double pane thermal glass—provides excellent insulation with easy viewing
• Interior chamber light
• Holds flasks up to 5 L


Innova® 43 & 43R
The large capacity Innova 43 and refrigerated Innova 43R incubator shakers accommodate numerous culture flasks, up to 6 L. Flask loading and unloading is easily accomplished with the foot pedal release and easy open lid design. Standard swivel casters provide easy mobility.

Innova 43 console incubator shakers—programmable
• Console style shaker/incubator with triple-eccentric drive—provides large capacity shaking for flasks up to 6 L
• Programmable Innova controls—automatically changes temperature, speed and optional photosynthetic and UV germicidal lights at timed intervals
• Top mounted controls and display—for easy, ergonomic viewing and setting
• Foot pedal release with easy opening lid—provides hands free operation
• Lighted interior—for easy sample viewing thru thermal glass
• RS-232 port for data logging and control
• Multi-function reservoir with built in drain—humidifies chamber to reduce sample evaporation and protects unit from spills

Technical Specifications

Model Innova 44 Innova 44R Innova 43 Innova 43R
Platform size (W x D): 76.2 x 45.7 cm 76.2 x 45.7 cm 76.2 x 45.7 cm 76.2 x 45.7 cm
Temperature range: Ambient +5°C to 80°C 20°C below ambient to 80°C Ambient +5°C to 80°C 20°C below ambient to 80°C
Temperature uniformity: ±0.25°C at 37°C ±0.25°C at 37°C ±0.25°C at 37°C ±0.25°C at 37°C
Speed (rpm):
25 mm orbit: 25 to 400 25 to 400 25 to 500 25 to 500
51 mm orbit (or 2 stacked units 44/44R): 25 to 300 25 to 300 25 to 300 25 to 300
51 mm orbit (or 3 stacked units 44/44R): 25 to 250 25 to 250 - -
Innova control programmer
Timer: 0.1 to 99.9 hours
+ continuous operation
0.1 to 99.9 hours
+ continuous operation
0.1 to 99.9 hours
+ continuous operation
0.1 to 99.9 hours
+ continuous operation
Memory: Non volatile with
automatic power failure restart
Non volatile with
automatic power failure restart
Non volatile with
automatic power failure restart
Non volatile with
automatic power failure restart
Program modes: • Constant speed and temperature
• Timed shaking
• Programmable multi-steps
• RS-232 control
• Constant speed and temperature
• Timed shaking
• Programmable multi-steps
• RS-232 control
• Constant speed and temperature
• Timed shaking
• Programmable multi-steps
• RS-232 control
• Constant speed and temperature
• Timed shaking
• Programmable multi-steps
• RS-232 control
Multi-step programming
Stored programs
Steps per program

4
15

4
15

4
15

4
15
Dimensions (W x D x H): 135 x 87.3 x 66 cm
(open door requires
additional 53 cm height)
135 x 87.3 x 66 cm
(open door requires
additional 53 cm height)
115.6 x 81.3 x 103.1 cm
(161 cm in depth with door open)
115.6 x 81.3 x 103.1 cm
(161 cm depth with door open)
Net weight: 238 kg 257 kg 202 kg 216 kg
