Product Description.
This type of CO2 meter is especially helpful to those working in the hospitality industry of where a large office/factory is concerned. This hand held instrument is ideal for measuring CO2 levels and monitoring indoor air quality conditions. It is very useful when checking performance of HVAC systems. It is also a useful CO2 meter when it comes to IAQ surveying and the checking of other regulations. It comes with a two year warranty and batteries so you can start measuring CO2 levels as soon as it arrives.
CO2 meter details
• Allows installers and engineers to comply with the BS 8494 standard for detecting and measuring carbon dioxide
• Impact-resistant ABS case with permanently attached probe
• 2 channel infrared CO² sensor for stable, accurate readings
• Large easy-to-read 2-line LCD display with function indicators
• Keypad with easy operation for readings
• Real-time measuring and display of CO² in parts per million (PPM)
• Long-term monitoring with maximum and mean calculations
• Auto Power Off after 10 min’s
• Low Battery indicator
• 2 year warranty
• Optional infrared printer allows printing of data with time & date
• Supplied with battery
Conforms to BS 8494 for detecting and measuring carbon dioxide
Technical Information
| Range |
0 to 9999 ppm |
| Resolution |
1 ppm CO² |
| Accuracy (± 1 digit) |
±(50ppm CO² ± 2% of mv) for 0 to 5000ppm
±(100ppm CO² ± 3% of mv) for 5001 to 9999ppm |
| Sensor Type |
2 channel infrared |
| Operating Temp |
0 to +50°C |
| Power |
9V PP3 Alkaline Battery (ALR-61) |
| Dimensions |
190 x 57 x 42mm |
| Weight |
300g |
|
Part Code:
|
Description
|
List Price
|
| AQM-535 |
Carbon dioxide monitor ATP to 9999ppm (0-1%) |
£635 |
Thermohygrometers - ATP
|
|
Compact and easy-to-use dual channel data logger for efficient monitoring of temperature & humidity values. Ideal for monitoring food, medical product storage, warehousing & distribution, containers, industrial processes, laboratory environments and museums.
• -40°C to 70°C x 0.1°
0 to 100%RH x 0.1%
• USB interface for set up & data transfer to PC
• Set up allows the user to select logging rate, start time and alarm limits
• User selectable logging intervals – min 10 sec’s, max 24 hours
• Logs up to 16,000 temperature & 16, 000 humidity readings
• Green LED for Logging Conformation
• 2 programmable Alarm thresholds (Hi & Lo)
• Red LED if Alarm limits exceeded
• Large 25mm LCD display for time and date, current readings, Min/Max values and logger full indicator
• Low Battery indication
• Impact-resistant ABS and rubber moulded case, wall holder & padlock
• Analysis software with graphical display of data – total readings, zoom facility to individual readings and visual indication of Alarm levels
• Supplied with wall holder, padlock, software, USB cable & battery
Technical Information
| |
Temperature |
Humidity |
| Range |
-40° to 70°C |
0% to 100% RH |
| Resolution |
0.1°C |
0.1% RH |
| Accuracy |
±2°C (-40 to -10°C) |
±5%RH (0 to 20% & 80 to 100%) |
| ±1°C (-10 to +40°C) |
±3.5%RH (20 to 40% & 60 to 80%) |
| ±2°C (+40 to +70°C) |
±3%RH (40 to 60%) |
| Power |
1 x 3.6V ½AA Lithium Battery |
| Min 3 Months At 10 Sec Logging Rate |
| Dimensions |
98 x 25 x 22mm |
| Weight |
115g |
Details of any accessories and ancillary equipment can be found in the datasheet.
|
Part Code:
|
Description
|
List Price
|
| DT-172 |
Thermo-hygrometer ATP humidity measuring range 0 to 100% RH temperature measuring range -40°C to 70°C |
£99 |
|
Thermohygrometers - ATP
|
|
A combined humidity & air temperature meter and K-Type thermometer. A precision capacitance humidity sensor and temperature thermistor sensor offers fast response times. Suitable for industry, monitoring clean rooms, laboratories and air conditioning installations.
• 0°C to 40°C x 0.1°, 0 to 100%RH x 0.1%
• Displays temperature in °C or °F
• 43mm LCD dual display with backlight
• Connected probe with 1.8m coiled cable
• Probe mounting clip allows single-handed use
• Data Hold freezes displayed measurements
• Max Hold displays the highest recorded measurement
• Low Battery indication
• Auto Power Off after 10 min’s
• Impact-resistant ABS case with rubber boot and flip-out stand for freestanding use
• Supplied with carry bag & strap, rubber boot, K-Type flexible wire probe and battery
Technical Information
| |
Temperature |
Humidity |
K-type |
| Range |
0° to 40°C |
0% to 100% RH |
-20° to 1000°C |
| Resolution |
0.1°C |
0.1% RH |
0.1° <200, 1°> |
| Accuracy |
±1°C |
±3.5%RH |
±3% of reading +4°C |
| Power |
1 x 9V PP3 Alkaline Battery |
| Dimensions |
155 x 72 x 35mm |
| Weight |
210g |
Details of any accessories and ancillary equipment can be found in the datasheet.
|
Part Code:
|
Description
|
List Price
|
| HT-615 |
Thermo-hygrometer and K type thermometer ATP humidity measuring range 0 to 100% RH temperature measuring range 0°C to 40°C |
£65 |
Thermohygrometers - ATP
|
|
A combined temperature and humidity meter ideal for environmental monitoring of clean rooms, laboratories, computer rooms and storage rooms. The clear LCD displays are easy to read at a distance.
• -10° to 50°C x 0.1°
• 25% to 98%RH x 1%
• Displays temperature in °C or °F
• Simultaneous display of humidity and temperature
• Two 15mm LCD displays with large digits and function indicators
• Min/Max Memory for both temperature and humidity
• Separate Min/Max Reset for independent reset of temperature and humidity
• Impact-resistant ABS case with a flip out desk stand for free standing applications and key-way for wall mounting
• Supplied with battery
Technical Information
| |
Temperature |
Humidity |
| Range |
-10° to 50°C |
25% to 98% RH |
| Resolution |
0.1°C |
1% RH |
| Accuracy |
±1°C |
±5%RH |
| Power |
1 x 1.5V AA Alkaline Battery |
| Dimensions |
135 x 75 x 18mm |
| Weight |
96g |
Details of any accessories and ancillary equipment can be found in the datasheet.
|
Part Code:
|
Description
|
List Price
|
| HT-972B |
Thermo-hygrometer ATP memory humidity measuring range 25 to 98% RH temperature measuring range -10°C to 50°C |
£15 |
Thermohygrometers - ATP
|
|

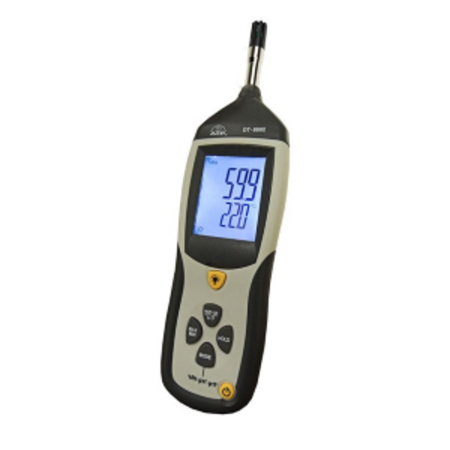

This Precision Thermo-Hygrometer is a compact, easy-to-use, robust instrument for fast, accurate and repeatable measurements of absolute and relative humidity, air temperature, dew point & wet bulb temperatures. It is ideal for single-handed operation when taking measurements in air stream. Suitable for monitoring air conditioning and heating system ducts, controlled environments, storage areas and other critical areas.
• -30°C to 100°C x 0.1°, 0 to 100%RH x 0.1
• Displays temperature in °C or °F
• Displays humidity as %RH, absolute as grams per cubic meter(g/m³) or grams per cubic foot(gr/ft³)
• Wet Bulb & Dew Point measurements
• Simultaneous display of humidity and temperature readings
• 56mm LCD display with backlight
• Data Hold freezes displayed measurements
• Min/Max Memory for both temperature and humidity
• Low Battery indication
• Auto Off after 10 minutes – can be user disabled
• Impact-resistant ABS case with rubber moulded grip and tripod mount bush
• Supplied with briefcase carry case & battery
Technical Information
| |
Temperature |
Humidity |
Absolute |
| Range |
-30° to 100°C |
0% to 100% RH |
0 to 500g/m³ |
| Resolution |
0.1°C |
0.1% RH |
|
| Accuracy |
±1°C (-20° to 60°C) |
±2%RH (40% t0 60%RH) |
|
| ±1.5°C Others |
±3% Others |
|
| Power |
1 x 9V PP3 Alkaline Battery |
| Dimensions |
300 x 75 x 50mm |
| Weight |
400g |
Details of any accessories and ancillary equipment can be found in the datasheet.
|
Part Code:
|
Description
|
List Price
|
| HT-8892 |
Thermo-hygrometer ATP precision humidity measuring range 0 to 100% RH temperature range -30°C to 100°C |
£145 |
Thermohygrometers - ATP
|
|

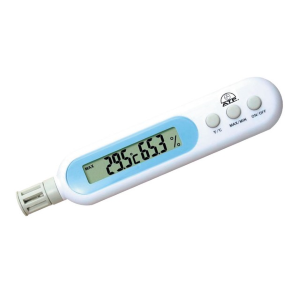

Pen-type temperature and humidity meter with an LCD display which simultaneously displays Temperature and %RH. The sensors are located in a protective grille, making the instrument ideally suited for taking measurements in air stream.
• 0°C to 50°C x 0.1°, 20% to 100%RH
• Displays temperature in °C or °F
• Simultaneous display of humidity and temperature
• Large 58 x 12mm LCD display
• Min/Max Memory for both temperature and humidity
• Impact-resistant ABS case with integrated sensors and protective grille
• Sensor grille opens and closes to protect the sensors when not in use
• Supplied with battery and hard storage case
Technical Information
| |
Temperature |
Humidity |
| Range |
0° to 50°C |
20% to 100% RH |
| Resolution |
0.1°C |
0.1% RH |
| Accuracy |
±1°C |
±3%RH (30% t0 70%) ±5% others |
| Power |
1 x 3V Lithium Button Cell Battery |
| Dimensions |
165 x 35 x 18mm |
| Weight |
55g |
Details of any accessories and ancillary equipment can be found in the datasheet.
|
Part Code:
|
Description
|
List Price
|
| HT-9237 |
Thermo-hygrometer ATP pen type humidity measuring range 20 to 100% RH temperature measuring range 0°C to 50°C |
£28
|
Thermohygrometers - ATP
|
|

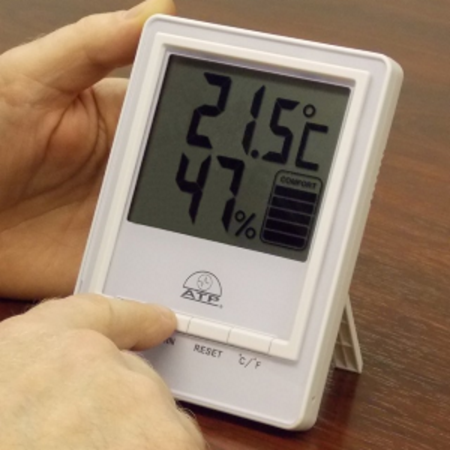

A combined temperature and humidity meter ideal for environmental monitoring of clean rooms, laboratories, computer rooms and storage rooms. The large LCD display is easy to read at a distance.
• -10° to 50°C x 0.1°
• 25% to 98%RH x 1%
• Displays temperature in °C or °F
• Simultaneous display of humidity and temperature
• 63 x 80mm large digit LCD display
• Min/Max Memory for both temperature and humidity
• Reset clears memory for both temperature and humidity
• Impact-resistant ABS case with a flip out desk stand for free standing applications and key-way for wall mounting
• Supplied with battery
Technical Information
| |
Temperature |
Humidity |
| Range |
-10° to 50°C |
25% to 98% RH |
| Resolution |
0.1°C |
1% RH |
| Accuracy |
±1°C |
±5%RH |
| Power |
1 x 1.5V AA Alkaline Battery |
| Dimensions |
138 x 95 x 20mm |
| Weight |
143g |
Details of any accessories and ancillary equipment can be found in the datasheet.
|
Part Code:
|
Description
|
List Price
|
| HT-986HI |
Thermo-hygrometer ATP jumbo humidity measuring range 25 to 98% RH temperature measuring range -10°C to 50°C |
£16 |
Thermohygrometers - ATP
|
|

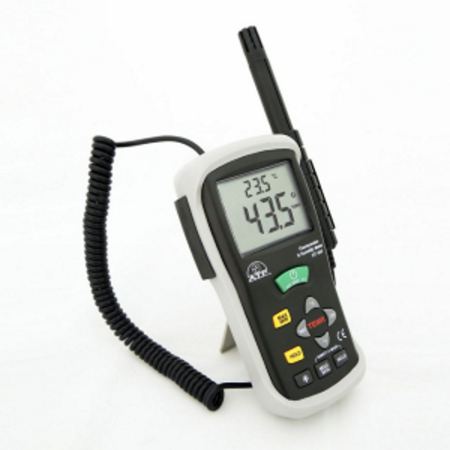

A high accuracy combined humidity & air temperature meter with wet bulb and dewpoint temperatures. Ideal for a wide range of industrial and laboratory applications. Suitable for single handed operation.
• -30°C to 100°C x 0.1°, 0 to 100%RH x 0.1
• Displays temperature in °C or °F
• Dew Point & Wet Bulb temperatures displayed at the touch of a button
• 43mm LCD dual display with backlight
• Connected probe with 1.8m coiled cable
• Probe mounting clip allows single-handed use
• Data Hold freezes displayed measurements
• Min/Max Memory for both temperature and humidity
• Low Battery indication
• Auto Power Off – adjustable from 1 to 120 minutes, can be user disabled
• Impact-resistant ABS case with rubber boot and flip-out desk stand
• Supplied with carry bag & strap, rubber boot and battery
Technical Information
| |
Temperature |
Humidity |
Dewpoint |
Wet Bulb |
| Range |
-30° to 100°C |
0% to 100% RH |
-30° to 100°C |
0° to 80°C |
| Resolution |
0.1°C |
0.1% RH |
0.1°C |
0.1°C |
| Accuracy |
±0.5°C |
±2%RH |
±1.0°C |
±1°C |
| Power |
1 x 9V PP3 Alkaline Battery |
| Dimensions |
155 x 72 x 35mm |
| Weight |
210g |
Details of any accessories and ancillary equipment can be found in the datasheet.
|
Part Code:
|
Description
|
List Price
|
| HTD-625 |
Thermo-hygrometer ATP humidity measuring ranges 0 to 100% RH temperature measuring range 30°C to 100°C |
£95 |
Thermo-hygrometer ATP memory and alarm - calibration certificate sold separately if required
These tried-and-tested thermo-hygrometers monitor the atmosphere every 18 seconds to ensure safe, dry conditions. With a world-renowned Testo™ humidity sensor built into the water-resistant housing, they will provide accurate measurements for years.
Features:
· Displays temperature in ºC or ºF
· Displays humidity in %RH
· Large, clear screen
· Dew point calculation
· Min/max value display with reset
· Monitors upper & lower limits with visual alarm (AHT-608H2)
· Integrated patented Testo™ humidity sensor
· Hang from wall or stand upright on a table
· Low battery indicator
· 2 year warranty
Technical Specifications
| |
AHT-608H1 |
AHT-608H2 |
| Temperature Range |
0 to 50ºC / 32 to 122ºF |
-10 to 70ºC / 32 to 122ºF |
| Humidity Range |
+10 to +95% RH |
+2 to +98% RH |
| Dewpoint Parameters |
-20 to 50ºC |
-40 to 70ºC |
| Resolution |
0.1ºC/F
(0 to +50°C/32 to122°F)
0.1% RH |
0.1ºC/F
(-10 to +70°C/14 to160°F)
0.1% RH |
Accuracy
(± 1 digit) |
±0.5ºC/1ºF at 25°C/77°F
±3% RH(+10 to +95% RH) |
±0.5ºC/1ºF at 25°C/77°F
±2% RH(+2 to +96% RH) |
| Power |
9V battery |
| Dimensions |
120 x 89 x 40mm |
| Weight |
168g |
|
|
|
|
|
|
|
