Part Number	Description	List Price	Offer Price
8505	Grinding container Spex 99.5% alumina ceramic lined, steel lid and aluminum dish are lined with alumina ceramic plates, puck is solid alumina ceramic. 6.3 inch diameter x 3.2 in. high, 11 lbs, 15.2cm x 8cm, 5kg, nominal volume 170mL, recommended grinding load 15-40mL, includes puck, dish with O-ring gasket, and lid	£162.00	£162.00
8501	Grinding container Spex hardened steel with puck, dish, and lid made of 52-100 hardened tool steel, 6.9 inch diameter x 2.9 inch high, 17.5 lbs, 17.5cm x 7.5cm, 8kg, nominal volume 340mL, recommended grinding load 20-50mL, includes puck, ring, dish with O-ring gasket, and lid	£2,011.00	£1,927.00
8521	Grinding container Spex large, hardened steelwith dish, ring, puck, and lid, all made of 52-100 hardened tool steel. 8 inch diameter x 3.3 inch high, 29 lbs, 20.3cm x 8.2cm, 13kg, nominal volume 650mL, recommended load 30-100mL, includes puck, ring, dish with O-ring gasket and lid	£2,697.00	£2,581.00
8506	Grinding container Spex Mg-stabilized zirconia ceramic lined, steel lid and aluminum dish are lined with zirconia ceramic, puck is solid zirconia ceramic, 6 inch diameter x 3.2 inch high, 13 lbs, 15.2cm x 8cm, 6kg, nominal volume 170mL, recommended grinding load 15-40mL, includes puck, dish with O-ring gasket, and lid	£5,657.00	£5,407.00
8508	Grinding container Spex small tungsten carbide lined, puck, dish and lid all made of solid tungsten carbide, dish has reinforcing aluminum band. 3.6 inch diameter x 2.3 inch high, 7.7 lbs, 9.2cm x 5.9cm, 3.5kg, nominal volume 80mL, recommended grinding load 2-20mL, includes puck, dish, and lid, must be used either one or three at a time with 8507R	£4,125.00	£3,946.00
8507	Grinding container Spex small, hardened steel with puck, dish and lid made of 52-100 hardened steel, 3.6 inch diameter x 2.3 inch high, 4 lbs, 9cm x 5.4cm, 1.9kg, nominal volume 90mL, recommended grinding load 2-20mL. Includes puck, dish with gasket, and lid, must be used either one or three at a time with 8507R rack	£780.00	£752.00
8504	Grinding container Spex tungsten carbide lined, carbide, dish and lid are steel shells with tungsten carbide inserts, puck and ring are solid tungsten carbide. 6.9 inch, diameter x 3.2 inch high, 29 lbs, 17.5cm x 8cm, 12.5kg, nominal volume 240mL, recommended grinding load 20-50mL, includes puck, ring, dish with O-ring gasket, and lid	£10,389.00	£9,936.00

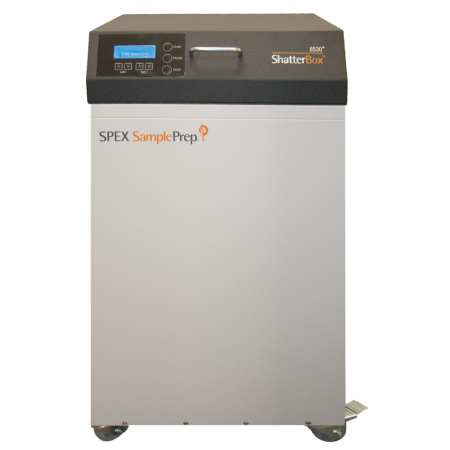

Retsch 8530

This product has been discontinued. Please contact us for the closest replacement - Mills Disc Spex 8530 fixed speed, final fineness <50µm, material feed size 5mm, zero storable SOPs, suitable sample materials: brittle, grinding set not included

Variable or fixed speed :

Fixed

Final fineness:

<50

Material feed size:

Total number of storable SOPs :

Suitable sample materials :

Brittle

Grinding sets included :

Download Product Brochure
