Autoclaves - Astell Scientific - Compact Autofill

To obtain best pricing, request a quotation for the Astell Scientific Compact Autofill


Catalogue no.


Warranty (months) ? Brochure ? Average delivery time (weeks) ? List price

Offer price ? Quantity

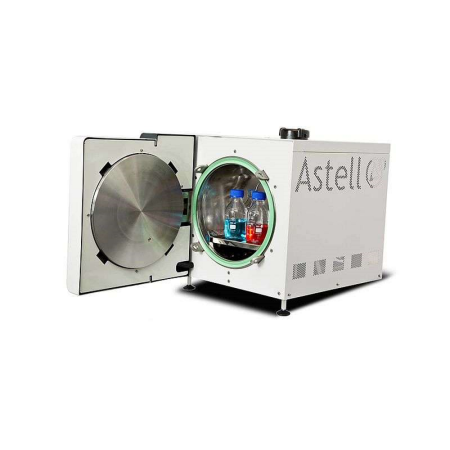

AMB220 Autoclave Astell Scientific Compact Autofill user programmable, suitable for liquids, no vacuum air removal, autofill, 33l capacity, usable depth 360mm, usable diameter 350mm, data logger included (replaces AMB220BT) 12 months Astell-Scientific_Autoclaves_AMB4_AMB2.pdf ? £6886.23 £6041.67

Environmental Performance

Location of Manufacturer UK
Max. Power Draw 2.990kW

Additional information

Type Benchtop
Capacity 33 l
Suitable for liquids? Yes
User program-mable Yes
Loading Front
Autofill Yes
Vacuum air removal No
Number of chambers 1
Heat source required No
Chamber shape Round
Usable width 0 mm
Usable height 0 mm
Usable depth 360 mm
Usable diameter 350 mm
Heating method Electric (in chamber)
Max run temperature 138 °C
Automatic door opening No
Sliding door No
Temperature and pressure gauges included Yes
Data output Data logger
Disinfection type Steam
Suitable for laboratory use Yes
Suitable for dental use No
Suitable for medical use Yes

No manual is currently available for this item.

Click here to request more details.


AAP007 Assisted cooling Astell Scientific - Popular accessory

? £230.78 £204.15

AAN308 Bottle Astell Scientific condensate

? £201.19 £178.63

AAN346 Discard container Astell Scientific for all Astell bench top models

? £339.78 £298.17

AAR122 Ethernet interface Astell Scientific

? £221.44 £196.10

AAR130 Integral data printer Astell Scientific

? £882.20 £768.39

IQ/OQ001 IQ/OQ documents Astell Scientific

? £892.29 £777.54

AAR014 Load sensed process timing Astell Scientific

? £368.00 £322.86

AAR120 RS232 interface Astell Scientific

? £221.44 £196.10

AAN025 Shelf rack Astell Scientific 5 position, for the AMB420/AMB220BT, 2 shelves supplied

? £404.98 £354.04

AAN022 Spare shelf for AAN020 AMB4/220

? £223.00 £197.44
