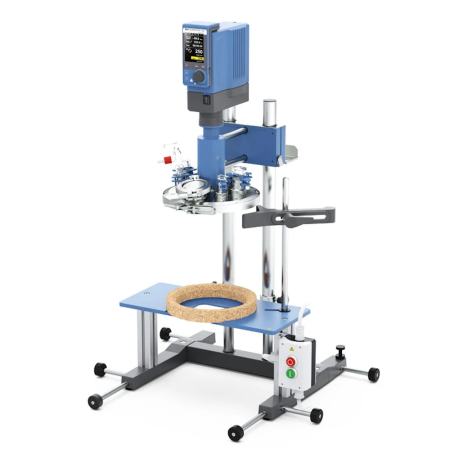

LR-5.ST the Versatile Laboratory reactor

Anchor stirrer IKA LR 5000.10 with PEEK scrapers for use in the LR-5.ST laboratory reactor

Anchor stirrer IKA LR 5000.11 for use in the LR-5.ST laboratory reactor

Cable IKA PC 1.1 Cable, 3 meter, 2 RS 232/9/M/F

Conversion kit IKA LR-2.5.ST to convert the stand system of the 2 liter laboratory reactor (LR-2.ST) to the 5 liter version (LR-5.ST). This conversion kit is required to use both reactor sizes of the laboratory reactor (2 liter and 5 liter) with one stand system.

Cooling and heating circulator IKA CBC 5 basic, with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C

Cooling and heating circulator IKA CBC 5 control, with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C

Cooling and heating circulator IKA HRC 2 control, working temperature range from -30°C to 100°C and a powerful and infinitely variable pressure and suction pump

Disperser IKA T 25 digital LR for volumes ranging from 1 – 2,000 ml (H2O) with digital speed display. Its wide speed range of 600 – 25,000 rpm allows for work with high circumferential speeds.

Dispersing tool IKA S 25 KD - LR - 30 F specially developed to use with the 5-liter laboratory reactor LR-5.ST

Dispersing tool IKA S 25 KD - LR - 30 G specially developed to use with the the 5-liter laboratory reactor LR-5.ST

Electrode IKA SY pH 325, Low maintenance pH combination electrode with glass shaft, 2-hole diaphragms, screw plug head, L: 325 mm, D: 12 mm, 0 - 14 pH, 0 - 130 °C, accompanied with cable to connect to Almemo measuring instrument, e.g., Almemo 2490, suitable for reactor vessels with volumes of 100 ml (SY 100 and SY 100 D), 250 ml (SY 250 and SY 250 D), 500 ml (SY 500 and SY 500 D) and 1000 ml (SY 1000 and SY 1000 D)

Ethernet-serial converter IKA ETH SER 16, 16 laboratory devices can be controlled or read out via ethernet. The ports support RS 232/ 422/ 485

Ethernet-serial converter IKA ETH SER 8, eight laboratory devices can be controlled or read out via ethernet. The ports support RS 232/ 422/ 485

Flow breaker IKA LR 5000.20, for use in the LR-5.ST laboratory reactor

Funnel IKA LR 5000.92 for use in the LR-5.ST laboratory reactor

Heating bath IKA HBC 5 basic stainless steel bath with a volume of 5 – 7 liters

Heating bath IKA HBC 5 control stainless steel bath with a volume of 5 – 7 liters

Heating Fluid IKA HF.Si.20.200.50, based on Silicon oil

Heating Fluid IKA HF.Si.20.250.50A, based on Silicon oil

Homogeniser IKA T 25 easy clean control, dispering, 500 watts, volume range 1 to 2000 milliitres, maximum speed 25000 rpm, with continous temperature measurement, programmable, probe and stand not included, suitable for life science, food safety, food and beverage R&D, pharmaceutical, cosmetic, liquid industrial and environment and water treatment applications. Accessories are interchangeable between manufacturers range, displays real time RPM, standard probe warranty 24 months.

Homogeniser IKA T 25 easy clean digital, dispering, 500 watts, volume range 1 to 2000 millilitres, maximum speed 25000 rpm, no continous temperature measurement, programmable, probe and stand not included, suitable for life science, food safety, food and beverage R&D, pharmaceutical, cosmetic, liquid industrial and environment and water treatment applications. Accessories are interchangeable between manufacturers range, displays real time RPM, standard probe warranty 24 months.

Hose adapter IKA LT 5.27, for connection of DN 12 tempering hoses. Note: Please order the coupling counterpart LT 5.25 on reactor side separately

Hose set IKA DN 12 (2 x 1.5 m), viton (FKM), reinforced with stainless wire mesh, chemical resistance: water; silicon oils; ethylene glycol; mineral oil; ethanol

Lock coupling IKA LT 5.25 200C, for connection at side of the reactor. Note: Please order the coupling counterpart LT 5.26 200C or LT 5.27 to connect the tempering hoses separately.

Lock coupling IKA LT 5.25 M16, for connection at side of the reactor. Note: Please order the coupling counterpart LT 5.26 or LT 5.27 to connect the tempering hoses separately.

Lock coupling IKA LT 5.26 200C, for connecting tempering hoses with M 16x1 screw nut connector (e.g. LT 5.30 / LT 5.31 / LT 5.32 / H.FKM.12) Note: Please order the coupling counterpart LT 5.25 200C on reactor side separately.

Lock coupling IKA LT 5.26, for connecting tempering hoses with M 16x1 screw nut connector. (e.g. LT 5.30 / LT 5.31 / LT 5.32 / H.FKM.12) Note: Please order the coupling counterpart LT 5.25 M 16 on reactor side separately

Membrane vacuum pump IKA MVP 10 basic, for dry, oil-free applications

Membrane vacuum pump IKA VACSTAR digital

Pressure control valve IKA LT 5.28

Propeller stirrer IKA LR 5000.12, for use in the LR-5.ST laboratory reactor. The propeller stirrer is particularly suitable for stirring low-viscosity or aqueous materials

Reactor vessel IKA LR 5000.1, double-walled glass reactor vessel for use with the LR-5.ST laboratory reactor, volume: 5.0 l

Reactor vessel IKA LR 5000.2, double-walled glass reactor vessel for use with the LR-5.ST laboratory reactor, volume: 5.0 l

Reactor vessel IKA LR 5000.3, double-walled glass reactor vessel for use with the LR-5.ST laboratory reactor, volume: 5.0 l

Reactor vessel IKA LR 5000.4, double-walled stainless steel reactor vessel with bottom discharge valve for use with the LR-5.ST laboratory reactor, volume: 5.0 l

Receptacle IKA LR 5000.65 to accommodate the pH electrode SY pH 325. For use in the LR-5.ST laboratory reactor.

Sensor receptacle IKA LR 2000.60, to accommodate the PT 100.30, PT 100.25, PT 1000.61 and H 68.55 temperature sensors with a diameter of 6 mm. Made of stainless steel with FFKM seals to be connected to the port in the reactor cover of the LR-2.ST instead of an NS 14/23 adapters using the M 24/1.5 thread

Shaft receptacle IKA LR 5000.40 to accommodate the S 25 KV and S 25 KD-LR Dispersing tools. For use in the LR-5.ST laboratory reactor. The receptacle is screwed into the reactor cover of the LR-5.ST instead of an NS 29/32 adapter via the M 36/1.5 thread.

Software IKA Labworldsoft 6 Pro

Splinter shield IKA LR-2.SP

Temperature measuring instrument IKA ALMEMO 2490-2 allows to connect up to two sensors with the special ALMEMO plugs for pH and/or Temperature measurements.

Temperature sensor IKA H 68.55, stainless steel, PT 1000 temperature sensor, made of stainless steel, for use with EUROSTAR, MINISTAR and MICROSTAR control overhead stirrer, suitable for highly viscous samples or in combination with LR 2000.60 receptacle at LR 2.ST

Temperature sensor IKA PT 100.30, stainless steel, length: 250 mm, max. temperature: 300 °C

Tempering hose IKA LT 5.32 1600 mm, 2 pcs

Tempering hose IKA LT 5.31 1200 mm, 2 pcs

Tempering hose IKA T 5.30 800 mm, 2 pcs

Tube set IKA H.PUR.12.AD Hose set DN 12 (2 x 1.5 m), incl. 4 hose clamps, DN 12 olives and M 16x1 lock nuts for connecting a double walled reactor vessel.

Universal Fluid IKA UF.Si.N30.150.10LV, based on silicion oil

Universal vacuum controller IKA VC 10 lite Speed-controlled, for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed.

Universal vacuum controller IKA VC 10 pro Valve-controlled, for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed.

USB-serial converter IKA USB SER 16, up to 16 laboratory devices with 9-pin RS 232 connection can be controlled or read out via a USB interface. The ports support RS 232

USB-serial converter IKA USB SER 4, up to 4 laboratory devices with 9-pin RS 232 connection can be controlled or read out via a USB interface. The ports support RS 232

USB-serial converter IKA USB SER 8, up to 8 laboratory devices with 9-pin RS 232 connection can be controlled or read out via a USB interface. The ports support RS 232

Vacuum pump IKA VACSTAR control diaphragm for use with chemicals, with inlet trap, no condenser, 2mbar ultimate vacuum, 22l/min flow rate, not ATEX compliant, no integral gas ballast valves, oil free (replaces part number 0020019067)

Vacuum pump IKA VACSTAR lite, diaphragm for universal use in dry and oil-free vacuum applications, chemically resistant, with inlet trap, no condenser supplied (VSE 1 emission condenser available as an accessory), 9mbar ultimate vacuum, 16.67l/min flow rate, not ATEX compliant, no integral gas ballast valves, oil free, suitable for rotary evaporators and filtration
