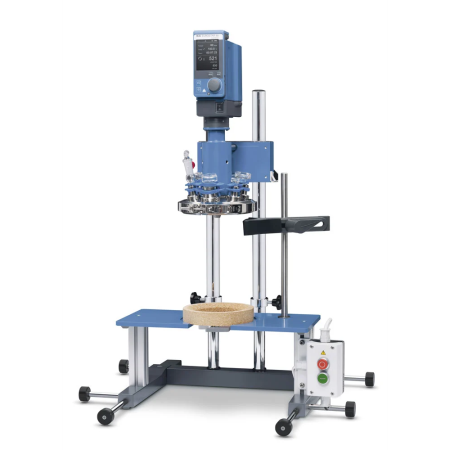

LR-2.ST the Compact Power

Anchor stirrer IKA LR 2000.10 with PEEK scrapers, for laboratory reactor LR-2.ST

Anchor stirrer IKA LR 2000.11 with flow borings, for laboratory reactor LR-2.ST

Cable IKA PC 1.1 Cable, 3 meter, 2 RS 232/9/M/F

Connector IKA LT 5.23 M 16, for direct connection of tempering hoses with M 16x1 screw nut connector (e.g. LT 5.30 / LT 5.31 / LT 5.32 / H.FKM.12) to the reactor vessels LR 2000.3 and LR 2000.4

Cooling and heating circulator IKA CBC 5 basic, with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C

Cooling and heating circulator IKA CBC 5 control, with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C

Cooling and heating circulator IKA HRC 2 control, working temperature range from -30°C to 100°C and a powerful and infinitely variable pressure and suction pump

Disperser IKA T 25 digital LR for volumes ranging from 1 – 2,000 ml (H2O) with digital speed display. Its wide speed range of 600 – 25,000 rpm allows for work with high circumferential speeds.

Dispersing element IKA S 25 KD - LR - 25 G, can be used in conjunction with vacuum conditions of up to 100 mbar

Dispersing tool IKA S 25 KD - LR - 25 F, can be used in conjunction with vacuum conditions of up to 100 mbar

Dispersing tool IKA S 25 KV - 25 F, suitable for dispersing instrument T 25 digital, working range: 100 - 2000 ml

Dispersing tool IKA S 25 KV - 25 G, suitable for dispersing instrument T 25 digital, working range: 50 - 2000 ml

Dissolver stirrer IKA S 25 KV - 26 LR, high speed stirrer, for rapid mixing, dissolving, and disagglomerating pigment agglomerates.

Electrode IKA LR 2000.64, low maintenance pH combination electrode with glass shaft, 2-hole diaphragms, screw plug head, L: 225 mm, D: 12 mm, 0 .... 14 pH, 0 .... 130°C, accompanied with cable to connect to Almemo measuring instrument, e.g., Almemo 2490

Electrode IKA LR 2000.65 Receptacle for Ph, made of stainless steel with two FFKM seals to be connected to the port in the reactor cover instead of an NS 29/32 adapters using the M 36/1.5 thread.

Ethernet-serial converter IKA ETH SER 16, 16 laboratory devices can be controlled or read out via ethernet. The ports support RS 232/ 422/ 485

Ethernet-serial converter IKA ETH SER 8, eight laboratory devices can be controlled or read out via ethernet. The ports support RS 232/ 422/ 485

Flow breaker IKA LR 2000.20 for the LR-2.ST reactor systems. For fixing in a NS 29/32 ground joint

Heating bath IKA HBC 5 basic stainless steel bath with a volume of 5 – 7 liters

Heating bath IKA HBC 5 control stainless steel bath with a volume of 5 – 7 liters

Heating bath IKA HBR 4 - LR control, working bath volume: approx. 4l

Heating bath IKA HBR 4 control, useful volume: approx. 4 l

Heating Fluid IKA HF.Si.20.200.50, based on Silicon oil

Heating Fluid IKA HF.Si.20.250.50A, based on Silicon oil

Homogeniser IKA T 25 easy clean control, dispering, 500 watts, volume range 1 to 2000 milliitres, maximum speed 25000 rpm, with continous temperature measurement, programmable, probe and stand not included, suitable for life science, food safety, food and beverage R&D, pharmaceutical, cosmetic, liquid industrial and environment and water treatment applications. Accessories are interchangeable between manufacturers range, displays real time RPM, standard probe warranty 24 months.

Homogeniser IKA T 25 easy clean digital, dispering, 500 watts, volume range 1 to 2000 millilitres, maximum speed 25000 rpm, no continous temperature measurement, programmable, probe and stand not included, suitable for life science, food safety, food and beverage R&D, pharmaceutical, cosmetic, liquid industrial and environment and water treatment applications. Accessories are interchangeable between manufacturers range, displays real time RPM, standard probe warranty 24 months.

Hose adapter IKA LT 5.27, for connection of DN 12 tempering hoses. Note: Please order the coupling counterpart LT 5.25 on reactor side separately

Hose set IKA DN 12 (2 x 1.5 m), viton (FKM), reinforced with stainless wire mesh, chemical resistance: water; silicon oils; ethylene glycol; mineral oil; ethanol

Hose set IKA H.FKM.8 Tube, DN 8 (2 x 1.5 m), incl. 4 hose clamps, material: Viton (FKM), reinforced with stainless wire mesh, temperature range: -30 - 180 °C

Lock coupling IKA LT 5.25 200C, for connection at side of the reactor. Note: Please order the coupling counterpart LT 5.26 200C or LT 5.27 to connect the tempering hoses separately.

Lock coupling IKA LT 5.25 M16, for connection at side of the reactor. Note: Please order the coupling counterpart LT 5.26 or LT 5.27 to connect the tempering hoses separately.

Lock coupling IKA LT 5.26 200C, for connecting tempering hoses with M 16x1 screw nut connector (e.g. LT 5.30 / LT 5.31 / LT 5.32 / H.FKM.12) Note: Please order the coupling counterpart LT 5.25 200C on reactor side separately.

Lock coupling IKA LT 5.26, for connecting tempering hoses with M 16x1 screw nut connector. (e.g. LT 5.30 / LT 5.31 / LT 5.32 / H.FKM.12) Note: Please order the coupling counterpart LT 5.25 M 16 on reactor side separately

Membrane vacuum pump IKA MVP 10 basic, for dry, oil-free applications

Membrane vacuum pump IKA VACSTAR digital

Pressure control valve IKA LT 5.28

Reactor vessel IKA LR 2.1 Single-walled reactor vessel for the laboratory reactors LR-2.ST. volume: 2.0 l, material in contact with medium: Borosilicatglass 3.3

Reactor vessel IKA LR 2000.1, double-walled reactor vessel including accessories for the laboratory reactors LR-2.ST. volume: 2.0 l, material in contact with medium: Borosilicatglass 3.3, including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.

Reactor vessel IKA LR 2000.2, double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST, volume: 2.0 l, material in contact with medium: Borosilicatglass 3.3, PTFE, including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.

Reactor vessel IKA LR 2000.3, double-walled reactor vessel including accessories for the laboratory reactors LR-2.ST, volume: 2.0 l, material in contact with medium: stainless steel 1.4571, including quick connection adapters with DN 8 Olive for connection of temperature hose

Reactor vessel IKA LR 2000.4, double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST, volume: 2.0 l, material in contact with medium: stainless steel 1.4571, PTFE, including quick connection adapters with DN 8 Olive for connection of temperature hoses.

Sensor receptacle IKA LR 2000.60, to accommodate the PT 100.30, PT 100.25, PT 1000.61 and H 68.55 temperature sensors with a diameter of 6 mm. Made of stainless steel with FFKM seals to be connected to the port in the reactor cover of the LR-2.ST instead of an NS 14/23 adapters using the M 24/1.5 thread

Shaft receptacle IKA LR 2000.40, to accommodate the S 25 KV and S 25 KD-LR Dispersing tools. Made of stainless steel with FFKM seals to be connected to the port in the reactor cover of the LR-2.ST instead of an NS 29/32 adapters using the M 36/1.5 thread.

Software IKA Labworldsoft 6 Pro

Splinter shield IKA LR-2.SP

Temperature measuring instrument IKA ALMEMO 2490-2 allows to connect up to two sensors with the special ALMEMO plugs for pH and/or Temperature measurements.

Temperature sensor IKA H 68.55, stainless steel, PT 1000 temperature sensor, made of stainless steel, for use with EUROSTAR, MINISTAR and MICROSTAR control overhead stirrer, suitable for highly viscous samples or in combination with LR 2000.60 receptacle at LR 2.ST

Temperature sensor IKA PT 100.30, stainless steel, length: 250 mm, max. temperature: 300 °C

Temperature sensor IKA PT 1000.61, diameter 6 mm

Tempering hose IKA LT 5.32 1600 mm, 2 pcs

Tempering hose IKA LT 5.31 1200 mm, 2 pcs

Tempering hose IKA T 5.30 800 mm, 2 pcs

Tube set IKA H.PUR.12.AD Hose set DN 12 (2 x 1.5 m), incl. 4 hose clamps, DN 12 olives and M 16x1 lock nuts for connecting a double walled reactor vessel.

Universal Fluid IKA UF.Si.N30.150.10LV, based on silicion oil

Universal vacuum controller IKA VC 10 lite Speed-controlled, for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed.

Universal vacuum controller IKA VC 10 pro Valve-controlled, for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed.

USB-serial converter IKA USB SER 16, up to 16 laboratory devices with 9-pin RS 232 connection can be controlled or read out via a USB interface. The ports support RS 232

USB-serial converter IKA USB SER 4, up to 4 laboratory devices with 9-pin RS 232 connection can be controlled or read out via a USB interface. The ports support RS 232

USB-serial converter IKA USB SER 8, up to 8 laboratory devices with 9-pin RS 232 connection can be controlled or read out via a USB interface. The ports support RS 232

Vacuum pump IKA VACSTAR control diaphragm for use with chemicals, with inlet trap, no condenser, 2mbar ultimate vacuum, 22l/min flow rate, not ATEX compliant, no integral gas ballast valves, oil free (replaces part number 0020019067)

Vacuum pump IKA VACSTAR lite, diaphragm for universal use in dry and oil-free vacuum applications, chemically resistant, with inlet trap, no condenser supplied (VSE 1 emission condenser available as an accessory), 9mbar ultimate vacuum, 16.67l/min flow rate, not ATEX compliant, no integral gas ballast valves, oil free, suitable for rotary evaporators and filtration
