OBN 158

OBN158

10182544
1986.00

Overview

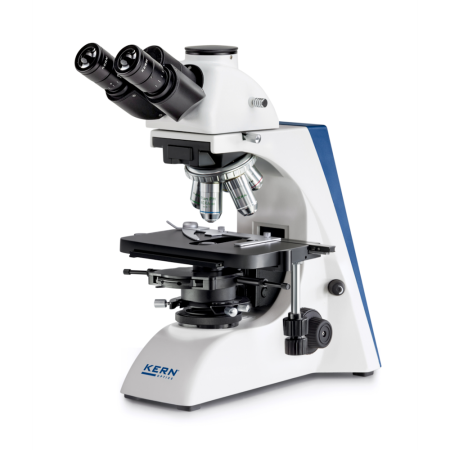

Microscope Kern and Sohn OBN 158 phase-contrast microscope, standard, trinocular head type, maximum magnification 1000X, not capable of fluorescence, halogen light source, camera not included, mechanical stage included, standard objectives 4x, PH 10x, PH 20x, PH 4x, PH 100x, suitable for education, laboratories, life sciences, cell culture, industry, veterinary, water analysis and breweries

£1986.00

Was: £2488.00 Saving: £502.00

Free Standard Delivery to Mainland UK

Estimated 2 Weeks

Manufactured in Europe

3 Year Warranty

Standard warranty covers parts and labour for material and manufacturing defects. Extended warranties are available on request.

Download Product Brochure

Part Number Description List Price Offer Price
100W HBO Fluorescence unit (B / G) - including centering objective OBB-A1153

100W HBO Fluorescence unit (B / G) - including centering objective

£2,974.00

£2,374.00

C-Mount camera adapter Kern - 1,0x; for microscope cam OBB-A1514

C-Mount camera adapter Kern - 1,0x; for microscope cam

£163.00

£138.00

C-Mount camera adapter Kern and Sohn 0.60x (focus adjustable) OBB-A1136

C-Mount camera adapter Kern and Sohn 0.60x (focus adjustable)

£201.00

£168.00

Camera for compound microscopes 20MP ODC841

Camera for compound microscopes 20MP

£1,023.00

£817.00

Cleaning set for microscopes - Seven-part OCS901

Cleaning set for microscopes - Seven-part

£91.00

£84.00

Condenser Kern and Sohn Abbe N.A. 1,25 center-adjustable (aperture diaphragm) OBB-A1102

Condenser Kern and Sohn Abbe N.A. 1,25 center-adjustable (aperture diaphragm)

£135.00

£120.00

Condenser Kern and Sohn swing-out, N.A. 0,9 / 0,13 center-adjustable (aperture diaphragm) OBB-A1104

Condenser Kern and Sohn swing-out, N.A. 0,9 / 0,13 center-adjustable (aperture diaphragm)

£256.00

£213.00

Darkfield attachment (4x-40x) OBB-A1150

Darkfield attachment (4x-40x)

£135.00

£120.00

Darkfield condenser - for series OBN-1, OKO-1 OBB-A1421

Darkfield condenser - for series OBN-1, OKO-1

£299.00

£247.00

Darkfield condenser (Oil) OBB-A1538

Darkfield condenser (Oil)

£614.00

£497.00

Dust cover Kern and Sohn (600×650 mm) OBB-A1388

Dust cover Kern and Sohn (600×650 mm)

£90.00

£84.00

Eyepiece HWF 10 x / Ø 20mm OBB-A1617

Eyepiece HWF 10 x / Ø 20mm

£184.00

£154.00

Eyepiece Kern and Sohn WF 10x / 20.0 mm OBB-A1351

Eyepiece Kern and Sohn WF 10x / 20.0 mm

£135.00

£120.00

Eyepiece Kern and Sohn WF 16x / 13.0 mm OBB-A1354

Eyepiece Kern and Sohn WF 16x / 13.0 mm

£101.00

£94.00

Eyepiece WF 10x / Ø 20 mm - Pointer OBB-A1448

Eyepiece WF 10x / Ø 20 mm - Pointer

£131.00

£117.00

Filter blue Kern and Sohn OBB-A1170

Filter blue Kern and Sohn

£83.00

£79.00

Filter green Kern and Sohn - for OBF-1, OBL-1, OBN-1, OKN-1, OKO-1, OPN-1, OPO-1 OBB-A1188

Filter green Kern and Sohn - for OBF-1, OBL-1, OBN-1, OKN-1, OKO-1, OPN-1, OPO-1

£83.00

£79.00

Filter grey Kern and Sohn OBB-A1183

Filter grey Kern and Sohn

£83.00

£79.00

Filter Yellow Kern and Sohn - for OBF-1, OBL-1, OBN-1, OKN-1, OKO-1, OPN-1, OPO-1 OBB-A1165

Filter Yellow Kern and Sohn - for OBF-1, OBL-1, OBN-1, OKN-1, OKO-1, OPN-1, OPO-1

£83.00

£79.00

Fluorescence unit Kern and Sohn OBB-A1156

Fluorescence unit Kern and Sohn

£3,025.00

£2,415.00

Fluorescence unit Kern and Sohn OBB-A1155

Fluorescence unit Kern and Sohn

£4,235.00

£3,380.00

Microscope camera Kern & Sohn ODC 241 digital, for C-mount connection, 5Mpix, not cooled with software included ODC241

Microscope camera Kern & Sohn ODC 241 digital, for C-mount connection, 5Mpix, not cooled with software included

£835.00

£668.00

Microscope camera Kern & Sohn ODC 832 digital, for C-mount connection, 5.1Mpix, not cooled with software included ODC832

Microscope camera Kern & Sohn ODC 832 digital, for C-mount connection, 5.1Mpix, not cooled with software included

£529.00

£430.00

Microscope camera Kern & Sohn ODC 851 digital, for C-mount connection, 2Mpix, not cooled with software included ODC851

Microscope camera Kern & Sohn ODC 851 digital, for C-mount connection, 2Mpix, not cooled with software included

£750.00

£599.00

Objective Kern and Sohn Infinity Plan 100x - water immersion; spring OBB-A1437

Objective Kern and Sohn Infinity Plan 100x - water immersion; spring

£469.00

£382.00

Objective Kern and Sohn Infinity Plan achromatic 20.0x/ 0.40 OBB-A1250

Objective Kern and Sohn Infinity Plan achromatic 20.0x/ 0.40

£299.00

£247.00

Objective Kern and Sohn Infinity Plan achromatic 60.0x / 0.80 (spring) OBB-A1270

Objective Kern and Sohn Infinity Plan achromatic 60.0x / 0.80 (spring)

£384.00

£314.00

Objective Kern and Sohn infinity plan achromatic, #FEHLER#x / 1.30 (oil) (spring) OBB-A1240

Objective Kern and Sohn infinity plan achromatic, #FEHLER#x / 1.30 (oil) (spring)

£342.00

£280.00

Objective Kern and Sohn infinity plan achromatic, 10.0x / 0.30 OBB-A1243

Objective Kern and Sohn infinity plan achromatic, 10.0x / 0.30

£235.00

£195.00

Objective Kern and Sohn infinity plan achromatic, 40.0x / 0.70 (spring) OBB-A1257

Objective Kern and Sohn infinity plan achromatic, 40.0x / 0.70 (spring)

£320.00

£263.00

Phase contrast unit Kern and Sohn quintuple hole turret with 10x / 20x / 40x / 100x Infinity-PH-Plan objectives (complete set) OBB-A1237

Phase contrast unit Kern and Sohn quintuple hole turret with 10x / 20x / 40x / 100x Infinity-PH-Plan objectives (complete set)

£1,526.00

£1,218.00

Polarising unit Kern and Sohn analyser/polariser OBB-A1283

Polarising unit Kern and Sohn analyser/polariser

£299.00

£247.00

Power cord Kern and Sohn (UK) 822-903

Power cord Kern and Sohn (UK)

£94.00

£88.00

Tube Binocular Kern and Sohn OBB-A1125

Tube Binocular Kern and Sohn

£303.00

£250.00

Tube Binocular Kern and Sohn - Butterfly; Infinity OBB-A1359

Tube Binocular Kern and Sohn - Butterfly; Infinity

£393.00

£321.00

Tube Trinocular Kern and Sohn - Butterfly; Infinity OBB-A1382

Tube Trinocular Kern and Sohn - Butterfly; Infinity

£538.00

£437.00

Wolf special offer - Microscope camera Kern & Sohn ODC 825 digital, for C-mount connection, 5.1Mpix, not cooled with software included OFFER ENDS 30-04-2026 ODC825

Wolf special offer - Microscope camera Kern & Sohn ODC 825 digital, for C-mount connection, 5.1Mpix, not cooled with software included OFFER ENDS 30-04-2026

£401.00

£298.00

Kern & Sohn OBN 158

Microscope Kern and Sohn OBN 158 phase-contrast microscope, standard, trinocular head type, maximum magnification 1000X, not capable of fluorescence, halogen light source, camera not included, mechanical stage included, standard objectives 4x, PH 10x, PH 20x, PH 4x, PH 100x, suitable for education, laboratories, life sciences, cell culture, industry, veterinary, water analysis and breweries

Type:
Standard
Head type:
Trinocular
Objective type:
Infinity plan
Standard objective x 4:
Yes
Standard objective x 5:
No
Standard objective x 10:
No
Standard objective x 20:
No
Standard objective x 25:
No
Standard objective x 40:
No
Standard objective x 50:
No
Standard objective x 60:
No
Standard objective x 100:
No
Phase contrast objective x 10:
Yes
Phase contrast objective x 20:
Yes
Phase contrast objective x 40:
Yes
Fluorescence:
No
Mechanical stage:
Yes
Camera included:
No
Light source:
Halogen
Max magnification:
1000
Stand base:
Standard
Stand type:
Standard
Inversion contrast objective x 4:
No
Phase contrast objective x 4:
No
Inversion contrast objective x 10:
No
Inversion contast objective x 20:
No
Inversion contrast objective x 40:
No
Suitable for education?:
Yes
Suitable for doctors surgeries?:
Yes
Suitable for cell culture?:
Yes
Suitable for life science?:
Yes
Suitable for environmental science?:
Yes
Suitable for quality control?:
Yes
Suitable for industry?:
Yes
Suitable for laboratories?:
Yes
Suitable for material science?:
No
Suitable for water analysis?:
Yes
Suitable for breweries?:
Yes
Suitable for veterinary use?:
Yes
