Carbolite Furnaces - Tube TS312/60/450 TS3120600450-230SN

Service
Help

Part Number	Description	List Price	Offer Price
TMP-DIGOT-TF	Digital over-temperature protection Carbolite Popular Accessory	£854.00	£854.00
TP-CAI-060-0030	Work tube package Carbolite for air, inner diameter 50mm, overall diameter 60mm, includes x 730mm IAP standard length work tube, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£961.00	£961.00
TP-CGA-060-0030	Work tube package Carbolite for gas atmosphere, inner diameter 50mm, overall diameter 60mm, includes x 900mm IAP extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£2,600.00	£2,600.00
TP-CVA-060-0030	Work tube package Carbolite for vacuum, inner diameter 50mm, overall diameter 60mm, includes x 900mm IAP extended length work tube, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£4,332.00	£4,332.00
&06-CS	Cascade control Carbolite	£1,299.00	£1,299.00
&00-T2-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£502.00	£502.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T2-450H	Mounting Carbolite horizontal, for TF/TS 12/60/450	£0.00	£0.00
&00-T2-450V	Vertical stand & vertical tube support package Carbolite for TF/TS 12/60/450	£718.00	£718.00
&00-T2-450S	Vertical tube support package Carbolite for TF/TS 12/60/450 (no stand or mounting bracket included)	£247.00	£247.00

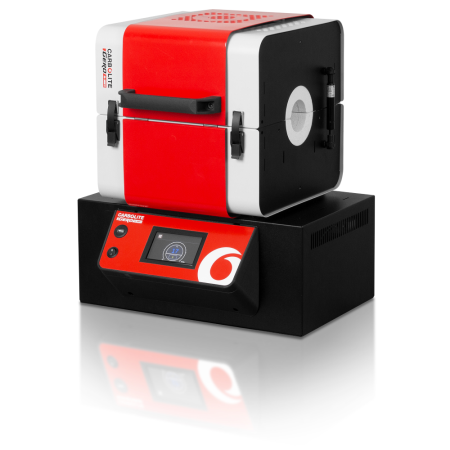

Carbolite TS312/60/450

Tube furnace Carbolite TS3 12/60/450 split tube with 3 zones, temperature range 600 to 1200°C, heated tube length 450mm, can accommodate tubes up to 60mm diameter, single phase, 230volts, 13Amps, touch screen and remote control, requires work tube to be pruchased separately

Number of zones :

Split tube :

Yes

Minimum Temp:

400

Maximum Temp:

1200

Heated tube length:

450

Maximum outer diameter of tube:

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Yes

Remote control :

Yes

Download Product Brochure

Download Product Manual
