R&L Enterprises lab jacks from Wolflabs

Product Update

Introduction
R&L Enterprises lab jacks from Wolflabs.

Features and benefits
- Manufactured to close tolerances from aluminium with stainless steel operating screw.
- The top and bottom plates are specially designed aluminium extrusion giving exceptional rigid and robust support without excessive weight.
- The labjacks are designed to be completely stable and free from rocking movements.
- All the labjacks with the exception of the 2041 and 2038 have a 10mm tapped hole in the right rear corner to take standard retort rods for which a locking nut is provided.

Product Category: Lab Jacks

Manufacturer: R&L Enterprises

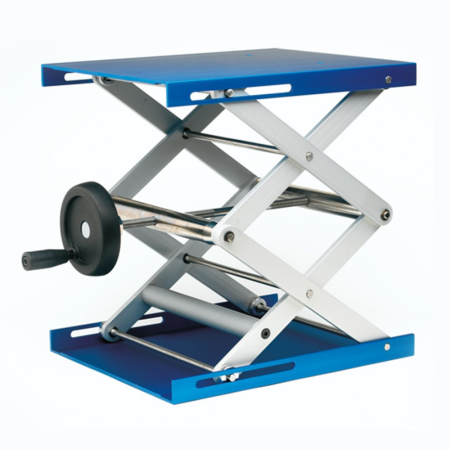

Lab Jacks R&L Enterprises



Labjack Specifications

Manufactured to close tolerances from aluminium with stainless steel operating screw. The top and bottom plates are specially designed aluminium extrusion giving exceptional rigid and robust support without excessive weight. The plates are blue anodised finish.

The labjacks are designed to be completely stable and free from rocking movements. All the labjacks with the exception of the 2041 and 2038 have a 10 mm tapped hole in the right rear corner to take standard retort rods for which a locking nut is provided. Extension plates can be fitted to the 3 largest sizes.

Technical Information

Model No

Platform Dimensions (mm)

Maximum Height (mm)

Closed Height (mm)

Gross Weight (kg)

Maximum Load Stationary (kg)

Maximum Operating Load (kg)

2041

50 x 40

78

36

0.16

20

10

2038

100 x 100

140

43

0.56

30

10

2035

150 x 150

275

60

1.4

60

25

2036

200 x 200

290

57

2.26

80

25

2040

200 x 230

290

57

2.42

80

25

2042

320 x 260

470

128

6.7

90

30
