Autoclaves Prestige Omega Series - Available Late 2009

Affordable, reliable, simple - features of a renowned product range that have cemented the Prestige Medical reputation as one of the worlds leading manufacturers of benchtop autoclaves, have been integral to the development of the Omega range of clinical autoclaves

Building on these key criteria and our awareness of the importance of an attractively styled unit that will complement the aesthetics of today's modern practice, the multi featured Omega range offers the perfect solution for safe and effective infection control.

Omega autoclaves employ a process referred to as upward displacement as pressurised steam is generated within the vessel, air is forced up and out, allowing steam to come into contact with all instrument surfaces, destroying harmful bacteria and spores.

Features

• Touch sensitive control and display panel for quick and easy use
• Fully automatic sterilizing cycle(s)
• Modern, resilient, cool touch easy to clean
• Large chamber capacity offers flexibility to sterilize a variety of instrument loads
• Lifetime heating element guarantee

Design Standards

• Medical Devices Directive (MDD 93/42/EEC
• IEC1010 Pt 1 + 2 (European electrical & product safety
• BS 3970 Pt 1 + 4 1990 (Pressure vessel only)
• EN50081-1 EN50082-1 prEN50082-2 (EMC Directive)
• DIN 58946 Pt 8 (microbiological performance
• UL544 (USA)
• CSA (Canada)

Prestige Century 3 Autoclave

The new C3 Advance autoclave provides the most effective and affordable means available for complying with all the guidelines for instrument sterilisation.

• Vacuum and Non-Vacuum models
• 16 and 22 litre capacity
• Single use water system complies with HTM2031
• Fast vacuum cycles to EN13060 ensures compliance to European Standards

The triple pulse vacuum system ensures the safe and effective sterilization of all types of instrument load, for all healthcare applications.

• Unwrapped solid and hollow instruments
• Single or multi-wrapped loads
• Single or double pouched instruments
• Linen loads

Features

C3 Advance autoclaves incorporate a number of key features and benefits designed to make instrument sterilization easier and more efficient than ever before.

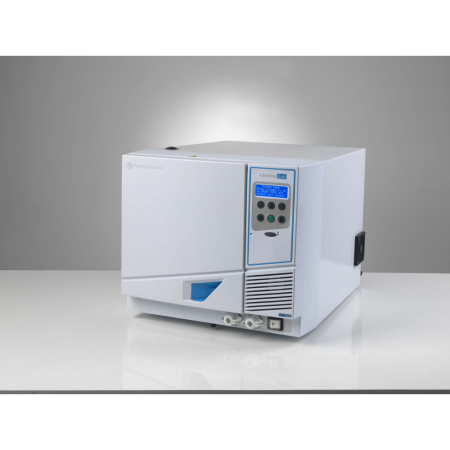

Autoclaves Prestige C3 Advance Series

Features

• superior quality Class B autoclave complies with BSEN13060
• faster vacuum cycles less time to wait for instruments
• large 16 or 22 litre 6 tray chamber to match all application demands
• clean water system removes debris every cycle thus reducing wear on the autoclave and instruments
• two years unlimited usage warranty* reduces cost of ownership
• optional silent printer, data logger or PC link cycle recording flexibility
• contemporary styling enhances the surgery environment and will complement various colour schemes
• compact design will fit on narrow work surfaces
• manufactured in the UK by Prestige Medical Ltd proven reliability

advanced systems
C3 Advance is built with a lightweight, rigid frame for maximum endurance and reliability.
To comply with medical clean water guidelines, the unit operates a single use water system and the direct water feed / drain option saves time and money, without operator intervention.

Other features include easy access air filter for effortless cleaning and replacement, as well as a thermally managed airflow to reduce unit temperatures and maximise efficiency. The delayed start option allows the operator to pre-set a cycle start time.

advanced reliability
Designed and manufactured in accordance with BS EN13060:2004 all units are fully tested and validated before being dispatched from the factory. Each C3 Advance has an individual performance test certificate and certificate of compliance.

recording options
C3 Advance offers complete flexibility for data capture. The options include:
• external printer
• flash card and data logger for capture of over 40,000 cycles
• direct connection to a PC

Direct connection to the PC will not only archive the data but will also provide useful data for use during routine service and reminders of routine checks. The flash card will allow for the paperless storage of cycle data

furniture options
The pouch rack, has a maximum of 10 pouches and the pouch trays have a maximum of 12 pouches each. In both cases the loads should not exceed 2kg. Pouched loads above 2kg are not approved in this machine.
Unique System for direct safe transfer from washer disinfectors.
The C3 Advance has unique automatic load sensing programmes that provides optimum drying for any specified load.
Rack to hold trays with lids.

vacuum autoclave Type B
The vacuum unit has a pump removing the air inside the chamber. All Type B vacuum cycles on an autoclave use the triple fractionated pulse. The air is removed 3 times before steam injection ensuring a perfect sterilization of linen, wrapped, hollow or solid items.

non vacuum autoclave Type N
The air inside the chamber is normally removed by thermodynamic air displacement; the steam produced by the boiler pushes the air out of the chamber. The system does not allow the sterilization of pouches and you can only sterilize solid instruments.

Technical Specifications

	16 litre	22 litre
overall product width	480mm	480mm
overall product height	410mm	410mm
overall product length	440mm	610mm
unpacked weight	35kg (Max)	37Kg (Max)
chamber diameter	250mm	250mm
chamber length	330mm	430mm
tray capacity	6@282mm	4@282mm plus 2@398mm
operating pressure	2.05bar (gauge)	2.05bar (gauge)
voltage/wattage	230v/2200W	230v/2200W
frequency	50 - 60 Hz	50 - 60 Hz

Autoclaves - Portable - Prestige

The appliance for science - professional, safe and affordable.   The requirement for schools and laboratories to sterilize liquids or media requires a unique design of sterilizer.  The Classic Media is a portable machine, fully-automatic and with a simple, one touch operation. Ideally suitable for a variety of laboratory processes, it has a unique built-in safety mechanism that prevents the unit being opened until the temperature inside has fallen to a safe level.  9 or 12 litres capacity models available. Technical Information Model: 210047 210048 Max width - overall (mm) 340 340 Max height - overall (mm) 335 420 Max net weight 3.8kg 4.3kg Chamber diameter (mm) 210 210 Chamber height  (mm) 228 318 Chamber capacity (l) 9 12 Max instrument length  (mm) 200 290 Max load weight (unwrapped) 3kg 4kg Sterilizing temperature 121°C 121°C Min sterilizing time (min) 22 22 Operating pressure 1.05 bar 1.05 bar Voltage 230v 230v Wattage 1500w 1500w Frequency 50-60Hz 50-60Hz



Autoclaves - Portable - Prestige

The Prestige Medical Classic offers the most cost effective solution for the world's preferred method of sterilization and with more than 1 million sold worldwide, you can rely on our reputation for quality and performance. Reliable and trusted worldwide Designed to give you the most cost effective sterilization solution with a wide choice of models and accessories that are guaranteed to meet your needs. Steam sterilization, or autoclaving, is the preferred method of eliminating the risk of cross infection through contaminated instruments. It is the only method recommended throughout the world by healthcare professionals including the World Health Organisation (WHO) and the Centre for Disease Control (CDC). Technical Information Model: 210001 210002 210004 210134 Max width - overall (mm) 340 340 340 340 Max height - overall (mm) 335 420 420 335 Max net weight 4.0kg 4.8kg 4.8kg 5.4kg Chamber diameter (mm) 210 210 210 210 Chamber height  (mm) 236 328 328 236 Chamber capacity (l) 9 12 12 9 Max instrument length  (mm) 228 290 290 228 Max load weight 3kg 4kg 4kg 3kg Sterilizing temperature 126°C 126°C 126°C 134°C Min sterilizing time (min) 11 11 11 3 Cycle time - normal (min) 22 22 22 20 Operating pressure 1.4 bar 1.4 bar 1.4 bar 2.2 bar Voltage 230v 230v 230v 230v Wattage 1500w 1500w 1500w 1500w Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz Temperature & Pressure Gauges     Furniture 219708 219720 219720 219708

Omega Autoclave
Model Options Model Specifications	: Modern, resilient, cool touch, easy clean body. 10 litre capacity Light, compact and portable. Automatic operating cycle with preset control of time and temperature Large, touch sensitive control and display panel for easy operation. Inexpensive & cost effective Fully integrated gauges, cycle counter, and electromechanical interlock* Multiple safety features, electronic circuitry and pressure vessel. Fast 134ºC / 3.5 minute cycle for rapid turnaround of instruments* 121ºC / 16 minute cycle suitable for delicate instruments* Totally reliable - Lifetime Heating Element Guarantee Complies with international standards



Building on the ground breaking tradition set by the Series 2100, the worlds most popular autoclave, the innovative OMEGA range of autoclaves demonstrates Prestige Medical's commitment to supply the widest possible range of affordable solutions for effective infection control.

The Omega range offers the user a higher degree of specification than featured in the 2100 Classic range of autoclaves. In particular, the fast 134°C / 3.5 minute sterilizing cycle allows the rapid turnaround of instruments, imperative in a busy practice.



2100 CLASSIC AUTOCLAVE

MODEL SPECIFICATIONS

	Standard........................			Extended.........................			Super Ext'
	210001	210008	210006	210002	210024	210007	210030
	210011	210025	210004			210034*
Chamber capacity:	9 ltr	9 ltr	9 ltr	12 ltr	12 ltr	12 ltr	16.8 ltr
Max width - overall:	340mm	340mm	340mm	340mm	340mm	340mm	340mm
Max height - overall:	335mm	335mm	335mm	420mm	420mm	420mm	582mm
Max nett weight:	4.5Kg	4.5kg	4.5Kg	4.5Kg	4.5Kg	4.5kg	4.5kg
Chamber diameter:	210mm	210mm	210mm	210mm	210mm	210mm	210mm
Chamber height:	236mm	236mm	236mm	328mm	328mm	328mm	484mm
Max inst' length:	228mm	228mm	228mm	290mm	290mm	290mm	460mm
Max load weight:	3kg	3kg	3kg	4kg	4kg	4kg	4kg
Sterilizing temp':	126°C	121°C	121°C	126°C	121±2°C	121°C	126°C
Min sterilizing time:	11mins	16mins	16mins	11mins	22mins	16mins	11mins
Cycle time - nominal:	22mins	26mins	26mins	22mins	N/A	26mins	25mins
Operating pressure:	1.4bar	1.05bar	1.05bar	1.4bar	1.05bar	1.05bar	1.4bar
Voltage:	230v	230v	120v	230v	230v	120v	230v*
Wattage:	1500w	1500w	1200w	1500w	1500w	1200w	1500w*
Frequency:	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz
*210034 - 120v/1200w

Classic 2100 has been designed to comply in part or full with the following standards:
IEC601: Electrical and product safety standard.
DIN 58946: Part 8. Type testing for microbiological performance.
EMC: Electro Magnetic Compatibility. EN 50081 - 1, EN 50082 - 1 and prEN 50082 - 2 are generic standards relating to EMC.
BS 3970 Part 4: British Standard for autoclaves. Pressure vessel complies.
ESCHLE: Electrical Safety Code for Hospital Laboratory Equipment (UK).
UL 544: Underwriters Laboratory (America) covering electrical and product safety.
CSA Class 8721 01: Canadian Standards Association covering electrical and product safety

2100 CLASSIC AUTOCLAVE Model Specifications

	121/134	Uniclave	Uniclave	Media
		Omega 2	120v
	220200/1	220210/1	220510/1	220140
		240200/1
Chamber capacity:	10 ltr	10 ltr	10 ltr	10 ltr
Max width - overall:	350mm	350mm	350mm	350mm
Max height - overall:	420mm	420mm	420mm	420mm
Max nett weight:	9.2Kg	9.2Kg	9.2Kg	9.2Kg
Chamber diameter:	210mm	210mm	210mm	210mm
Chamber height:	270mm	270mm	270mm	270mm
Max inst' length:	290mm	290mm	290mm	290mm
Max load weight:	4kg	4kg	4kg	4kg
Sterilizing temperature:	121°C/134°C	134°C	134°C	121±2°C
Min sterilizing time:	16.0/3.5mins	3.5mins	3.5mins	22mins
Cycle time - nominal:	28/20mins	20 mins	20 mins	N/A
Operating pressure:	2.05/1.05 bar	2.05 bar	2.05 bar	1.05bar
Voltage:	220-240v	220-240v	120v	220-240v
Wattage:	1500w	1500w	1200w	1500w
Frequency:	50-60Hz	50-60Hz	50-60Hz	50-60Hz

Fuses: Located on the rear plate and in power unit (FS3) are not user replaceable items. Only qualified personnel should attempt to change them.
Rear plate fuses (220 - 240 v models only) F7.5A 32 x 6.3mm, ceramic sand filled, FS3 on 220 - 240 v model power unit pcb, T250MA, to IEC 127.
Mains plug top fuse (user replaceable), F13A to BS 1362 UK ONLY.
All models are continuously rated for intermittent loading.
Water: All models are manually charged. Use only distilled or de-ionised water, minimum amount per cycle 250ml. Do not fill to more than 0.75 litres at any one time or above the indicator ring in chamber.
Body: Deep drawn aluminium 3103 - 0 Lid: Gravity cast aluminium LM25 TF

Omega has been designed to comply in part or full with the following standards:
IEC1010 Parts 1 and 2: The new European standard for electrical and product safety Part 2 (draft only) relates specifically to the safety of bench top autoclaves (steam sterilizers).
DIN 58946: Part 8. Type testing for microbiological performance.
EMC: Electro Magnetic Compatibility. EN 50081 - 1, EN 50082 - 1 and prEN 50082 - 2 are generic standards relating to EMC.
BS 3970 Parts 1 and 4: Part 1 is the British Standard for autoclaves. Part 4 relates specifically to bench top autoclaves. Both parts cover electrical safety, product safety, interlocks and performance.
UL 544: Underwriters Laboratory (America) covering electrical and product safety.
CSA Class 8721 01: Canadian Standards Association covering electrical and product safety.
Approvals Obtained: IEC 1010 Part 1; EMC - EN5008 - 1, EN 50082 - 1, pr EN 50082 - 2; DIN 58946 - Part 8, BS3970 Part 4 - vessel only; ESCHLE - UK Electrical Hospital Standards.

2100 CLASSIC AUTOCLAVE Model options

• Omega 2 - 134ºC for 3.5 minutes.
• Omega 121/134 - 134ºC for 3.5 minutes and 121ºC for 16 minutes.
• Omega Uniclave - 134ºC for 3.5 minutes.

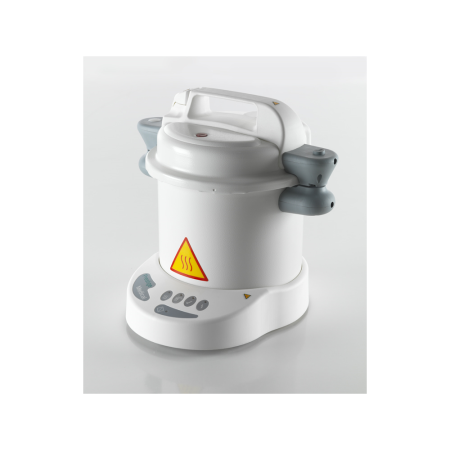

• Omega Media - 121°C ±2°C for 22 minutes
• Omega CJD - 134°C for 18 minutes
• Internal furniture options for: -
  General Medical,
  Dental,
  Chiropody,
  Tattooing,
  Body Piercing,
  Veterinary and Laboratory
• 230 volt or 120 volt options.
  (121ºC option only on certain models, 120v models - 121ºC only)

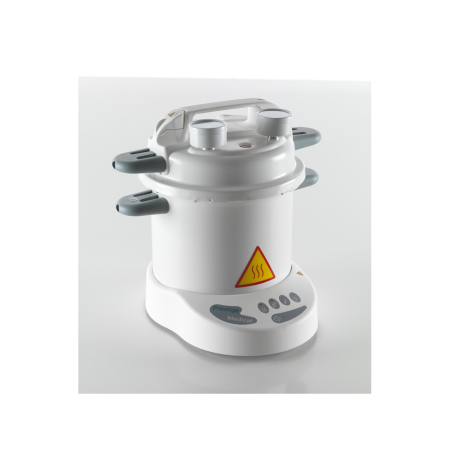

Prestige 2100 Classic Autoclave

The 2100 Classic offers the most cost effective solution for the world's preferred method of sterilization.

Recommendation
Steam sterilization, or autoclaving, is the preferred method of eliminating the risk of cross infection through contaminated instruments and the only one recommended throughout the world by healthcare professionals including the W.H.O (World Health Organisation) and C.D.C (Centre for Disease Control).

Evolution
Stylish aesthetics, together with a host of enhanced features, build on the successful attributes of the original Series 2100 range, to ensure the 2100 'Classic' perfectly complements today's modern clinics and the exacting needs of the healthcare professional.

Assurance
Prestige Medical, as an ISO 9001-2000 / EN13485 accredited company ensures all products including the 2100 Classic have been designed to the latest international standards for safety and performance and are fully CE marked to the Medical Devices Directive 93/42/EEC.
Classic 2100 has been designed to comply in part or full with the following standards:

IEC 601: Electrical and product safety standard.

DIN 58946: Part 8.Type testing for microbiological performance.

EMC: Electro Magnetic Compatibility. EN 50081 - 1, EN 50082 - 1 and prEN 50082 - 2 are generic standards relating to EMC.




2100 CLASSIC AUTOCLAVE MODEL OPTIONS

Standard - 9 litre 126ºC for 11 minutes or 121ºC for 16 minutes. Standard 'Plus' with pressure/temperature gauges - 9 litre 126ºC for 11 minutes or 121ºC for 16 minutes. Extended - 12 litre 126ºC for 11 minutes or 121ºC for 16 minutes. Extended 'Plus' with pressure/temperature gauges - 12 litre 126ºC for 11 minutes. Extended 'Plus' - Media with thermal jacket, pressure/temperature gauges - 12 litre 121±2ºC for 22 minutes. Super Extended - 16.8 litre 126ºC for 11 minutes. Internal furniture options for: - General Medical, Dental, Chiropody, Tattooing, Body Piercing, Veterinary Laboratory 230 volt or 120 volt options (121ºC option only on certain models, 120v models - 121ºC only)

Prestige 2100 Classic   Accessories

Item	Part number
Autoclave cord set - UK	219258
Autoclave cord set - Euro	219297
Autoclave cord set - UL	219299
Furniture kit 1 small container & tray	219266
'V' support
lifting device
Furniture kit 2large instrument container	219267
'V' support
Dental Furniture kit
instrument cassette x 3	219265
cassette rack
lifting device
Small instrument container	219292
Large instrument container	219296
Extra Large instrument container	219509
Instrument tray	219293
Instrument cassette	219291
Cassette rack (not for Omega models)	219290
Lifting device	219294
'V' support - for use with containers	219295
Sealing Gasket - Green	219500
Sealing Gasket - Blue (Series 2000 only)	219216
TST indicator strips:
121°C / 15 mins	219276
126°C / 10 mins	219277

Century 2 Autoclave

Features and Benefits Model sizes and extras Model Options Model Specifications Accessories

The new Century 2 autoclave places special emphasis on the requirement for exceptional performance and style.

Building on the innovations including the unique door design, first seen in the highly successful Century 2100 range of autoclaves, the new Century 2 reflects the trend towards the stylish, clean aesthetics of today's modern dental practices. By successfully blending clinical white with the cool tones of mint green, Century 2 can be considered to be one of today's best, if not the best, looking autoclave currently available.

In terms of performance, the new compact 11 litre three tray and 16 litre six tray models have a short rear case, making them the ideal autoclave for placing on the smaller work surfaces found in many practices. In addition these models now incorporate one of the fastest vacuum sterilizing cycles on the market, a pre-vacuum, 134°C cycle, suitable for sterilizing all instruments and dental hand pieces in under 12 minutes (11 litre models).

Along with the added benefits of a simple to use control and display panel and state-of-the-art electronic control systems, Century 2 provides the consistent reliability and flexibility, demanded by today's dental practitioner.



Century 2 Autoclave

Choice of model sizes

To meet a wide range of specific needs, new Century 2 is available in a choice of sizes.

The new 11 litre, three tray system is ideal for smaller practices where fewer instruments need to be sterilized.

Where larger quantities of instruments are to be sterilized, a six tray system in either 16, 22 or 30 litre* sizes is available. *suitable for instruments up to 600mm

Optional printer
When it is essential to have a printed record of each sterilizing cycle, Century 2 offers the option of an integral printer. The printer module is available either factory fitted at the point of purchase or can be easily retro-fitted by the user at a later date.

Guaranteed peace of mind
The one-piece stainless steel chamber has a full 10 year guarantee whilst the boiler carries a lifetime guarantee. All other components have a 1 year guarantee from date of purchase.

Four Automatic Cycles

Vacuum cycle for pouched (wrapped) or unpouched instruments, with drying.

Vacuum cycle for unpouched instruments, no drying.

Non-vacuum cycle for unpouched instruments, with drying.

Non-vacuum cycle for unpouched instruments, no drying.

Century 2 Autoclave

MODEL SPECIFICATIONS

Chamber Capacities	11 litre	16 litre	22 litre	30 litre
Overall product width	480mm	480mm	480mm	480mm
Overall product height	410mm	410mm	410mm	410mm
Overall product length	440mm	560mm	560mm	660mm
Net (gross) weight - vacuum	41kg (44.5)	40kg (45.5)	43kg (48.5)	n/a
- non-vacuum	37kg (41.5)	35kg (40.5)	37kg (42.5)	41kg (46.5)
Chamber diameter	210mm	250mm	250mm	250mm
Chamber lengths	330mm	330mm	430mm	600mm
Tray capacity/length	3@282mm	6@282mm	6@430mm	6@600mm
Max instrument length	300mm	300mm	430mm	600mm
Max instrument load - vacuum	1kg (pouched)	1kg (pouched)	2kg (pouched)	n/a
	2kg (unpouched)	2kg (unpouched)	6kg (unpouched)	n/a
- non-vacuum	2kg (unpouched)	2kg (unpouched)	6kg (unpouched)	6 kg (unpouched)
Sterilizing temperature	134°C	134°C	121/134°C	121/134°C
Sterilizing time (minimum)	3mins	3mins	15/3mins	15/3mins
Cycles - vacuum	4	3	6	n/a
- non-vacuum	2	2	4	4
Operating pressure	2.05bar	2.05bar	1.05/2.05bar	1.05/2.05bar
Voltage/wattage - vacuum	230v/2200w	230v/2200w	230v/2200w	n/a
- non-vacuum	230v/2200w	230v/2200w	230v/2200w	230v/2200w
			110v/1500w	110v/1500w
Frequency - vacuum	50Hz	50Hz	50Hz	n/a
- non-vacuum	50 - 60Hz	50 - 60Hz	50 - 60Hz	50 - 60Hz
Note: Please refer to price list for details of complete model specifications.

Century 2 has been designed to comply with the following standards

Medical Devices Directive (MDD 93/42/EEC)
Electro Magnetic Compatibility Directive
European Sterilizer Standard (Draft prEN13060)
Pressure vessel to American Society of Mechanical Engineers (ASME)
Section 8
BS EN 61010 Parts 1/2
UL/CSA 3101(American/Canadian) covering electrical and product safety



Autoclaves Century 2

Model options

Vacuum models

Century 2 uses a powerful vacuum pump to ensure the removal of all the air from within the chamber prior to sterilization.

In the absence of air, steam is able to reach all instrument surfaces, including inside the narrow lumens of hollow instruments such as complex dental handpieces and scopes. The use of a vacuum autoclave is also imperative if instrument pouches or bags are to be used.

On completion of the selected sterilizing cycle, the Century 2's automatic, pulsed, vacuum assisted drying phase, ensures instruments are perfectly dry.

As well as leaving instruments ready for immediate use, post-vacuum drying helps keep valuable instruments in good condition and prolongs their life.

Vacuum model/cycle options

11 litre three tray system

16 litre six tray system

22 litre six tray system*

*There is also a choice of sterilizing temperature - either 134°C for 3 mins or 121°C for 15 mins

Non-vacuum models

Century 2 utilises a process known as downward displacement - as pressurised steam enters the chamber, air is forced out, allowing the steam to come into contact with all instrument surfaces, destroying harmful bacteria and spores.
A cycle which includes automatic drying can be selected. As well as leaving instruments ready for immediate use, this helps keep valuable instruments in good condition and prolongs their life.
When an extremely fast turnaround of instruments is required, selecting the standard non-vacuum cycle, without drying, can offer a total cycle time of 13 minutes.
Century 2 non-vacuum autoclaves are particularly suitable for applications where predominantly solid instruments are used and a rapid turnaround is imperative.

Non-vacuum model/cycle options

11 litre three tray system

16 litre six tray system

22 litre six tray system*

30 litre six tray system*

*There is also a choice of sterilizing temperature - either 134°C for 3 mins or 121°C for 15 mins

Century 2 Autoclave

Choice of model sizes



To meet a wide range of specific needs, new Century 2 is available in a choice of sizes.

The new 11 litre, three tray system is ideal for smaller practices where fewer instruments need to be sterilized.

Where larger quantities of instruments are to be sterilized, a six tray system in either 16, 22 or 30 litre* sizes is available. *suitable for instruments up to 600mm

Optional printer
When it is essential to have a printed record of each sterilizing cycle, Century 2 offers the option of an integral printer. The printer module is available either factory fitted at the point of purchase or can be easily retro-fitted by the user at a later date.

Guaranteed peace of mind
The one-piece stainless steel chamber has a full 10 year guarantee whilst the boiler carries a lifetime guarantee. All other components have a 1 year guarantee from date of purchase.

Four Automatic Cycles

Vacuum cycle for pouched (wrapped) or unpouched instruments, with drying.

Vacuum cycle for unpouched instruments, no drying.

Non-vacuum cycle for unpouched instruments, with drying.

Non-vacuum cycle for unpouched instruments, no drying.

2100 CLASSIC AUTOCLAVE

Features and benefits

FEATURES AND BENEFITS Focusing on the attributes of both form and function, Century2 challenges traditional autoclave design with a number of key features and benefits designed to make instrument sterilization easier and more efficient than ever before. Unique door design Century 2's unique door design* is as quick and easy to use as that on a microwave oven - it opens at the touch of a button and can be pushed closed using one finger, locking automatically. *International Patent No. PCT/GB97/02586 Control and display panel Selecting the correct sterilizing cycle for your instruments couldn't be easier. The touch sensitive control panel is well laid out and simple to operate - just press one button to select the type of cycle and another to start it. The clear, concise, graphical display lets you know in an instant the actual progress of the selected sterilizing cycle.



Century 2 Autoclave Accessories

	Part number
Instrument tray
- 282mm tray - stainless steel	279006
- 430mm tray - stainless steel	279005
- 600mm tray - aluminium	279004
Instrument bag / pouch rack
- 282mm rack - stainless steel	279009
- 600mm rack - stainless steel	279008
Instrument tray / rack carrier
- 22L / 30L - 6 tray capacity-stainless steel	279002
- 22L / 30L - 3 tray capacity-stainless steel	279228
- 16L - 6 tray capacity-stainless steel	279230
- 16L - 3 tray capacity-stainless steel	279229
- 11L - 3 tray capacity stainless steel	279238
Instrument tray / rack lifter
- Stainless steel	279007
Printer accessories
- Replacement roll for Printer 279000	279001
- Replacement ribbon for Printer 279000	279221
Sealing gasket
- 210mm chamber	279010
- 250mm chamber	279011
TST sterilizing indicator strips
- 121°C & 134°C Dual strip	259277
